4–3 Installing the Scanner
Before installing the scanner, review the following:
•
Determine optimum position of the scanner relative to the bar
code labels to be read. Refer to Chapter 3 for positioning
information.
•
Allow adequate clearance at back of scanner for cables. See
Figure 4.1.
•
Securely mount scanner to a rigid surface to ensure proper
operation of the scanner.
Note: If using the mounting bracket, refer to the next page.
The thickness of the mounting surface determines the length of the
#10-32 screws required. Select a screw length no greater than the
thickness of the mounting surface plus the thickness of the washers
plus
#@8 inches (9.5 mm ).
Note: The 3 screws supplied with the scanner may not be suitable
for all applications. Add washers or use longer screws as required.
!
ATTENTION: Do not use screws that extend more
than
3
/8
inch (9.5 mm) into the scanner. Screws which
extend more than 3 /
8
inch (9.5 mm) beyond the
mounting surface may
damage the threads.

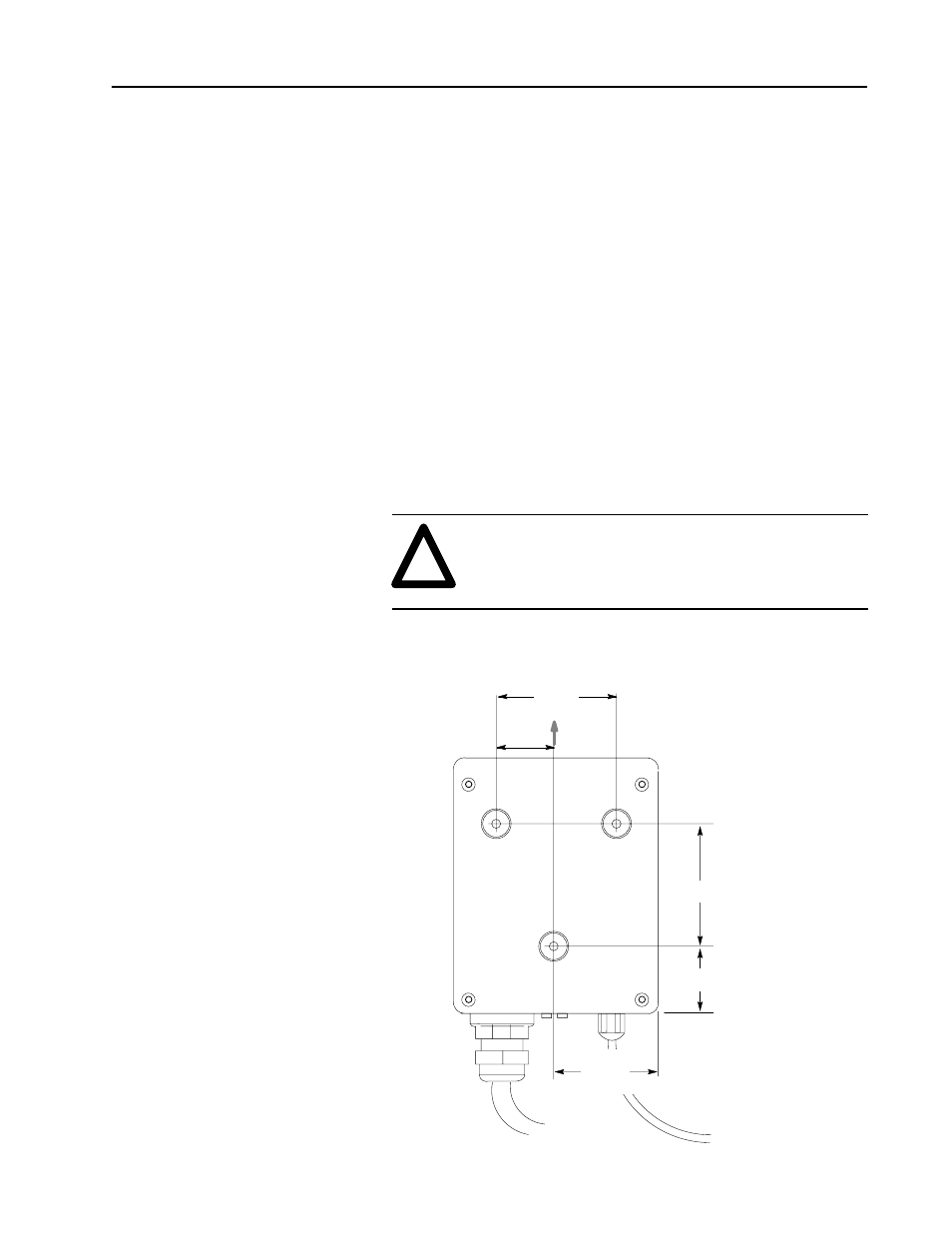

Figure 4.2
Mounting Dimensions (Nominal)
1.25 in
(32 mm)
1.9 in
(48 mm)
2.5 in
(64 mm)
2.0 in
(51 mm)
1.3 in
(33 mm)
Mounting holes are threaded
for #10–32 screws.
Midpoint of Scan Line
Mounting Scanner
