Adapter Kit for PanelView 1200/1200e Touch Screen Terminal Cutout 5
Publication 2711P-IN014D-EN-P - July 2007
Attach the Cutout Adapter Plate to the Panel
Follow these steps to attach the cutout adapter plate to the panel.

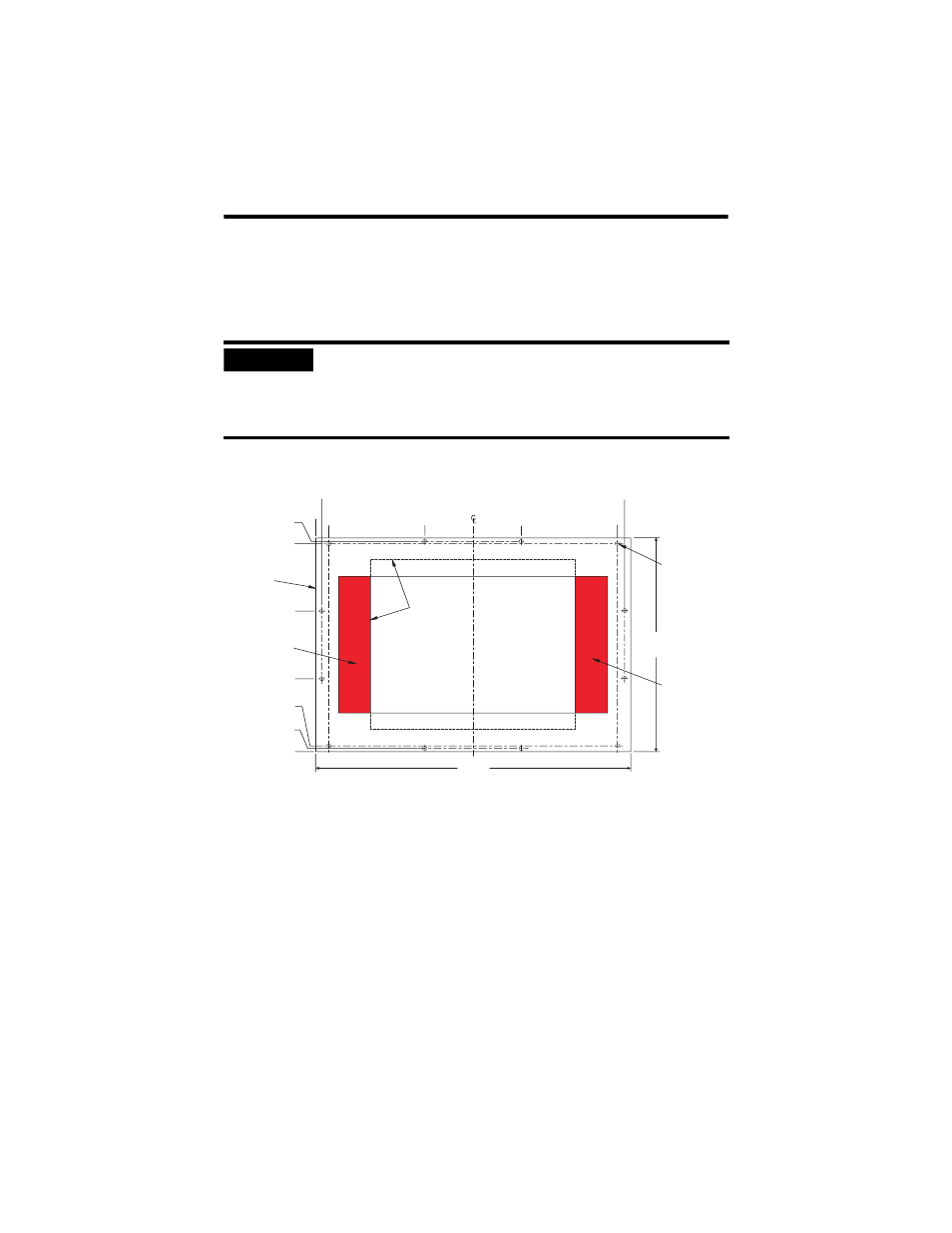

1. Align the cutout adapter template to the desired position.
Dimensions are given in inches (mm).
2. Using the cutout adapter template, mark the cutout areas that require
cutting, and where required, mark additional stud holes.
3. Cut the excess material from the sides of the existing PanelView 1200/1200e
terminal cutout and file clean the new cutout edges.
4. If required, drill the additional 7/32 inch holes for the cutout adapter studs.
5. Push the cutout adapter plate onto the panel until the gasket material is flush
with the front of the panel.
IMPORTANT
The cutout adapter plate for the new terminal does not fit exactly over the
existing PanelView 1200/1200e terminal cutout and stud-mounts. The new
terminal is wider than the 1200/1200e terminal and requires a greater width in
the panel, so modifications are required. Determine how the new terminal is to
be placed: side left, side right, or centered.
14.34
(364)
5.19
(132)
9.49
(241)
13.84
(352)
13.49
(343)
Adapter
Plate Stud
New
Cutout Required
14.69
(373)
Existing
1200/1200e
Cutout
0.35 (3)
0.84 (21)
0
13.20
(335)
13.09
(332.5)
8.90
(226)
4.60
(117)
0.40
(10)
0.29 (7)
0
New 1000/1000e
Cutout Required
New Cutout Adapter
Bezel Line
