About the Cutout Adapter Plate
The cutout adapter plate is designed to fit into the existing cutout and stud-mounts
for the PanelView 1200/1200e terminals with minor modifications. See the cutout
assembly directions.
Dimensions are given in inches (mm).

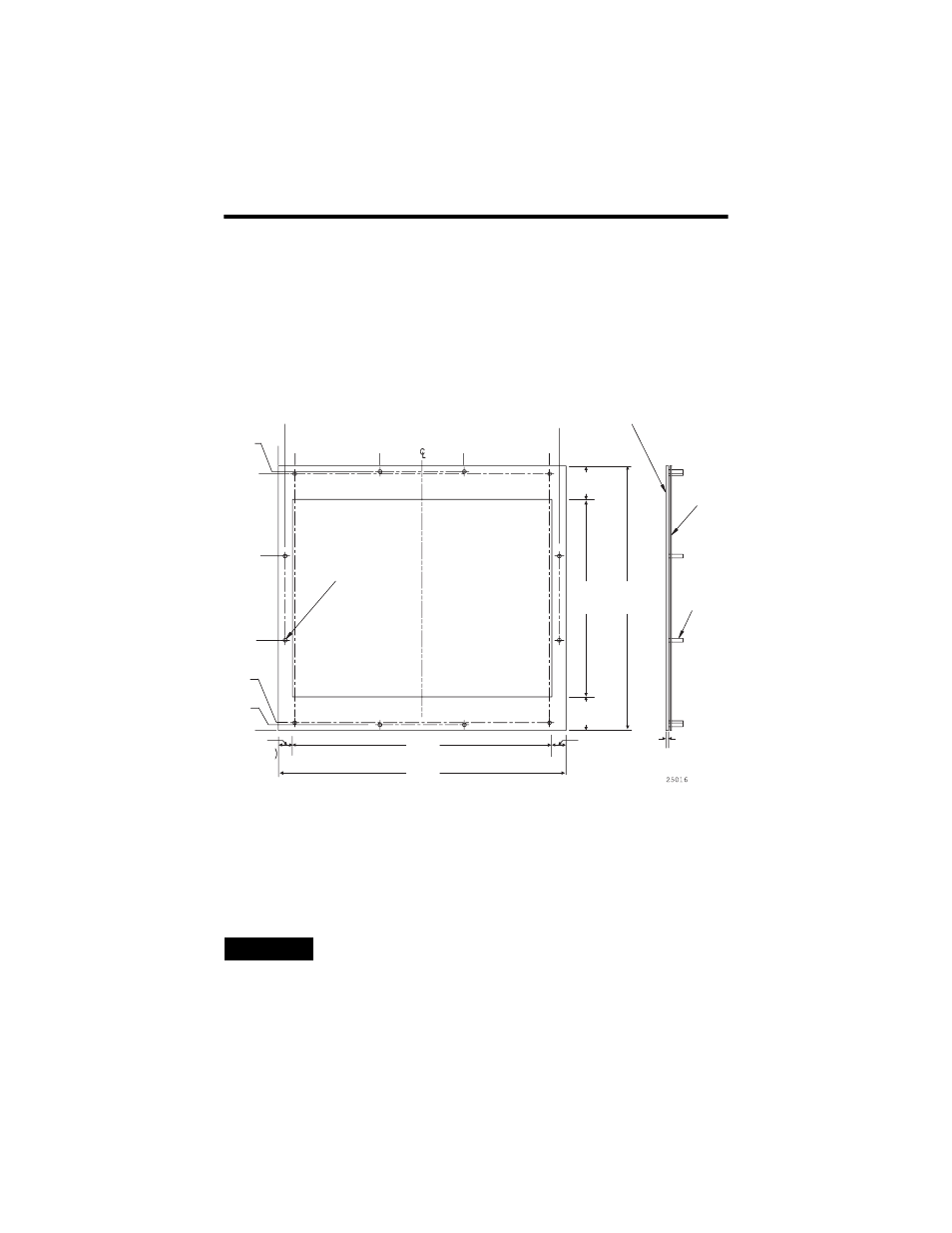

Front and Side Views
Parts List
The cutout adapter kit includes:
•
one touch screen cutout adapter plate with gasket and ball bearing spacers.
•
12, #10-32 nuts with flat washers.
TIP
The adapter plate cutout template for the new terminal is shipped with the
new terminal and is not included in this kit.
5.19
(132)
9.49
(241)
0.84
(21)
0.35 (3)
13.20
(335)
13.09
(332.5)
8.90
(226)
4.60
(117)
0.40 (10)
0.29 (7)
0.72
(18)
0
0.13 (3)
13.25
(337)
14.69
(373)
0.72
(18)
10.07
(255)
13.49
(343)
Gasket
#10-32
Mounting
Studs
14.34
(364)
13.84
(352)
Front Bezel
#10-32
Mounting
Studs
TYP 12 PLS.
0
1.71
(44)
