Minimum Spacing
Maintain spacing from enclosure walls, wireways, and adjacent equipment.
Allow 50 mm (2 in.) of space on all sides, as shown. This provides ventilation
and electrical isolation.
System Dimensions

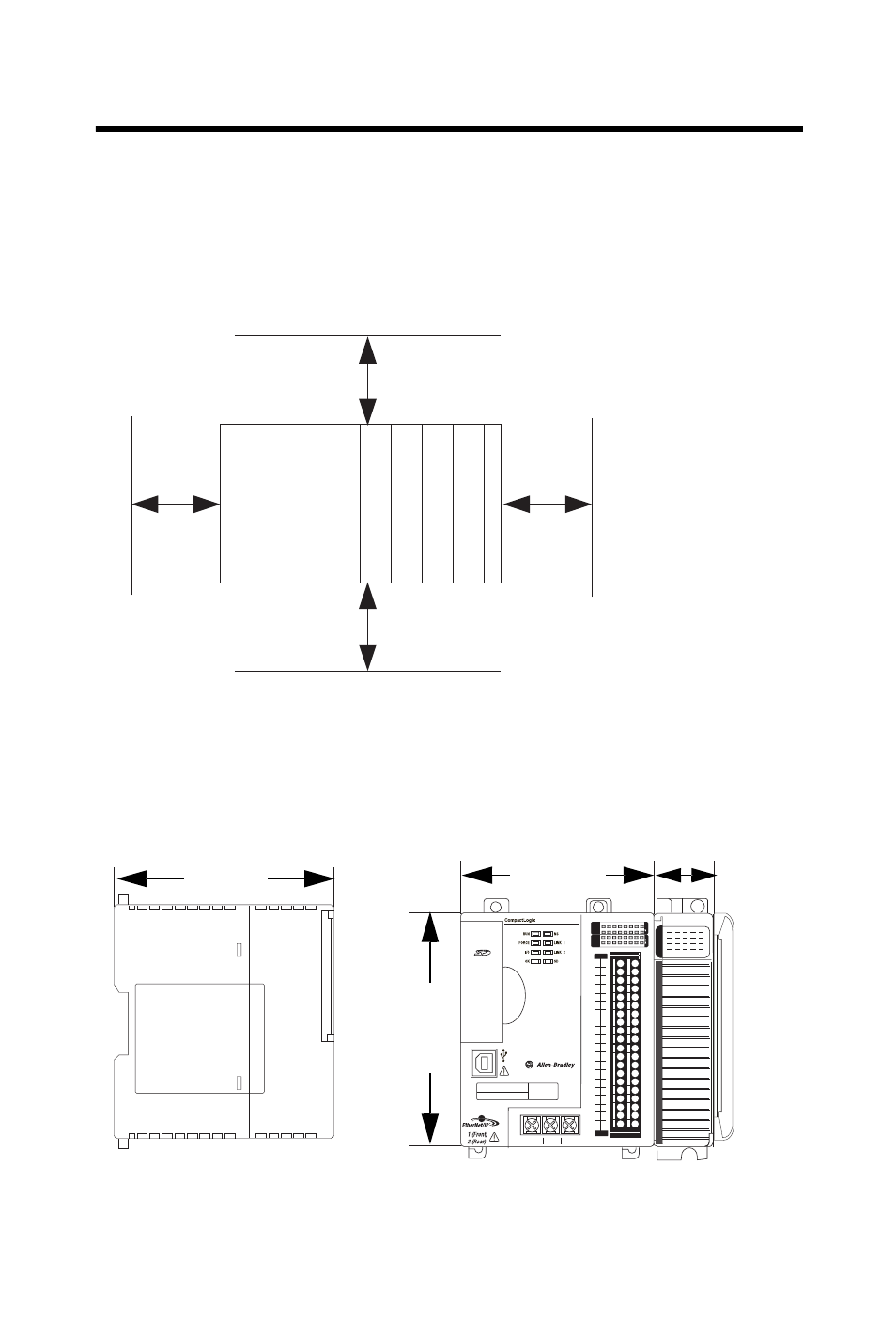

This graphic shows system dimensions for the 1769-L24ER-QB1B controller.
Bottom
Top
Co
m
pa
ctL
ogix
5370
L2
Co
ntr
oll
er wi
th
Emb
edde
d P
ow
er
Sup
ply and I/O P
oin
ts
End C
ap
50 mm
(2 in.)
50 mm
(2 in.)
50 mm
(2 in.)
50 mm
(2 in.)
Side Side
Co
m
pa
ct
I/
O M
od
ul
e
Co
m
pa
ct
I/
O M
od
ul
e
Co
m
pa
ct
I/
O M
od
ul
e
Co
m
pa
ct
I/
O M
od
ul
e
00:00:BC:2E:69:F6
L24ER
0 1 2 3 4 5 6 7
8 9 10 11 12 13 14 15
0 1 2 3 4 5 6 7
8 9 10 11 12 13 14 15
DC INPUT 24VDC SINK\ SOURCE
24VDC SOURCE OUTPUT DC
+24VDC COM FG
00
01
02
03
04
05
06
07
NC
+V
00
01
02
03
04
05
06
07
COM
0
COM
0
08
09
10
11
12
13
14
15
NC
+V
08
09
10
11
12
13
14
15
COM
1
COM
1
DC IN
DC OUT
QB1B
118.00 mm
(4.65 in.)
115.00 mm
(4.53 in.)
35.00 mm (1.38 in.)
105.00 mm
(4.13 in.)
