Installing the 1788-cn2ff – Rockwell Automation 1788-CN2FF ControlNet to Foundation Fieldbus H1 Linking Device Installation Instructions User Manual
Page 10

10 ControlNet-to-Foundation Fieldbus H1 Linking Device
Publication 1788-IN051D-EN-P - February 2004
Installing the 1788-CN2FF
The CN2FF has a rugged, simple clip for mounting reliably on a standard
35mm DIN rail. Follow these steps to mount the module onto a DIN rail.

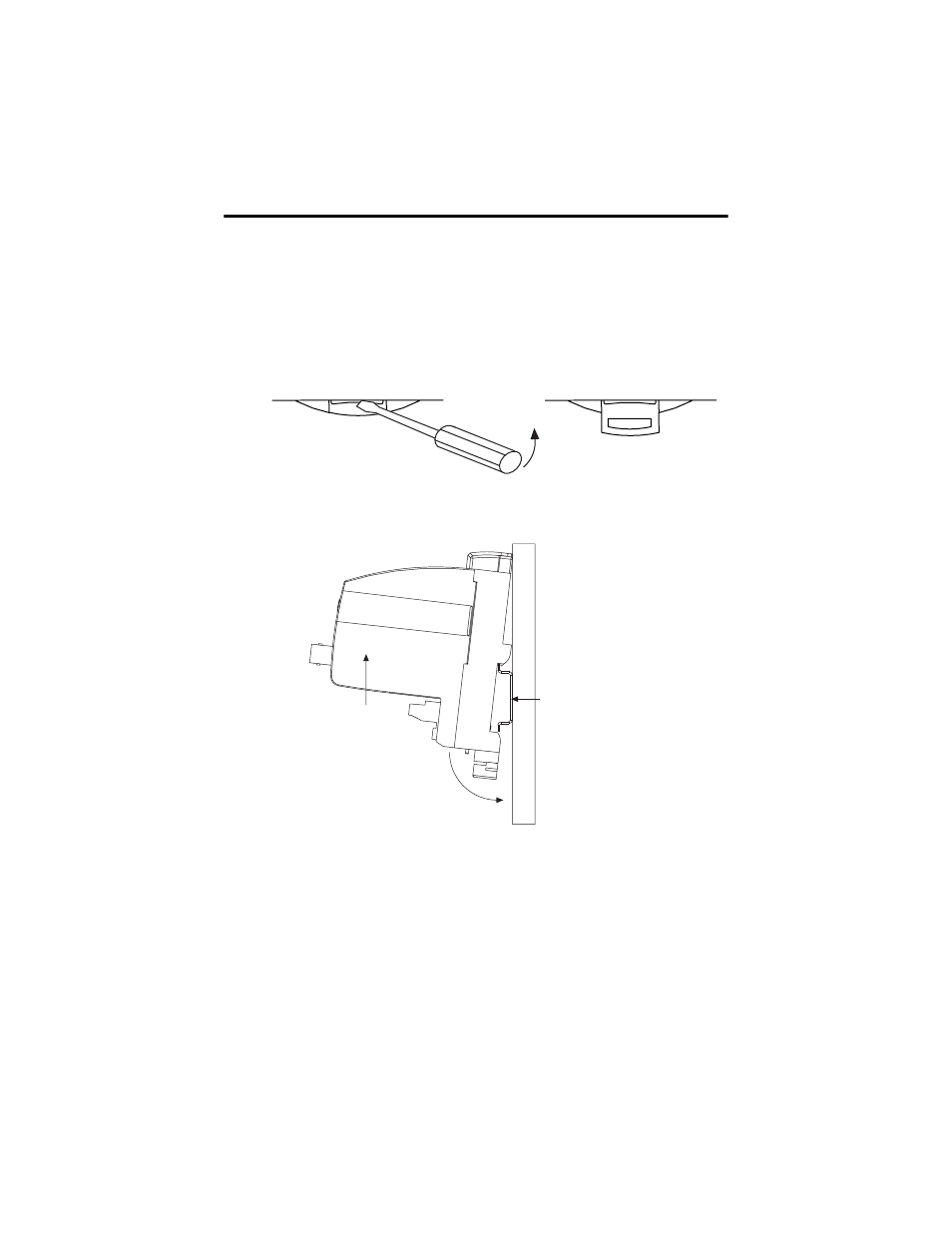

1. Use a flat-bladed screwdriver to open the DIN Rail Clip to the unlocked position.
2. Hook the lip on the rear of the module onto the top of a 35mm DIN rail and press
the module down onto the DIN rail.
3. Slide the module to the desired position on the DIN rail. After it is in position, push
the rail clip into the locked position to lock it in place on the DIN rail.
43167
Rail Clip Locked
Rail Clip Unlocked
43168
Cover
Press
DIN Rail
