16 High-Speed Counter Module

Publication 1746-IN011C-EN-P - April 2005

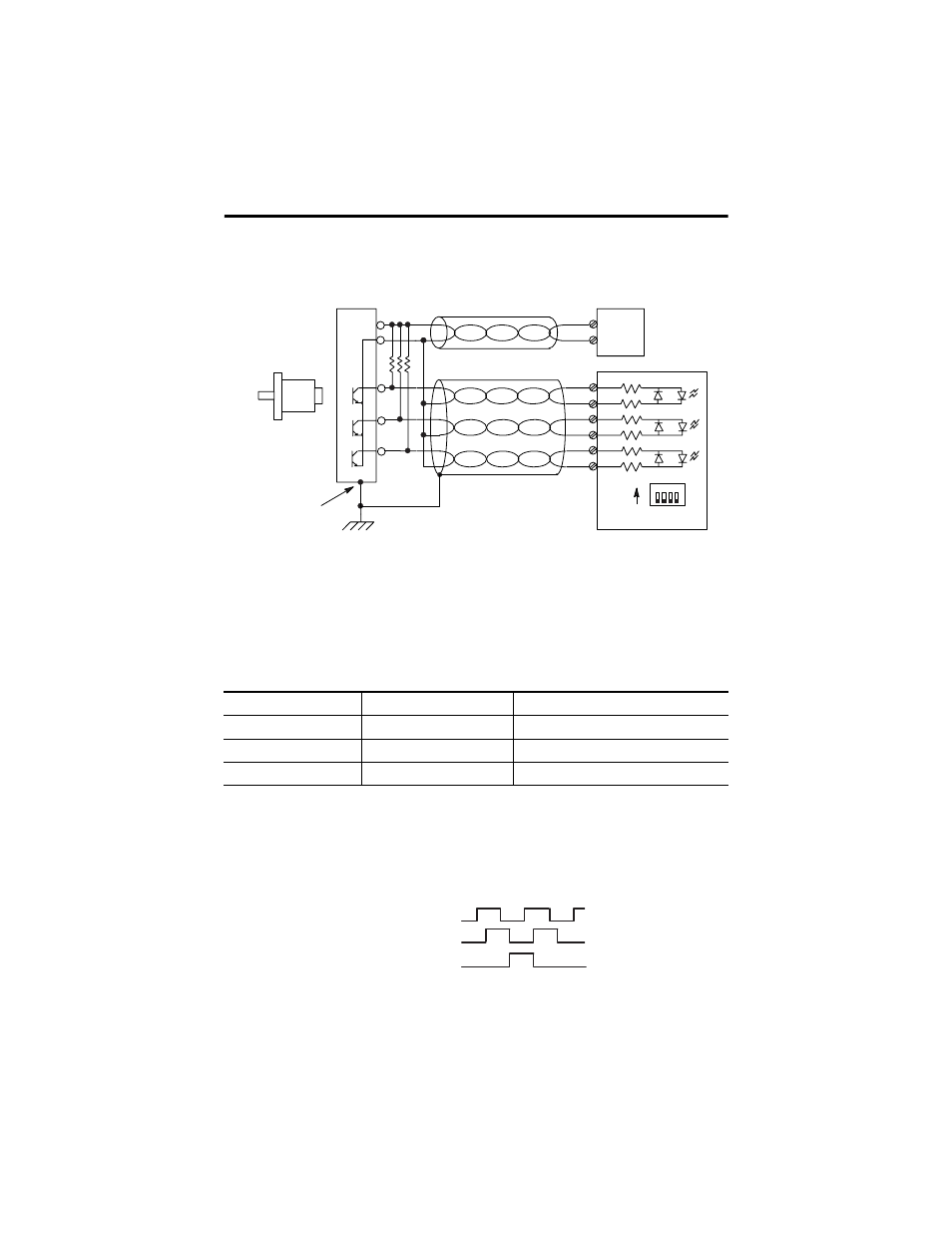

Single-Ended Encoder Wiring (Open Collector)

Single-Ended Encoder Output Waveforms

The figure below shows the single-ended encoder output waveforms. When the
waveform is low, the encoder output transistor is ON.

VS Value

R Value

Maximum Output Leakage

+5V dc

150 ohm 1/4W 5%

6.3 mA

+12V dc

1800 ohm 1/4W 5%

1.5 mA

+24V dc

4700 ohm 1/4W 5%

1.2 mA

A

B

Z

A(+)
A(-)

B(+)

B(-)
Z(+)

Z(-)

R

1 2 34

+ VDC

COM

VS

GND

Belden 9503 or equivalent
305m (1000tft) max length

Power
Supply

Allen-Bradley
845H Series
single-ended
encoder

encoder connector housing

Earth

Shield

(2)

Module Inputs

SW1

ON

OFF

(All switches OFF)

cable

(1)

(1) Refer to your encoder manual for proper cable type and length.

(2) Due to the topology of the module’s input circuits, terminating the shield at the encoder end provides the highest immunity

to EMI interference. Connect EARTH ground directly to the encoder connector housing.

(3) The pullup resistor (R) value depends on the power supply value (VS). The table below lists the resistor values for typical

power supply values. These resistors must be located at the encoder end of the cable.

(3)

A

B

Z

low = transistor ON

high = transistor OFF
