Devicenet cable – Rockwell Automation 1792D-2BV0D ArmorBlock MaXum 2 Input Module Series B User Manual
Page 7
ArmorBlock MaXum 2 Input Module Series B 7
Publication 1792D-IN019B-EN-P - September 2000

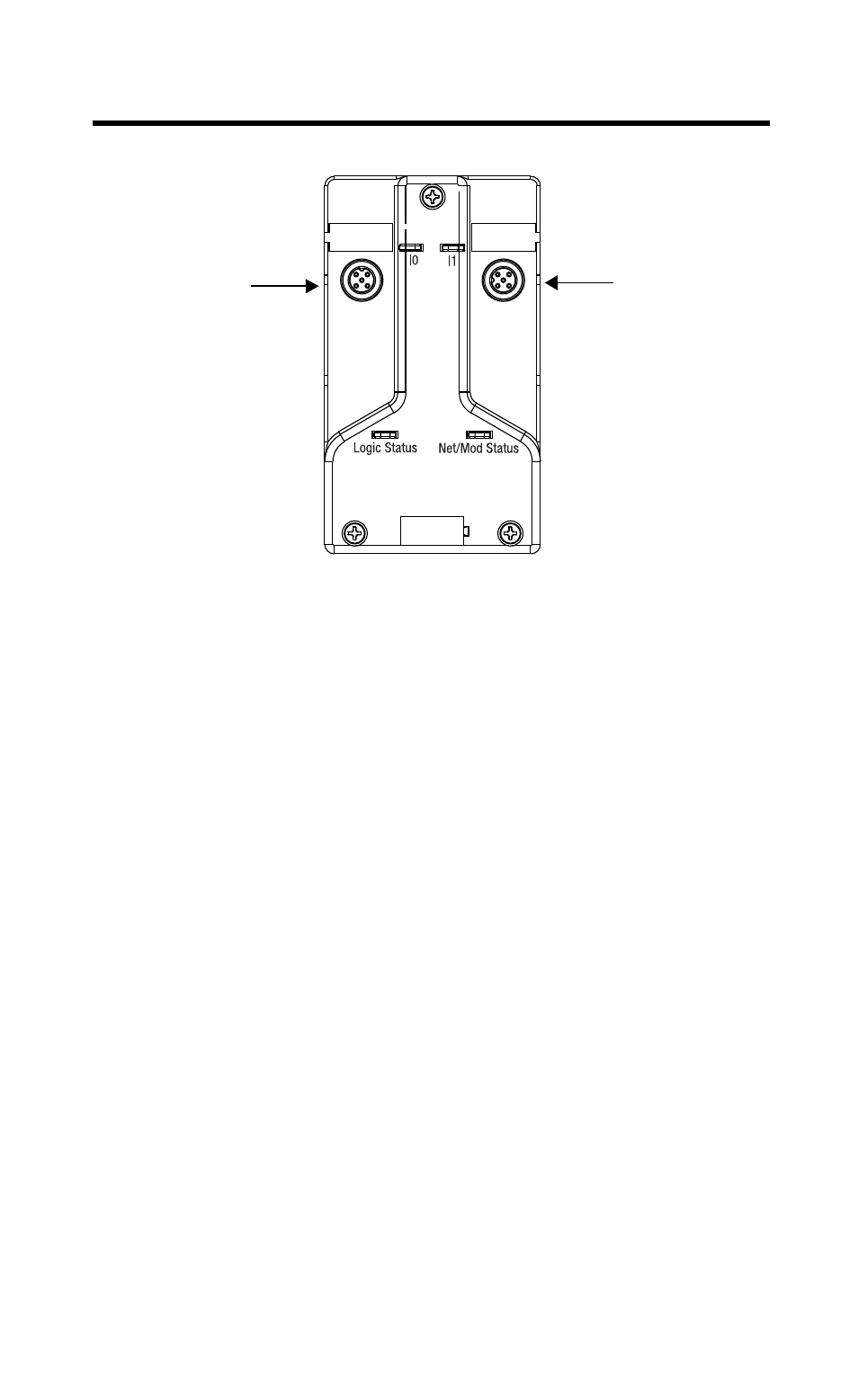

I/O connectors for this module are shown below.
DeviceNet Cable
DeviceNet cables are described in the installation publications for the
cable base assembly of your choice. Refer to the following
publications:
• 1792D-IN009B-EN-P ArmorBlock MaXum Cable Base
Installation Guide
• DN-6.7.2 DeviceNet Cable Planning and Installation Manual
41527
Input 0
Input 1
Connector A
Connector B
