ArmorBlock MaXum 2 Input Module Series B 5
Publication 1792D-IN019B-EN-P - September 2000
To install the module:
1. Position the module over the mounted cable base. Align the
three captive screws in the module with the accepting
receptacles in the base.
2. Tighten the screws with a torque of 8 inch-pounds to secure
the module to the base.
Note: Dimensions change according to the cable base and module
combination used.
IMPORTANT
Proper alignment of the screws is necessary to
complete the connections between the module contacts
and the cable contacts
.
Align the screws
to properly
assemble the
module to the
base.

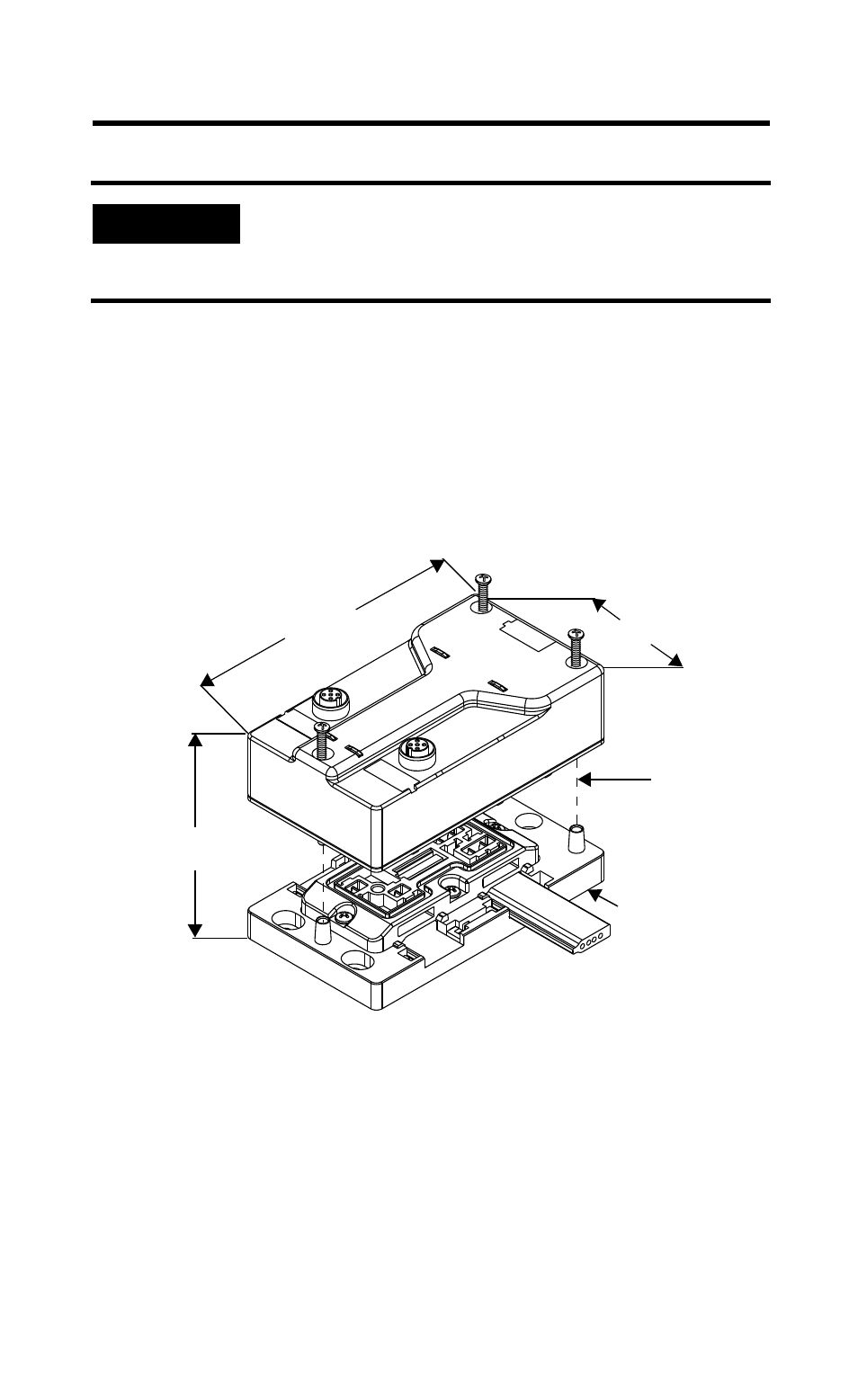

Cable Base
1792D-CBFM is used fo
this example.
Assembled
dimensions in
(mm)
41526
2.7 (68.6)
1.9 (48.26)
4.72 (120)
