Publication 1785-10.5 - November 1998
Chapter
3
Set up the Software
The following instructions are general. For specific information, see
the documentation set for your particular software package.
Install the Software and Set
Up the Programming System Before you install your programming software, make certain you
meet the system requirements for that software – sufficient disk
space, memory, etcetera. Then, follow the procedures outlined in the
software documentation to install the software and configure
communication.

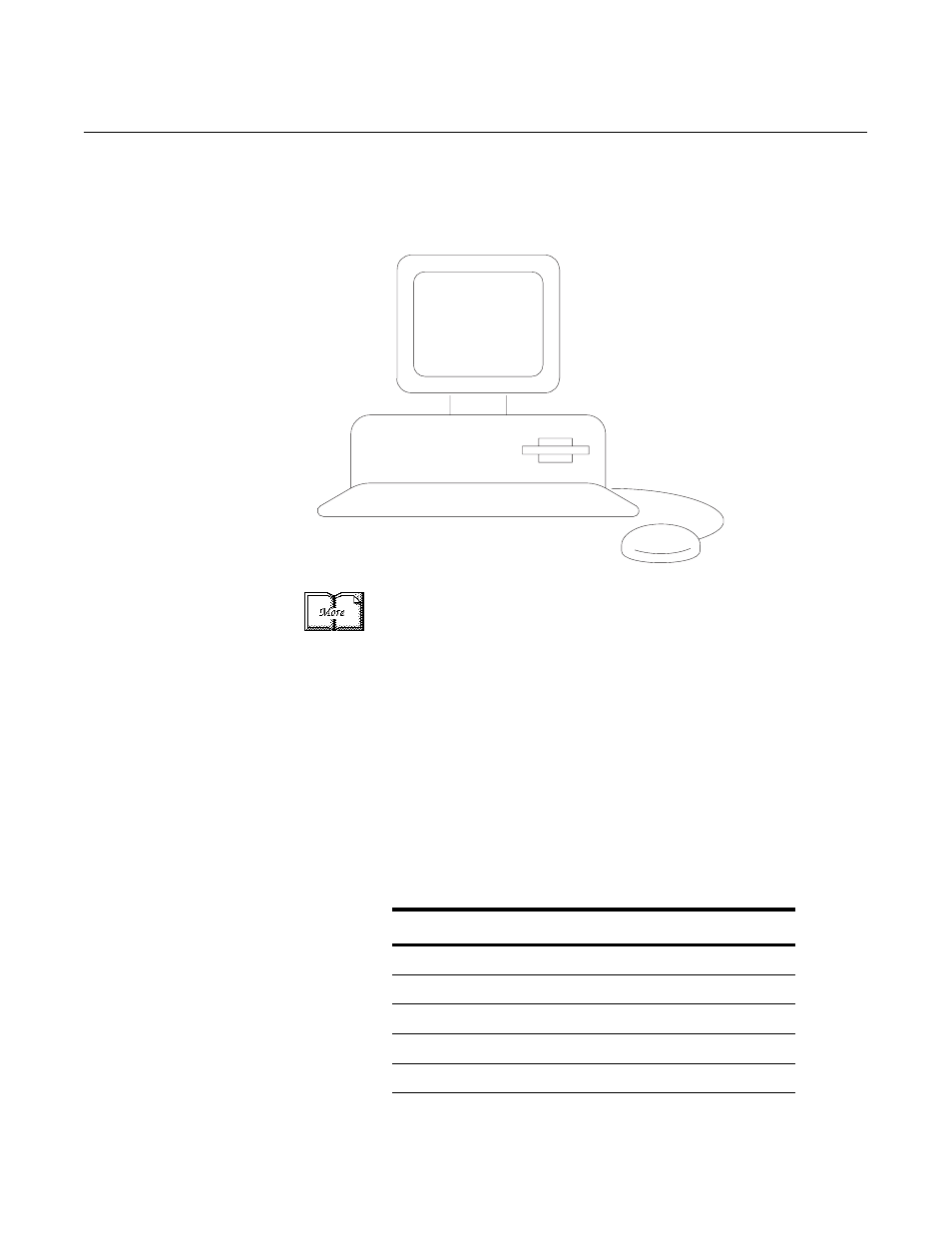

Start the
Programming Software Start the programming software by following the procedures
described in your programming software documentation.
If you have difficulty, verify that the power supply is turned on.
To monitor your system as you configure and run it, check the
processor LED display for the following indicators:
Powerup the system
3
Install the software
1
Start the programming software
2
This LED: lights when:
COMM you establish DH+ communication
BATT no battery is installed or the battery voltage is low
REM I/O you establish Remote I/O communication
ADAPT the processor is in adapter mode
FORCE forces are present in your ladder program
