Ethernet/ip armorblock 16-point i/o module, Ethernet/ip d-code m12 connector, Protective earth – Rockwell Automation 1732E-XXXX Ethernet/IP 24Vdc 16 Input Modules User Manual
Page 5
ArmorBlock 16-Point EtherNet/IP Module, Series A 5
Publication
1732E-IN002B-EN-E - February 2011

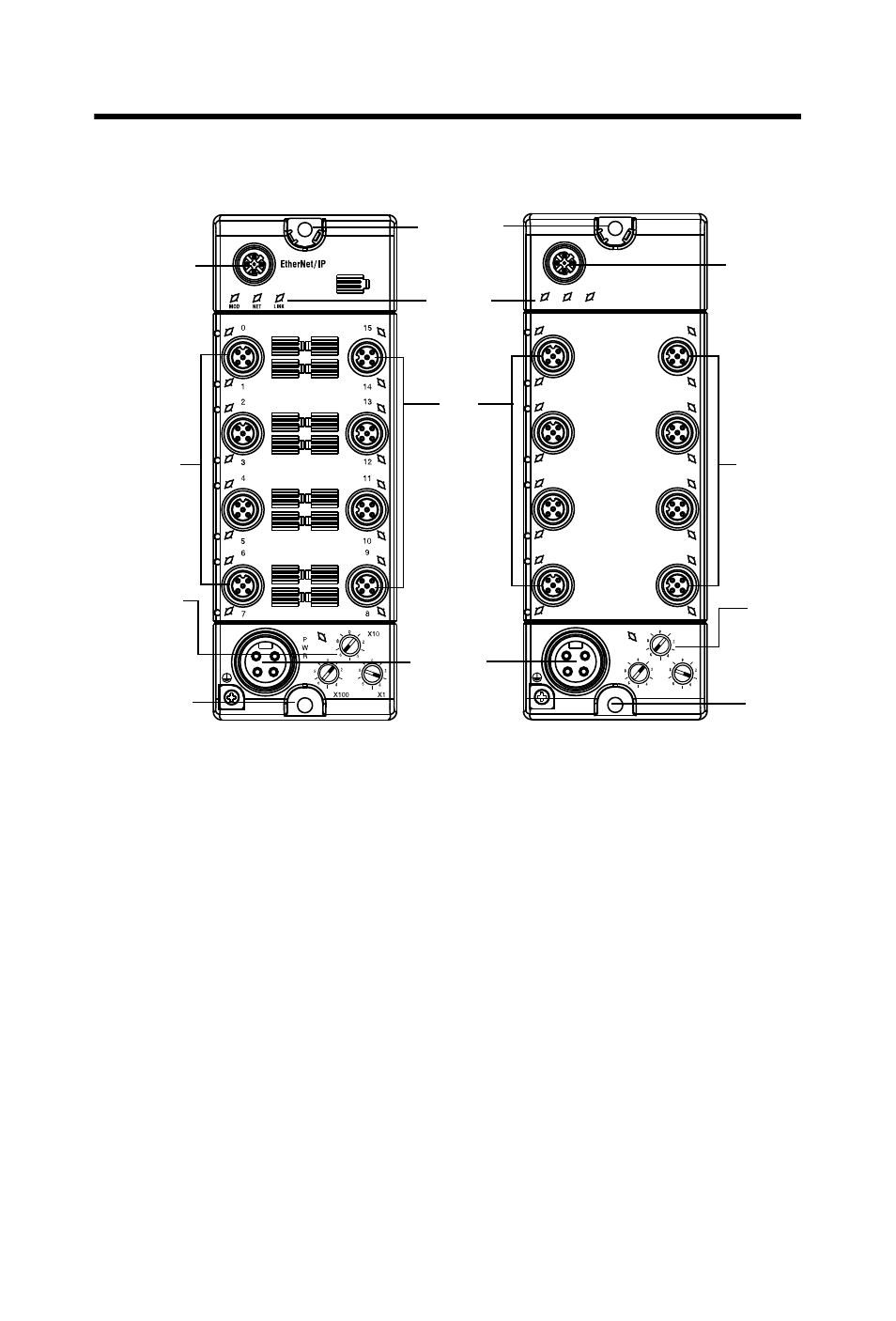

EtherNet/IP ArmorBlock 16-Point I/O Module
(1)
Functional Earth grounds the I/O block’s EtherNet/IP communication circuitry which is designed to
mitigate the effect of noise on the network. See 10 for network connections.
(2)
Protective Earth is provided for the grounding of field devices and is internally connected to each Pin 5 of
the M12 I/O connectors. See 11 for I/O connections.
3
1
0
2
4
5
6
7
P
W
R
8
9
10
11
12
13
14
15
LINK
NET
MOD
EtherNet/IP
X10
X100
X1
44231
EtherNet/IP
D-Code M12
Connector
44232
Status
LEDs
I/O
Connectors
Auxiliary
Power
Functional
Earth
(1)
Metal
Housing
Plastic
Housing
Node
Address
Switches
Protective
Earth
(2)
Protective
Earth
(2)
EtherNet/IP
D-Code M12
Connector
I/O
Connectors
I/O
Connectors
Node
Address
Switches
