POINT I/O 120/220V AC Output Module 13
Publication 1734-IN009E-EN-E - March 2013

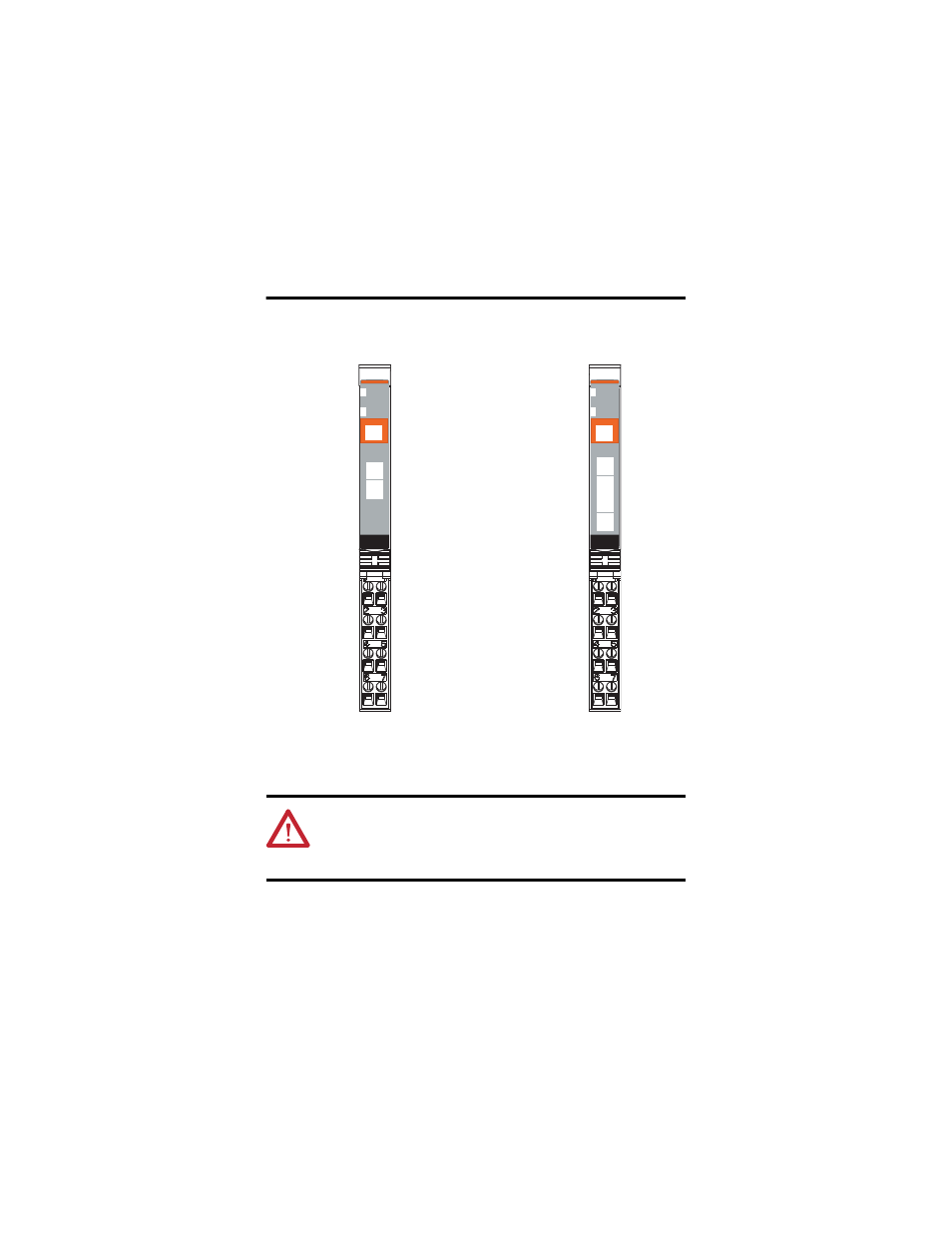

Wire the Module
WARNING: If you connect or disconnect wiring while the field-side power is
on, an electrical arc can occur. This could cause an explosion in hazardous
location installations. Be sure that power is removed or the area is
nonhazardous before proceeding.
120/220VAC
Output
Module
Status
Network
Status
1734
OA4
0
1
2
3
NODE:
Module status
Network status
Status of output 0
Status of output 1
Channel 0
connection
Channel 2
connection
Channel 1
connection
No connection
L2/N L2/N
L1 L2/N
L2/N = 120/220V AC return
L1 = 120/220V AC supply
Module status
Network status
Status of output 0
Status of output 1
Status of output 2
Status of output 3
Channel 0
connection
No connection
L2/N
L1
1734-OA2 1734-OA4
L2/N
L2/N
Channel 1
connection
Channel 3
connection
120/220VAC
Output
Module
Status
Network
Status
1734
OA2
NODE:
0
1
NODE:
