Compact High-density Analog Current Input Module 5
Publication 1769-IN085A-EN-P - August 2008
About the 1769-IF16C Module
Compact I/O is suitable for use in an industrial environment when installed in
accordance with these instructions. Specifically, this equipment is intended for use
in clean, dry environments (Pollution degree 2
(1)
) and to circuits not exceeding
Over Voltage Category II
(2)
(IEC 60664-1)
(3)
.

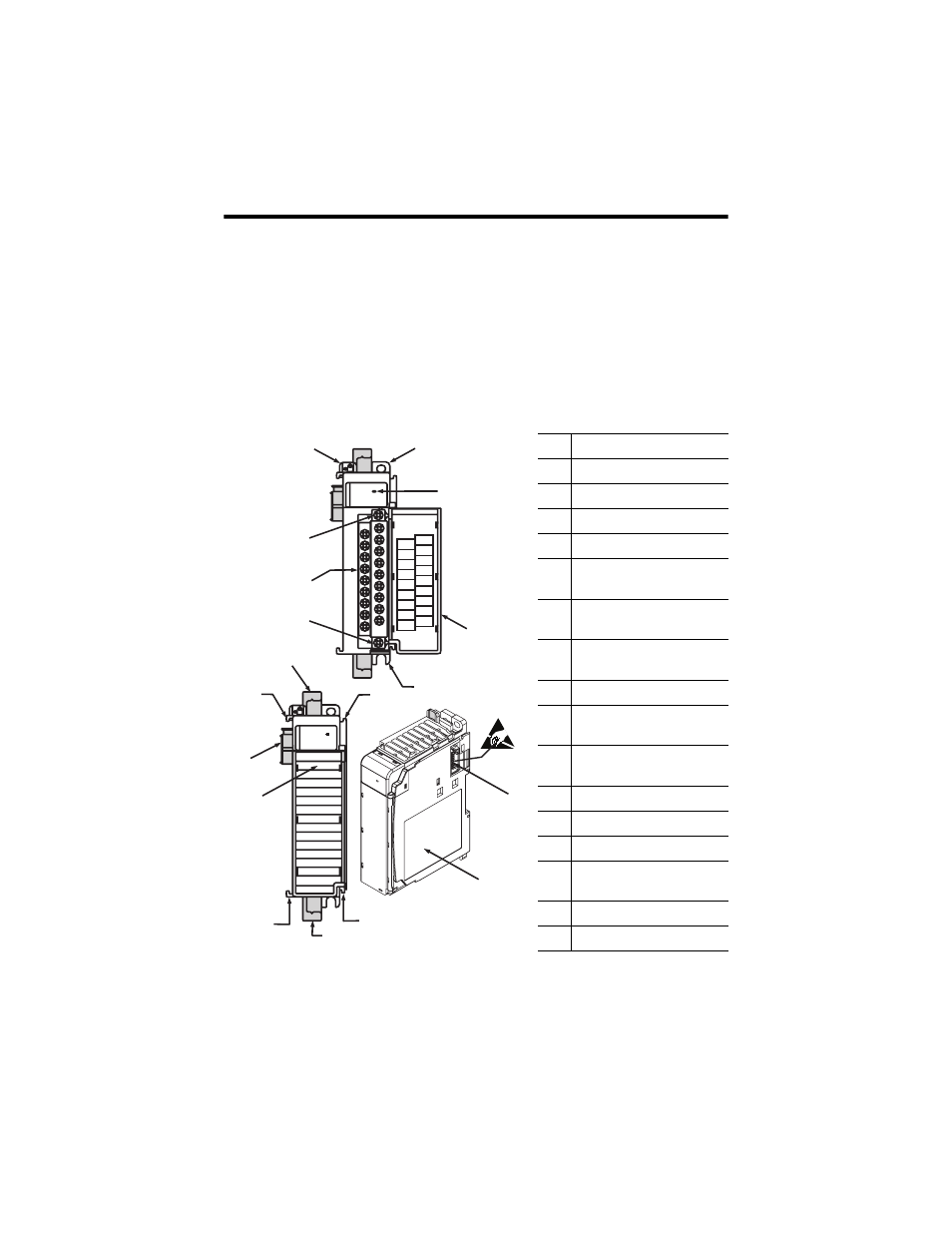

Module Description
(1) Pollution Degree 2 is an environment where, normally, only non-conductive pollution occurs except that occasionally a
temporary conductivity caused by condensation is expected.
(2) Over Voltage Category II is the load level section of the electrical distribution system. At this level, transient voltages are
controlled and do not exceed the impulse voltage capability of the product’s insulation.
(3) Pollution Degree 2 and Over Voltage Category II are International Electrotechnical Commission (IEC) designations.
Item Description
1 Bus lever (with locking function)
2a Upper panel mounting tab
2b Lower panel mounting tab
3 Module status indicator
4 Module door with terminal
identification label
5a Movable bus connector
with female pins
5b Stationary bus connector
with male pins
6 Nameplate label
7a Upper
tongue-and-groove slots
7b Lower
tongue-and-groove slots
8a Upper DIN rail latch
8b Lower DIN rail latch
9 Write-on label (user ID tag)
10 Removable terminal block (RTB)
with finger-safe cover
10a RTB upper retaining screw
10b RTB lower retaining screw
1769-IF16C
DANGER
Do Not Remove RTB Under Power
Unless Area is Non-Hazardous
Ensure Adjacent
Bus Lever is Unlatched/Latched
Before/After
Removing/Inserting Module
IN3+
IN9+
IN15+
IN5+
COM
IN11+
IN13+
IN1+
IN7+
IN2+
IN8+
IN14+
IN4+
COM
IN10+
IN12+
IN0+
IN6+
OK
Analog
OK
Analog
1 2a
3
4
2b
10b
10
10a
8a
7a 7a
5a
9
7b 7b
8b
5b
6
