Using Trim Pots and the Data Access Tool (DAT) 5-3
Power-Up Operation
The DAT receives power when it is plugged into the controller. Upon
power-up, the DAT performs a self-test.

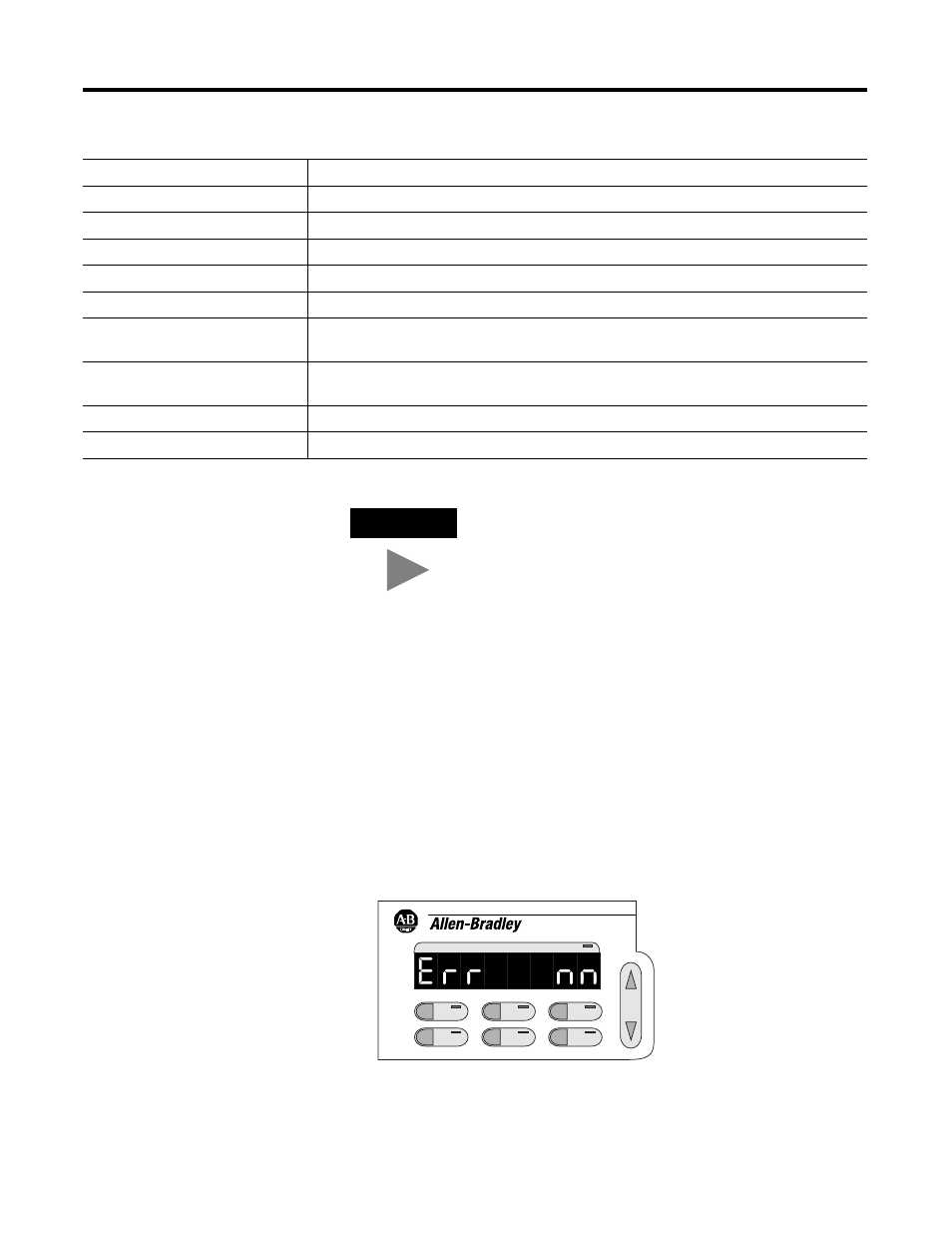

If the test fails, the DAT displays an error code, all indicator lights are
deactivated, and the DAT does not respond to any key presses. See
DAT Error Codes on page 5-10.
After a successful self-test, the DAT reads the DAT function file to
determine its configuration.
Feature Function
Digital Display Displays address elements, data values, faults and errors.
Up/Down Key Selects element numbers and change data values. The up/down key scrolls when held.
F1 Key and Indicator Light Controls the F1 status bit. When the F1 key is pressed or latched, the F1 indicator LED is lit.
F2 Key and Indicator Light Controls the F2 status bit. When the F2 key is pressed or latched, the F2 indicator LED is lit.
ESC Key Cancels a current operation.
BIT Key and Indicator Light Pressing the BIT key puts the DAT in bit mode. The bit indicator light is on when the DAT is in bit
mode.
INT Key and Indicator Light Pressing the INT key puts the DAT in integer mode. The integer indicator light is on when the DAT
is in integer mode.
ENTER Key Press to select the flashing element number or enter data value.
PROTECTED Indicator Light Indicates element data cannot be changed using the DAT (element is read-only).
TIP
The F1, F2, ESC, BIT, INT, and ENTER keys do not
repeat when held. Holding down any one of these
keys results in only one key press. The Up/Down
arrow key is the only key that repeats when held.
F1
BIT
F2
INT
ESC
ENTER
PROTECTED
