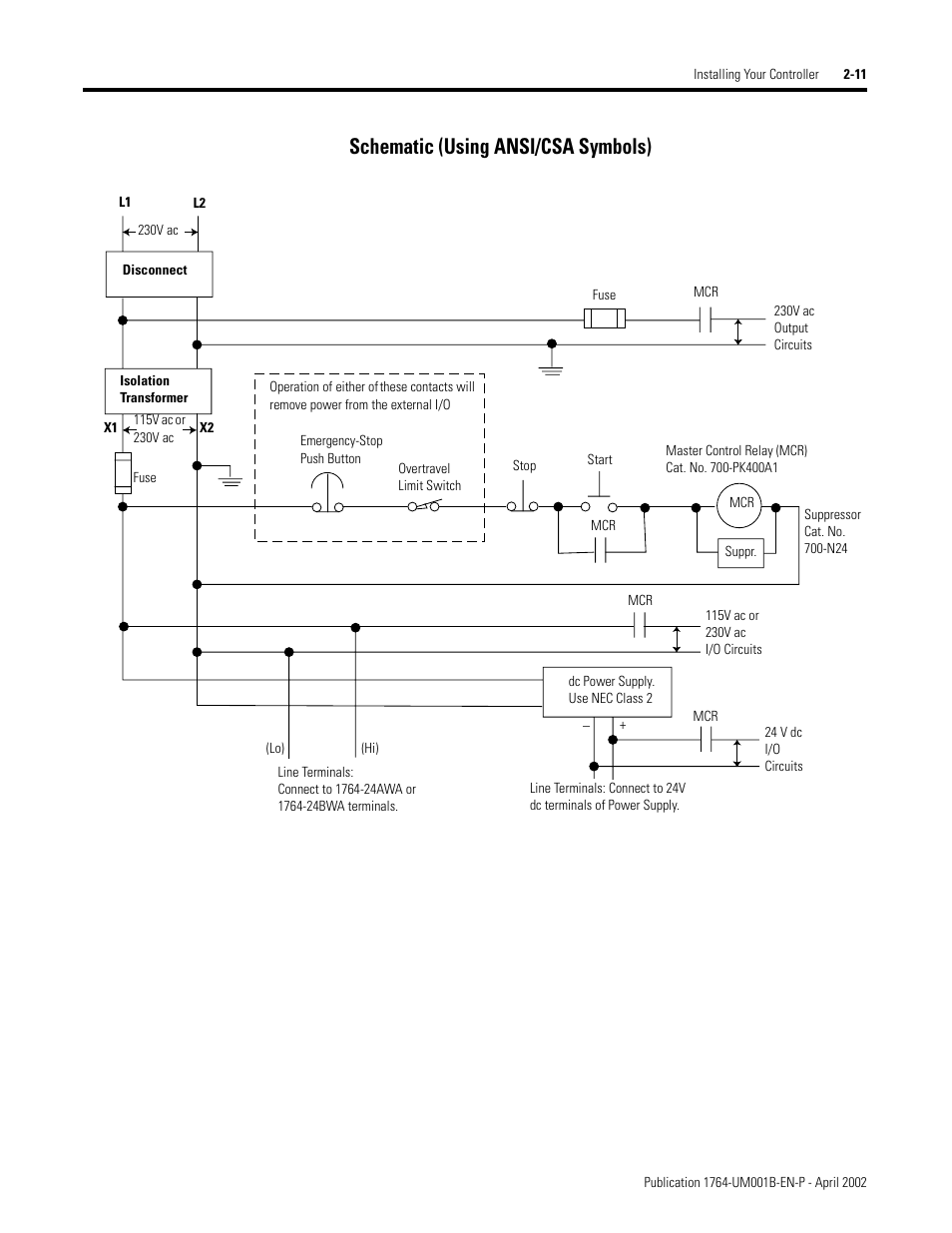

Schematic (using ansi/csa symbols) -11, Schematic (using ansi/csa symbols) – Rockwell Automation 1764-xxxx MICROLOGIX 1500 PROGRAMMABLE CONTROLLERS User Manual
Page 37
