1790p-tnoc2 data structure, Output fault and idle states, Configuring profibus analog modules – Rockwell Automation 1790D-NOV2/TNOV2 CompactBlock LDX Analog Modules User Manual

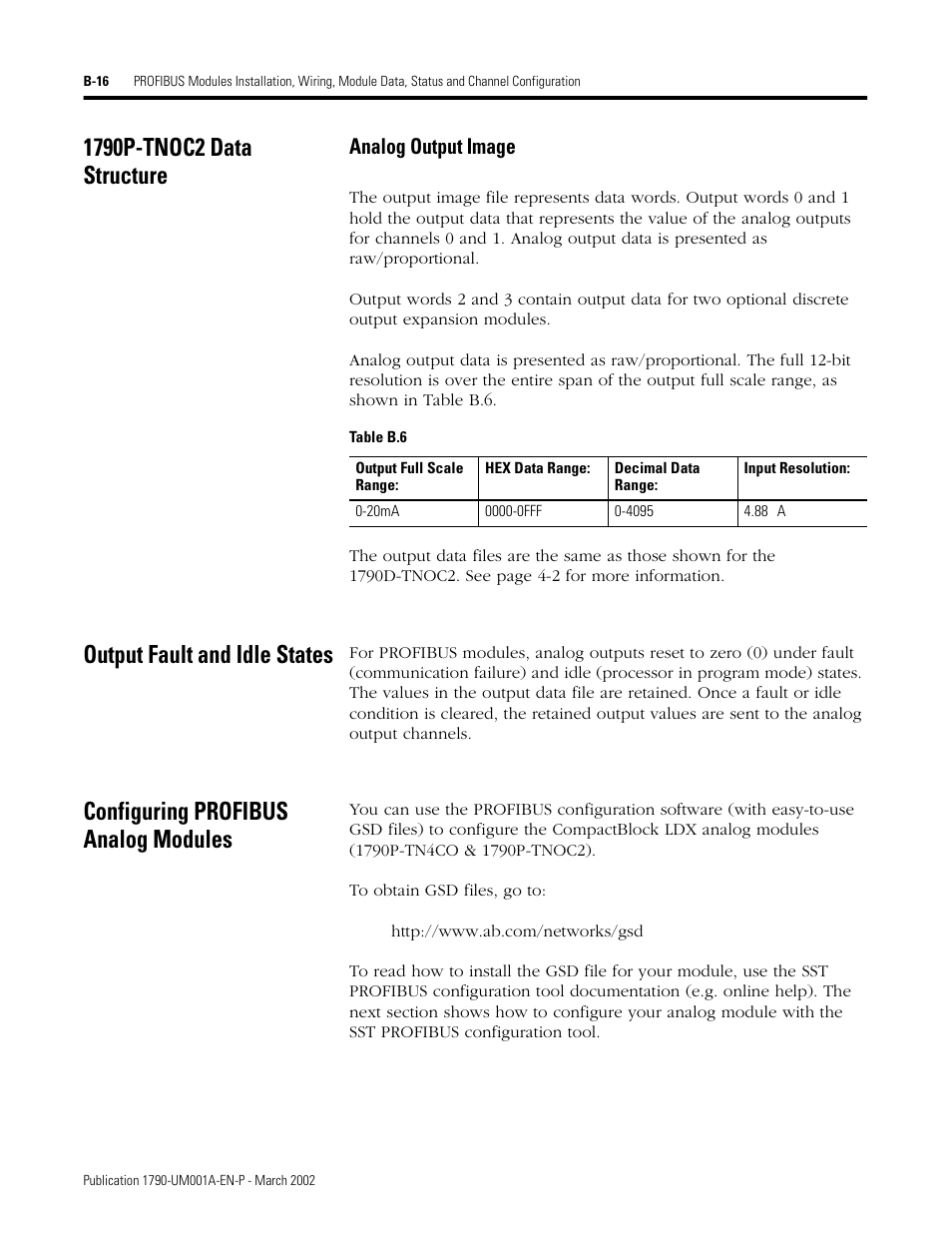

Page 84: Analog output image
This manual is related to the following products:
