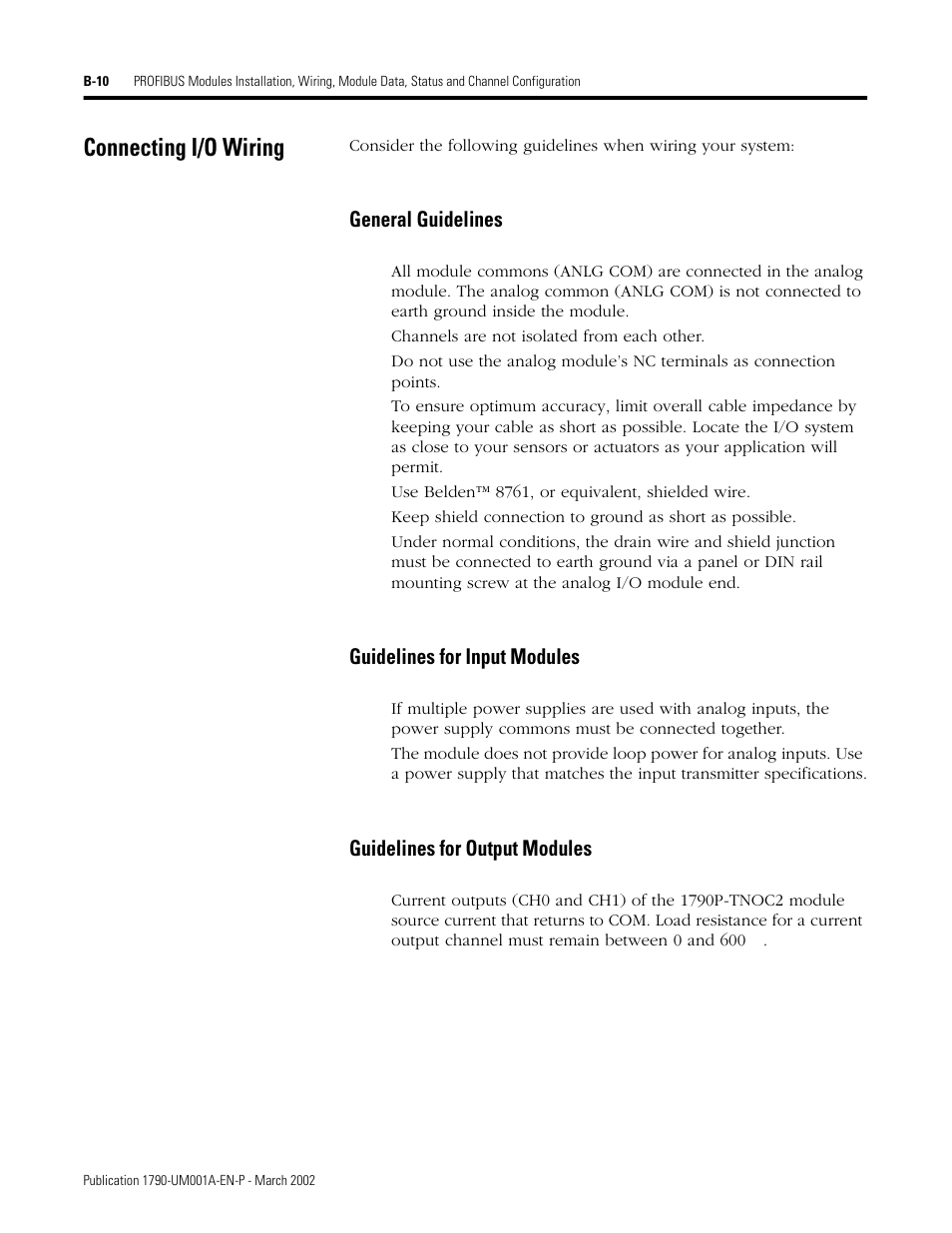

Connecting i/o wiring, General guidelines, Guidelines for input modules – Rockwell Automation 1790D-NOV2/TNOV2 CompactBlock LDX Analog Modules User Manual
Page 78: Guidelines for output modules
This manual is related to the following products:
