7. Connect the adapter to the controller.

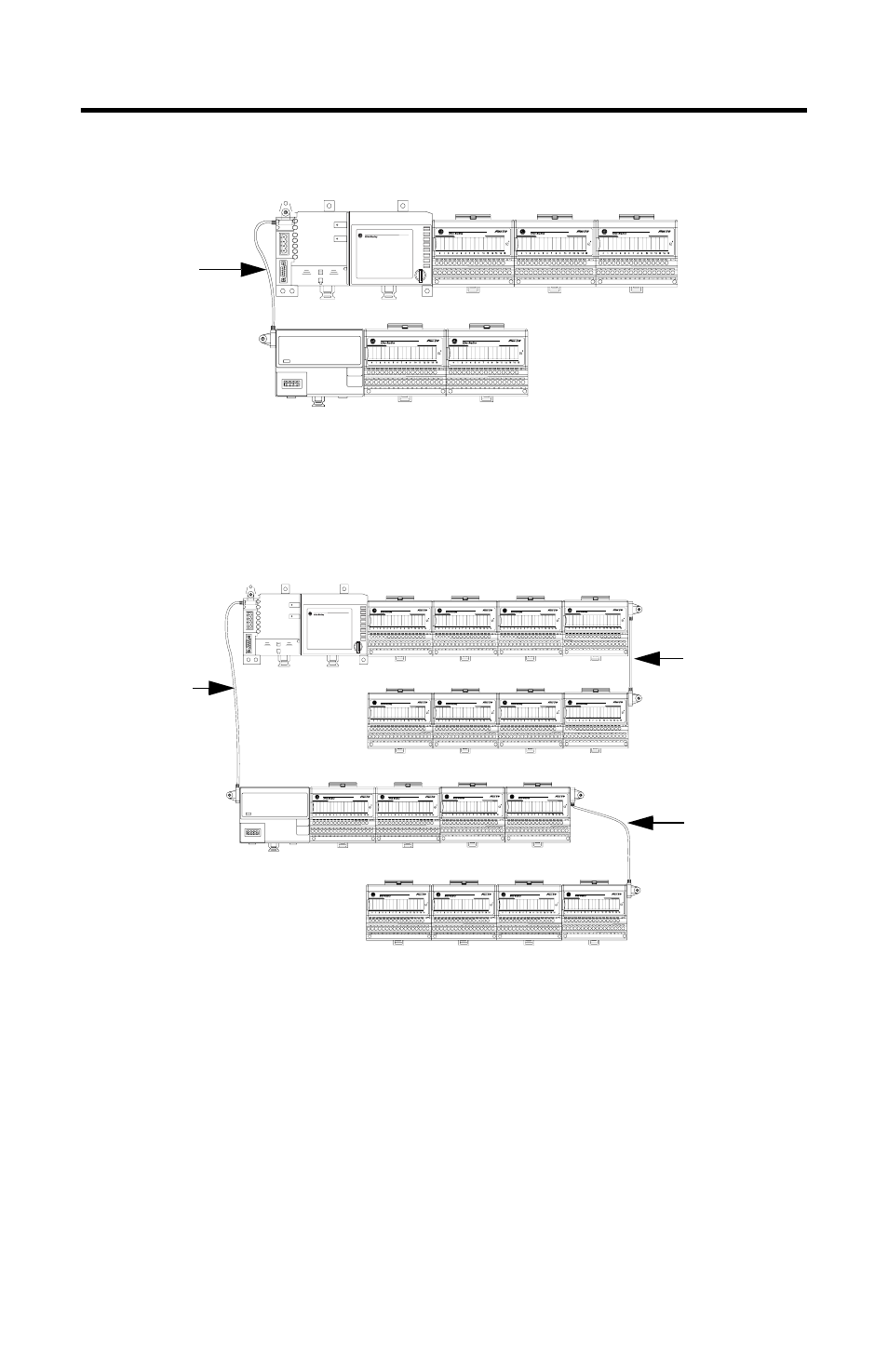

The following diagram shows how you can also use the 1794-CE1, -CE3
cable to split a rail of I/O. You can split each rail only once. You can split a
rail right after the controller (or adapter) or after any I/O module. For more
information about the 1794-CE1, -CE3 cables, see the Interconnect Cable
Installation Instructions, publication 1794-5.12.
Removing the extended-local adapter
If you need to remove the adapter, follow these steps:
1. Turn off power to the adapter.
2. Disconnect all cables from the adapter.
3. Remove the I/O module that is adjacent to the adapter.
4. On the terminal base adjacent to the adapter, slide the FLEXBUS connector
away from the adapter and remove the I/O terminal base.
5. Remove the adapter from the DIN rail.
31039-M
1794-CE1 or
1794-CE3 cable
LOCAL rail
LOCAL2 rail
1794-CE1 or
1794-CE3 cable
1794-CE1 or
1794-CE3 cable
1794-CE1 or
1794-CE3 cable
