14 FlexLogix Controller System
Publication 1794-IN002G-EN-P - January 2004

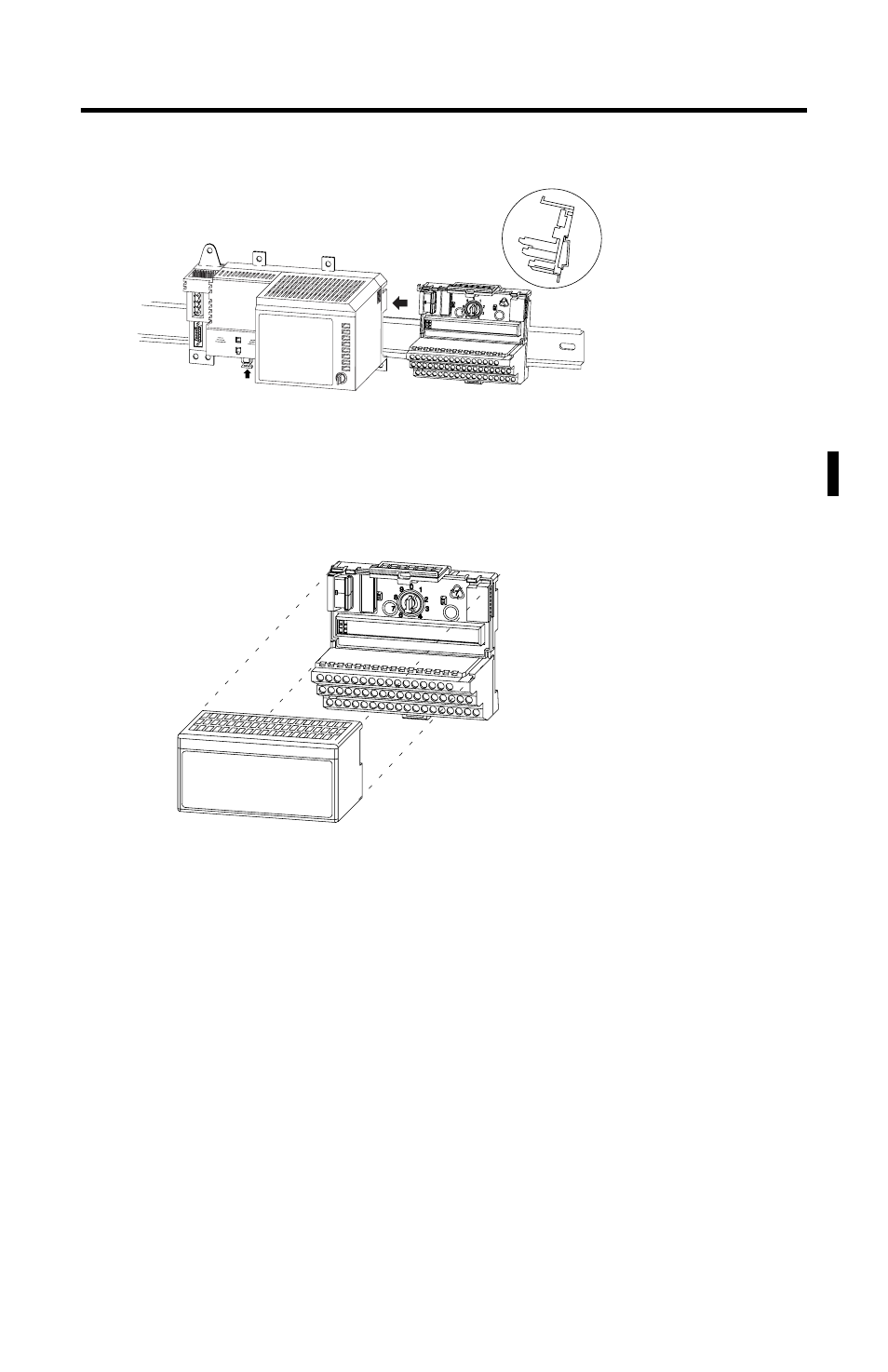

6. Mount the I/O terminal bases on the DIN rail.
For information about I/O terminal bases, see the FLEX I/O Terminal Base
Installation Instructions, publication 1794-IN092.
7. Install the I/O modules.
To install an I/O module, see the installation instructions for that module.
Removing the controller
If you need to remove the controller, follow these steps:
1. Turn off power to the controller.
2. Disconnect all cables from the controller.
3. Remove the I/O module that is adjacent to the controller.
4. On the terminal base adjacent to the controller, slide the FLEXBUS connector
away from the controller and remove the I/O terminal base.
5. Remove the controller from the DIN rail.
B
A
A
31036-M
