Once You Have Completed the Installation 5-5

Publication 1784-IN004E-EN-P - April 2005

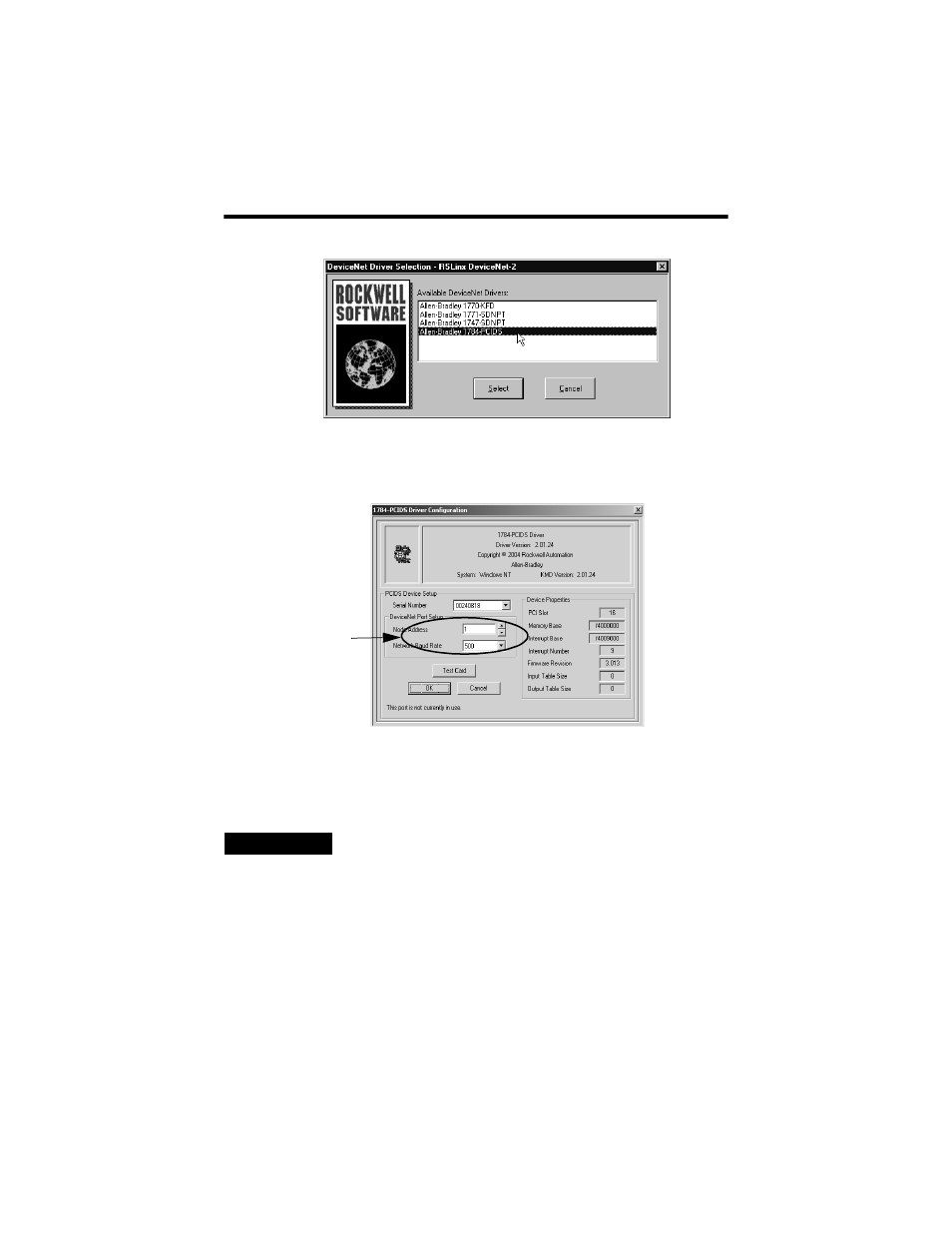

4. Highlight the Allen-Bradley 1784-PCIDS driver and click on Select. The

1784-PCIDS Driver Configuration screen opens.

5. In the DeviceNet Port Setup area of the Driver Configuration screen, set the Node

Address and Network Baud Rate (we used Node Address 1 and a Baud Rate of 500K
for the example network).

6. Click OK.

TIP

If you have configured the driver with SoftLogix5800 Chassis
Monitor, the Node Address and Network Baud Rate fields appear
grayed out. You cannot change the node address or network baud
rates on this screen.

If you have configured the
driver with SoftLogix5800
Chassis Monitor, these two
fields appear grayed out.
