SLC™ 500 4-Channel Thermocouple/mV Input Module 9

Publication 1746-IN010D-EN-P - June 2004

To remove the terminal block:

1. Loosen the two terminal block release screws.

2. Grasp the terminal block at the top and bottom and pull outward and down.

When removing or installing the terminal block, be careful not to damage
the CJC sensors.

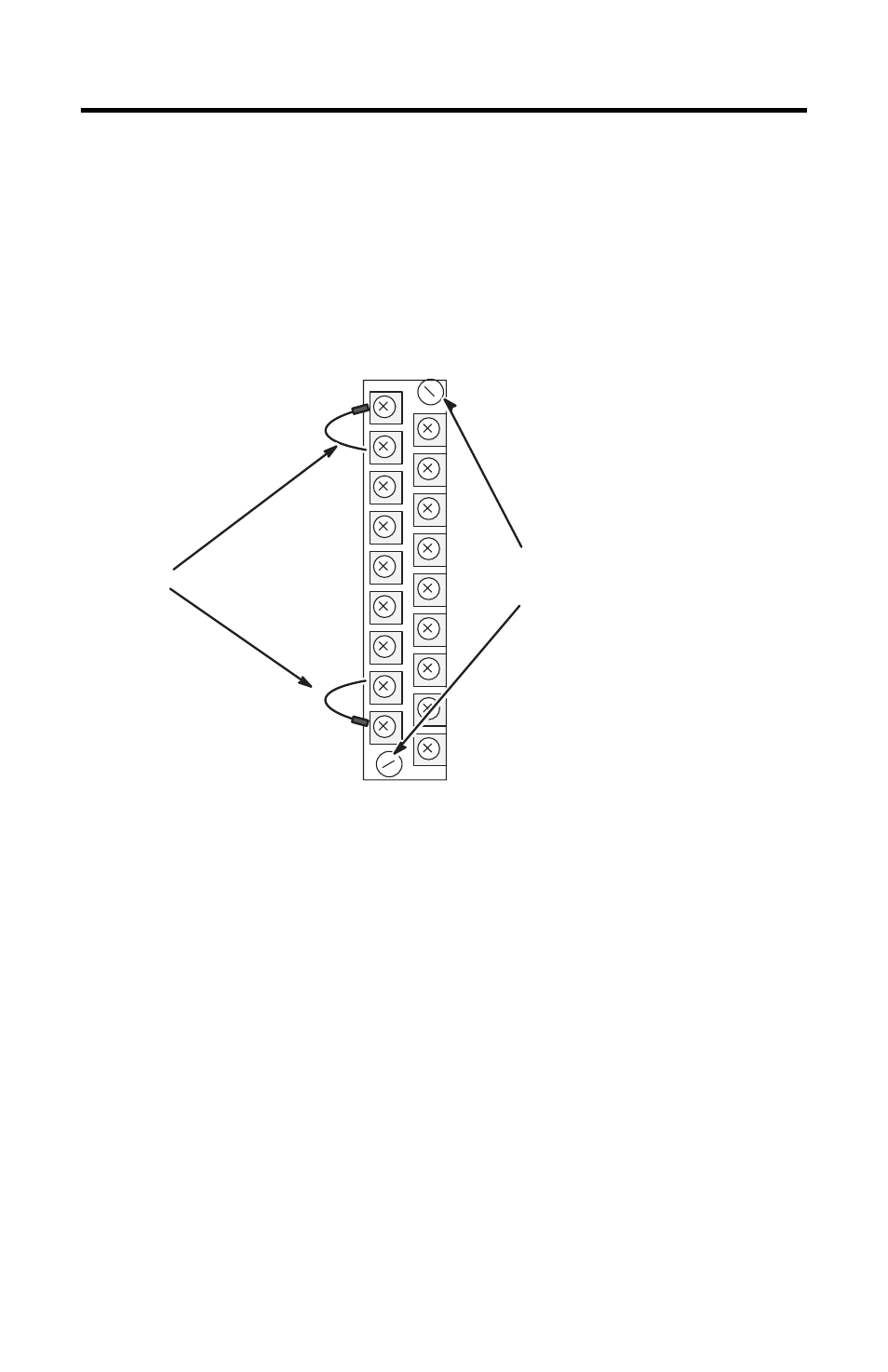

CJC Sensors

Terminal Block Release Screws
Max. Torque = 0.7 to 0.9 Nm (6 to 8
in-lb)
