SLC™ 500 4-Channel Thermocouple/mV Input Module 11
Publication 1746-IN010D-EN-P - June 2004

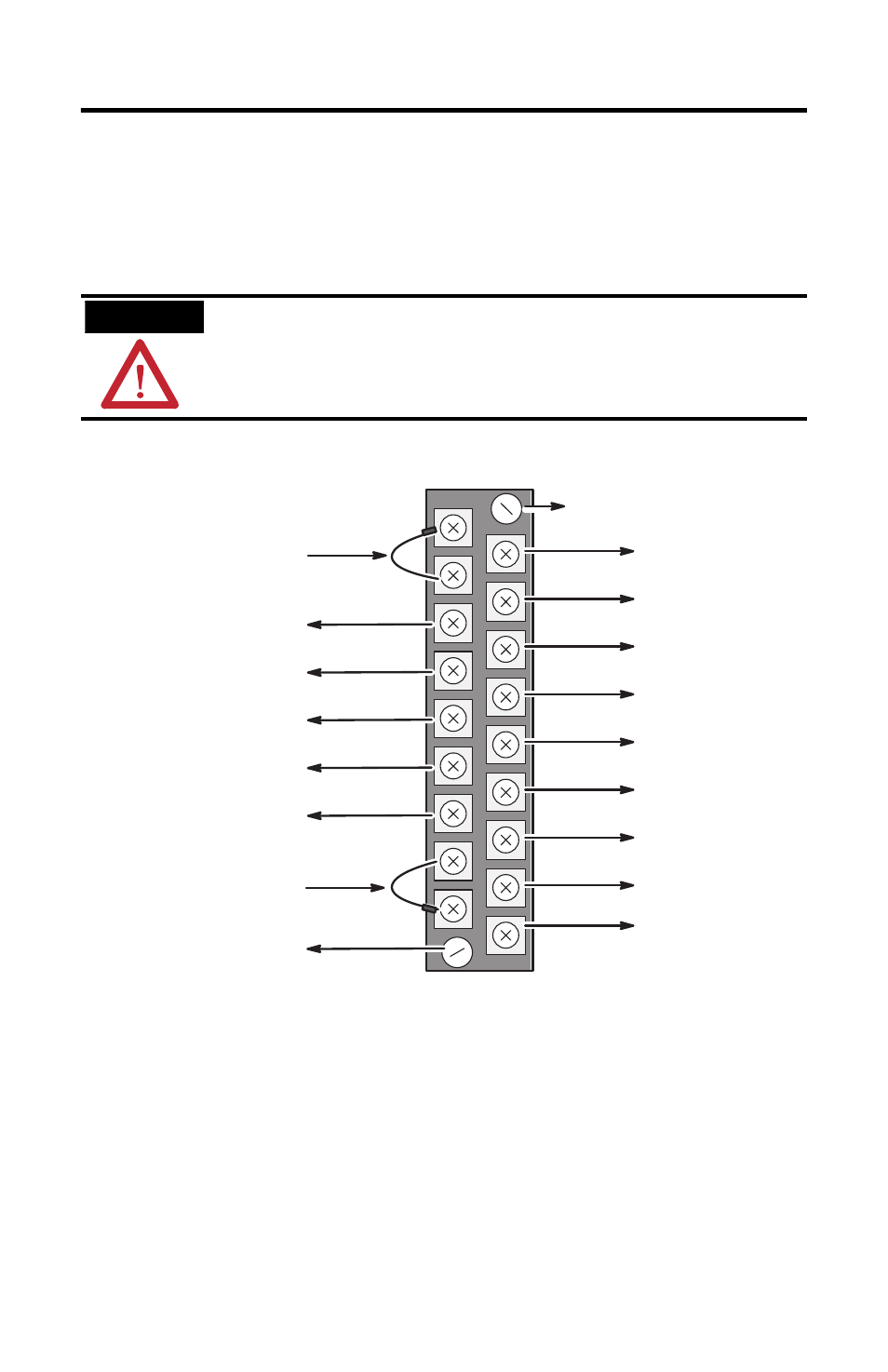

Terminal Wiring
The thermocouple module contains a green, 18-position, removable terminal block.
The terminal pin-out is shown below.
Terminal screws accept a maximum of two #14 AWG (2 mm
2
) wires. Tighten
terminal screws only tight enough to immobilize wires. Maximum torque on
terminal screws is 0.7 to 0.9 Nm (6 to 8 in-lbs).
ATTENTION
Disconnect power to the SLC before attempting to install,
remove, or wire the removable terminal wiring block.
(Terminal Block Spare Part Catalog Number 1746-RT32)
CJC A+
CJC A-
CJC Assembly
Shield
Shield
Shield
Shield
Shield
CJC B+
CJC B-
CJC Assembly
Release Screw Max. Torque =
0.7 to 0.9 Nm (6 to 8 in-lb)
Release Screw Max. Torque =
0.7 to 0.9 Nm (6 to 8 in-lb)
Channel 0+
Channel 0-
Channel 1+
Channel 1-
Channel 2+
Channel 2-
Channel 3+
Channel 3-
Analog Common
[see
(1)
below]
(1)
Replacing a Series A thermocouple module with a Series B module requires that the bottom right terminal (which was
SHIELD on Series A modules) no longer be connected to CHASSIS GROUND if it was previously. Use one of the other
SHIELD terminals.
