ControlNet-to-DeviceNet Linking Device 15
Publication 1788-IN052D-EN-P - February 2007

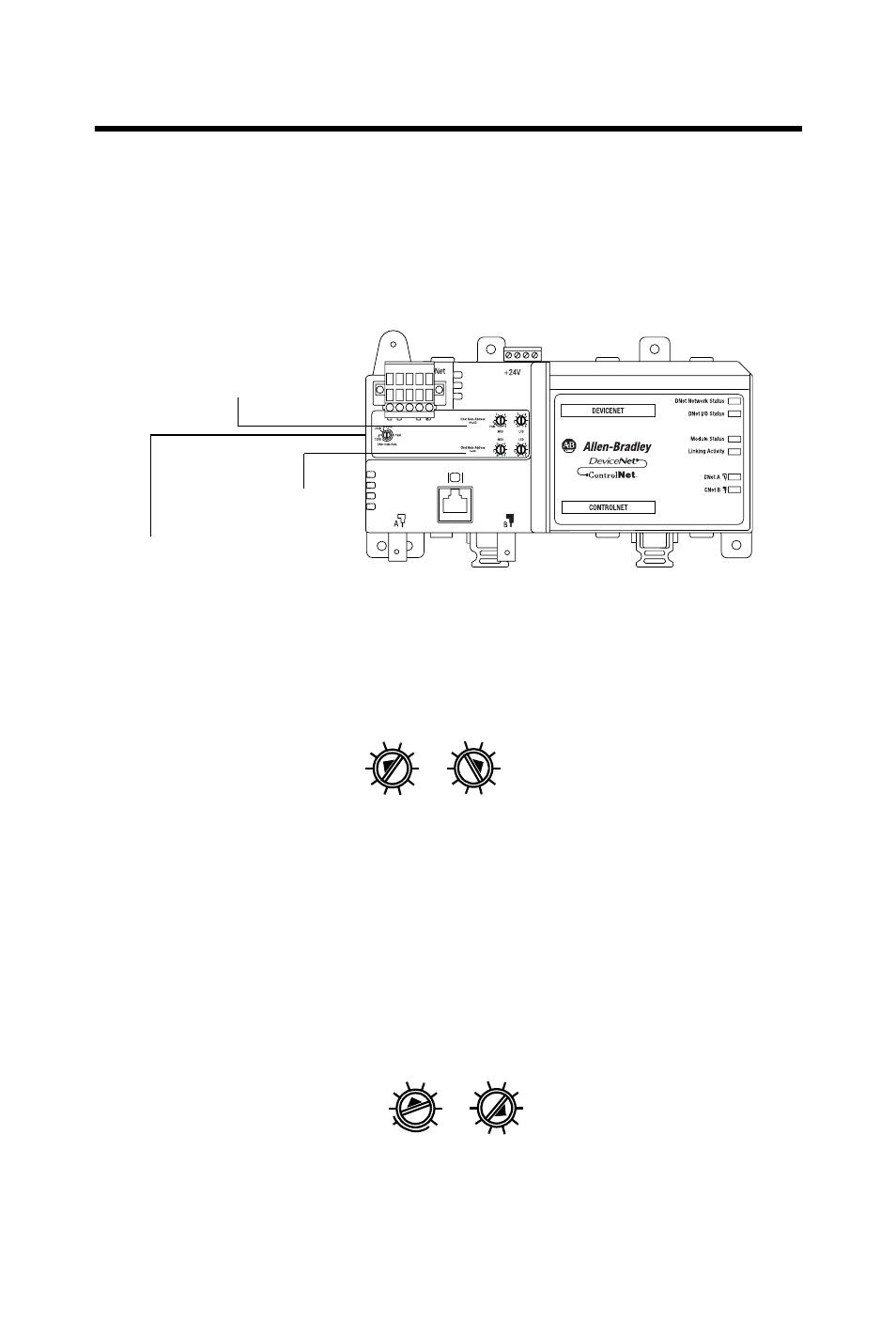

Set the Node Addresses and Communication Rate
Complete the following steps to set the node addresses using the
switches on the front of the CN2DN device.
You have completed setting the ControlNet and DeviceNet node
addresses and communication rate.
1. To set the DeviceNet node address, use a small flat-head
screwdriver to turn the arrows of the switches towards the
desired node numbers.
2 4
6 8
0
2 4
6 8
0
MSD LSD
DeviceNet switches shown set to node 14.
2 4
6
0
2 4
6 8
0
MSD LSD
ControlNet switches shown set to node 26.
PGM
2. To set the DeviceNet communication rate, turn the DeviceNet
baud rate switch to the communication rate your DeviceNet
network is configured to, for example 125 K, 250 K, or 500 K.
3. To set the ControlNet node address, use a small Phillips-head
screwdriver to turn the arrows of the switches towards the
desired node numbers.
DeviceNet
Address
Switches
ControlNet
Address
Switches
DeviceNet Baud
Rate Switch
CN2DN Device Switches
