12 ControlNet-to-DeviceNet Linking Device
Publication 1788-IN052D-EN-P - February 2007
5. If you are mounting your CN2DN device in a high-vibration
area, insert screws (not included) into the holes of the
mounting tabs and tighten so that the screws are firmly
anchored into the panel behind the device.
You have completed mounting your CN2DN device on a DIN rail.
Mount the CN2DN Device on a Panel or Other Fixture
To mount the CN2DN device on a panel or other suitable fixture,
insert five screws (not included) through the module’s mounting tabs
and into the panel or fixture behind the module. Use screws long
enough to penetrate the panel or fixture for a secure mount.
IMPORTANT
If mounting the CN2DN device to a panel, ensure that the panel is
conductive metal and properly grounded. Paint or other coatings
should be sanded from the panel to ensure the CN2DN device
makes sufficient conductive contact with the panel.

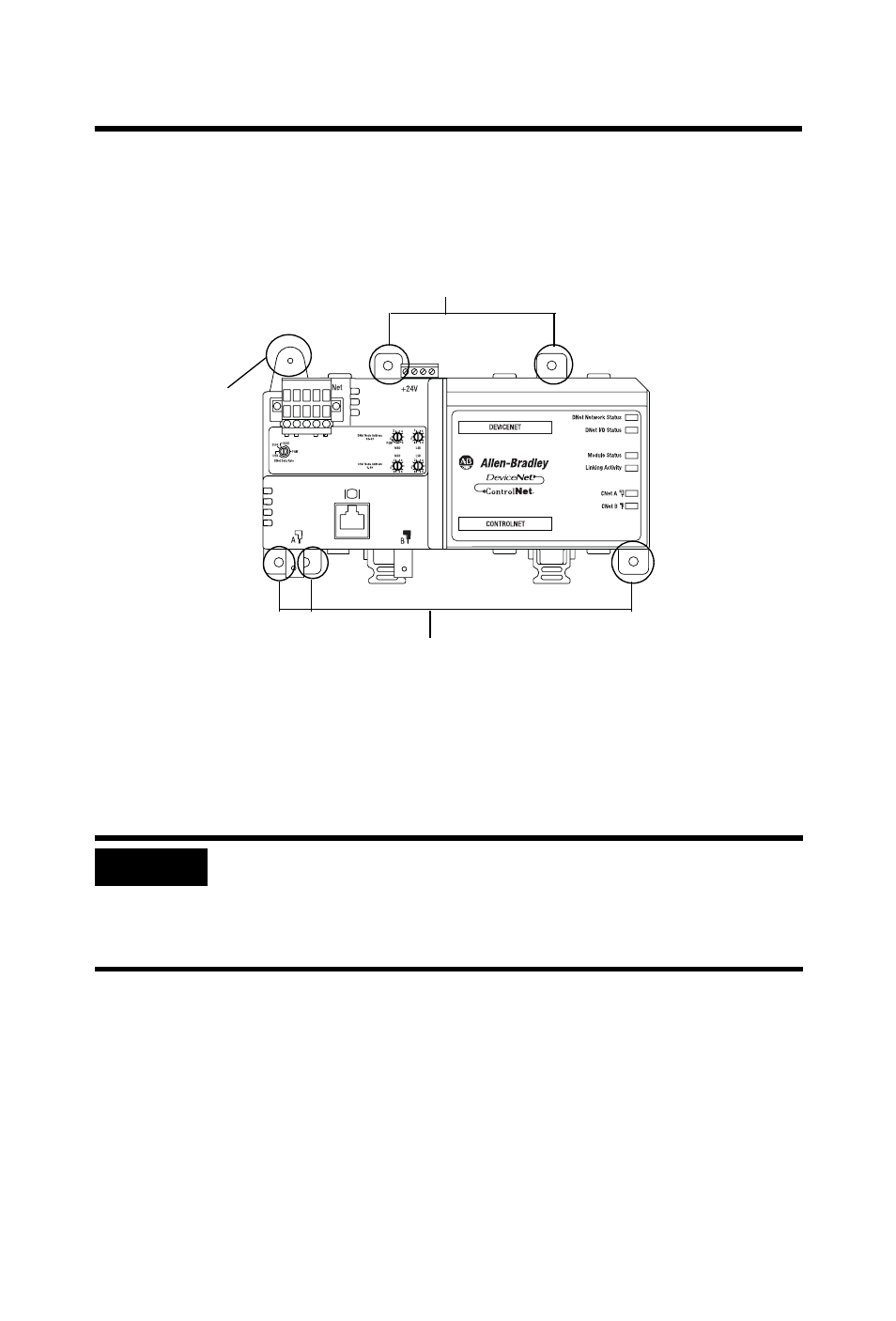

Mount Tabs (Optional Use)
Mount Tabs (Optional Use)
Ground Connection
(Optional) - For use if
DIN rail or panel is
not grounded. If
used, this tab must
be properly
connected to the
earth ground.
