8 ArmorPoint I/O Modules with 8 Configurable 24V DC Points
Publication 1738-IN026B-EN-E - February 2010

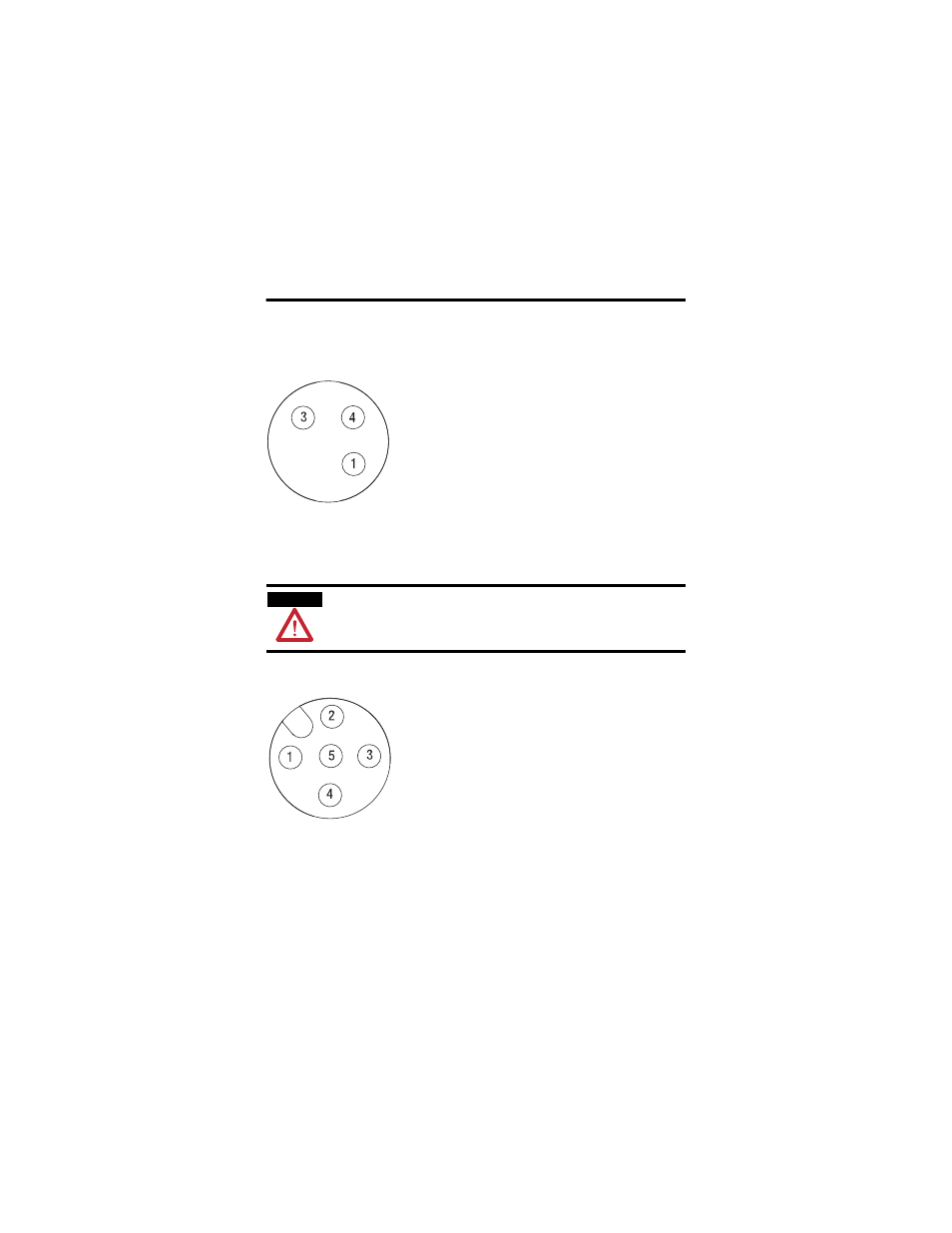

Wire the Module
1738-8CFGM8
1738-8CFGM12
ATTENTION
Make sure all connectors and caps are securely tightened to properly seal the
connections against leaks and maintain IP enclosure type requirements.
(view into connector)
Pin 1 - 24V DC
Pin 3 - Common
Pin 4 - I/O 0 (M8-A)
I/O 1 (M8-B)
I/O 2 (M8-C)
I/O 3 (M8-D)
I/O 4 (M8-E)
I/O 5 (M8-F)
I/O 6 (M8-G)
I/O 7 (M8-H)
43583
(view into connector)
Pin 1 - 24V DC
Pin 2 - Not used
Pin 3 - Common
Pin 4 - I/O 0 (M12-A)
I/O 1 (M12-B)
I/O 2 (M12-C)
I/O 3 (M12-D)
I/O 4 (M12-E)
I/O 5 (M12-F)
I/O 6 (M12-G)
I/O 7 (M12-H)
Pin 5 - Not used
43664
