ArmorPoint I/O Modules with 8 Configurable 24V DC Points 7
Publication
1738-IN026B-EN-E - February 2010
2. Position the module vertically above the mounting base.
The module bridges two bases.
3. Push the module down until it engages the latching mechanism.
You will hear a clicking sound when the module is properly engaged.
The locking mechanism locks the module to the base.
Remove the Module From the Mounting Base
Follow the instructions to remove the module from the mounting base.
1. Put a flat blade screwdriver into the slot of the orange latching
mechanism.
2. Push the screwdriver toward the I/O module to disengage the latch.
The module lifts up off the base.
3. Pull the module off the base.
1738-8CFGM12
24V DC
MOD
NET
A
H
B
G
C
F
D
E
0
1
2
3
4
5
6
7

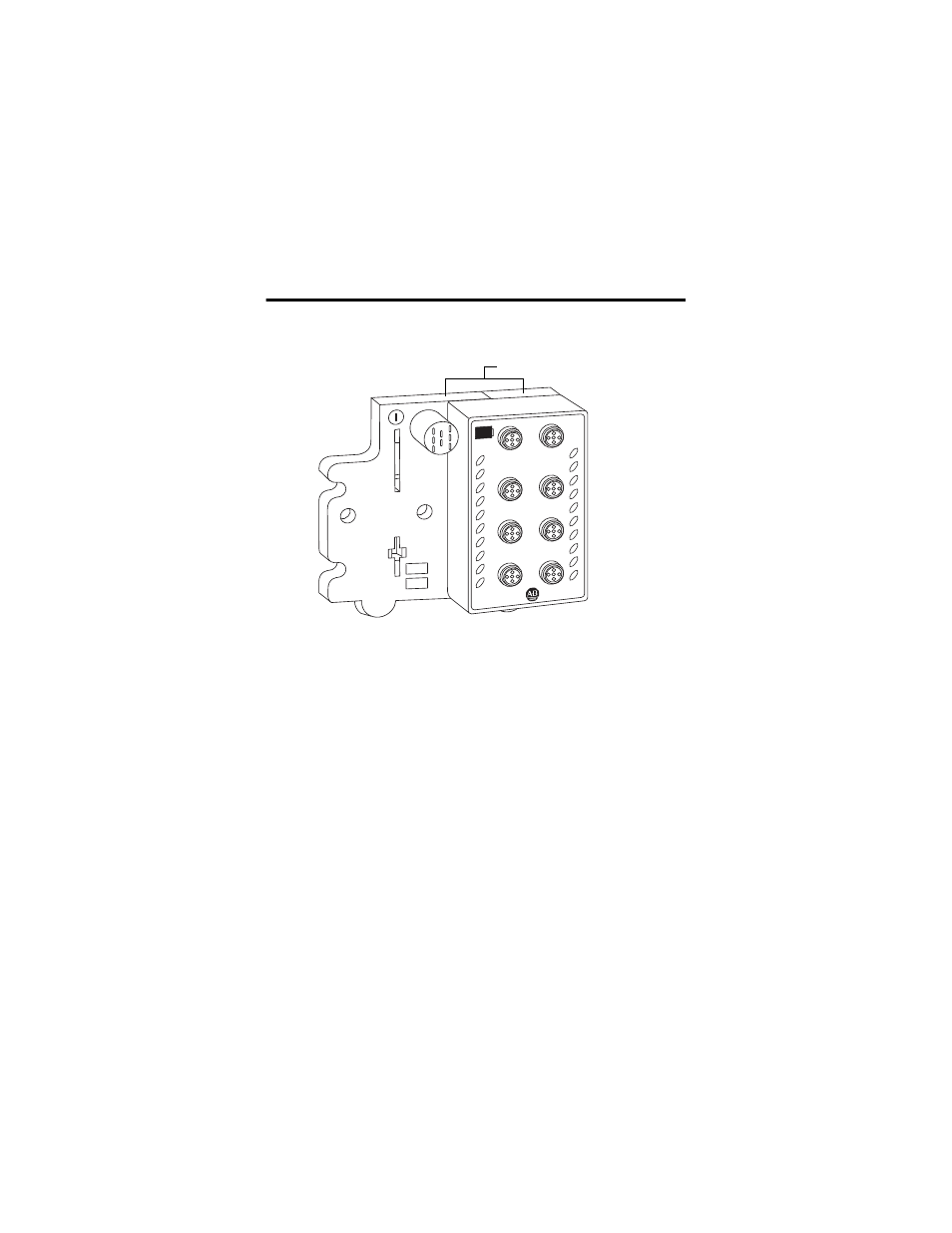

Module bridges two bases
43771
