ArmorPoint I/O Modules with 8 Configurable 24V DC Points 5
Publication 1738-IN026B-EN-E - February 2010
Mount the I/O Base
Mount the I/O base on a wall or panel, using the screw holes provided in the
base
.

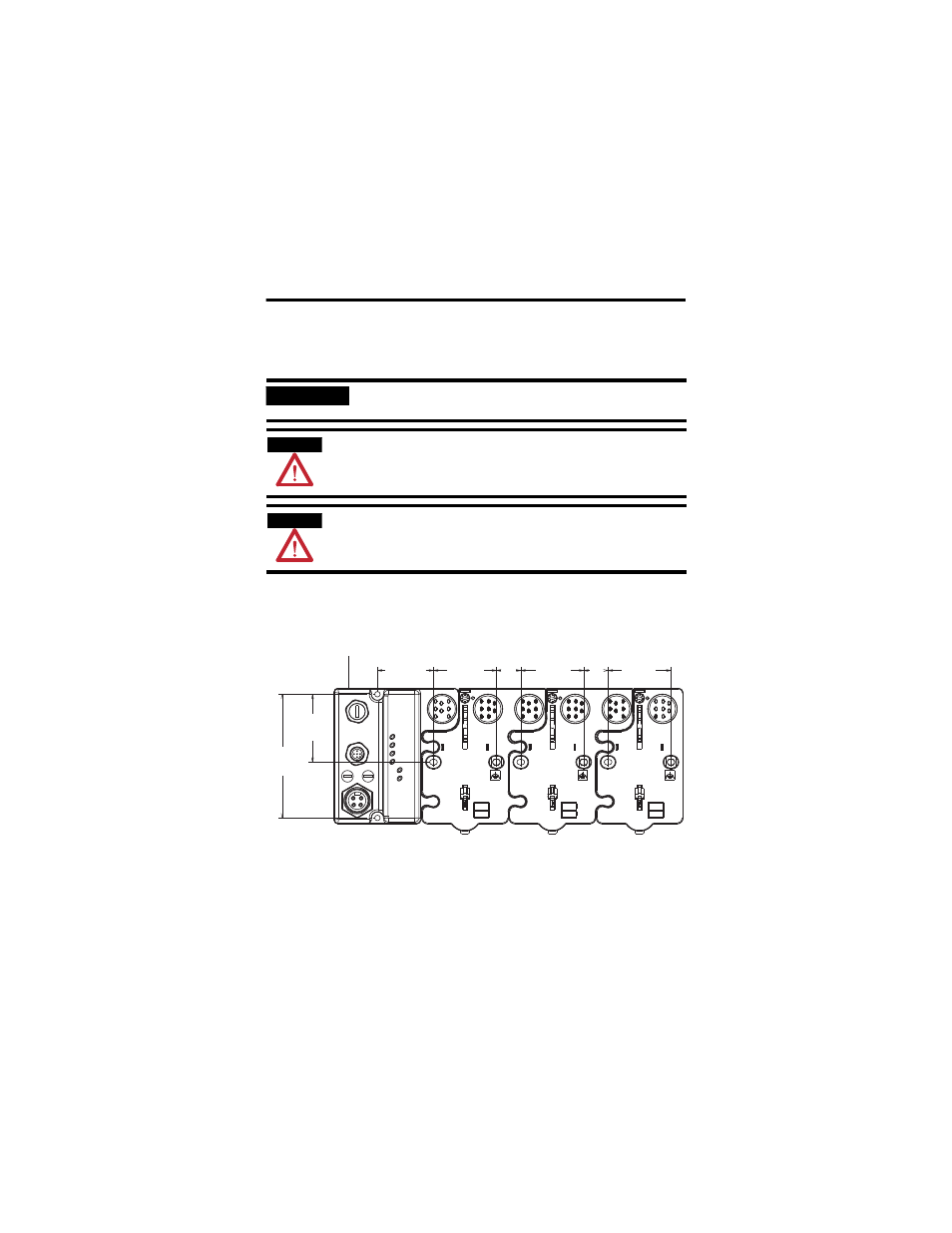

Mounting illustration for the ArmorPoint adapter with I/O bases
IMPORTANT
The ArmorPoint I/O module must be mounted on a grounded metal
mounting plate or other conductive surface.
ATTENTION
Make sure all connectors and caps are securely tightened to properly seal the
connections against leaks and maintain IP enclosure type requirements.
ATTENTION
To comply with the CE Low Voltage Directive (LVD), all connected I/O must be
powered from a source compliant with the following:
Safety Extra Low Voltage (SELV) or Protected Extra Low Voltage (PELV).
Adapter
102 mm
(4.02 in)
56 mm
(2.2 in)
46.25 mm
(1.8 in) 51.9 mm
(2.0 in)
20.1 mm
(0.8 in)
51.9 mm
(2.0 in) 51.9 mm
(2.0 in)
20.1 mm
(0.8 in)
43769
