Rockwell Automation 1500 Modular Protection System Conversion Kit (Bulletin 1406 to Bulletin 825 Plus) - Manual (Page 21)

1500-IN058D-EN-E – June 2013
Installation 4-9
3. Route the new wire harness along the low voltage door to the 825
Plus. (Figure 4.23)
4. Cut, strip, and connect each numbered wire to the corresponding
numbered green 825 Plus terminal plug.
5. Route the black converter module cable along the low voltage door
and plug the telephone style connector to the back of the 825 Plus.
Refer to the supplied wiring diagram during
installation of 825 Plus Interface Panel. Refer to the
Ordering Information section for Electrical Diagram
(ED) drawing number.
6. If the RTD option is used, refer to the 825 Plus RTD Scanner
Installation Guide (Appendix C) for additional information.
Failure to reconnect all wires and cables correctly
may result in equipment damage, personal injury
and/or death. A T T E N T I O N A T T E N T I O N
I M P O R T A N T I M P O R T A N T

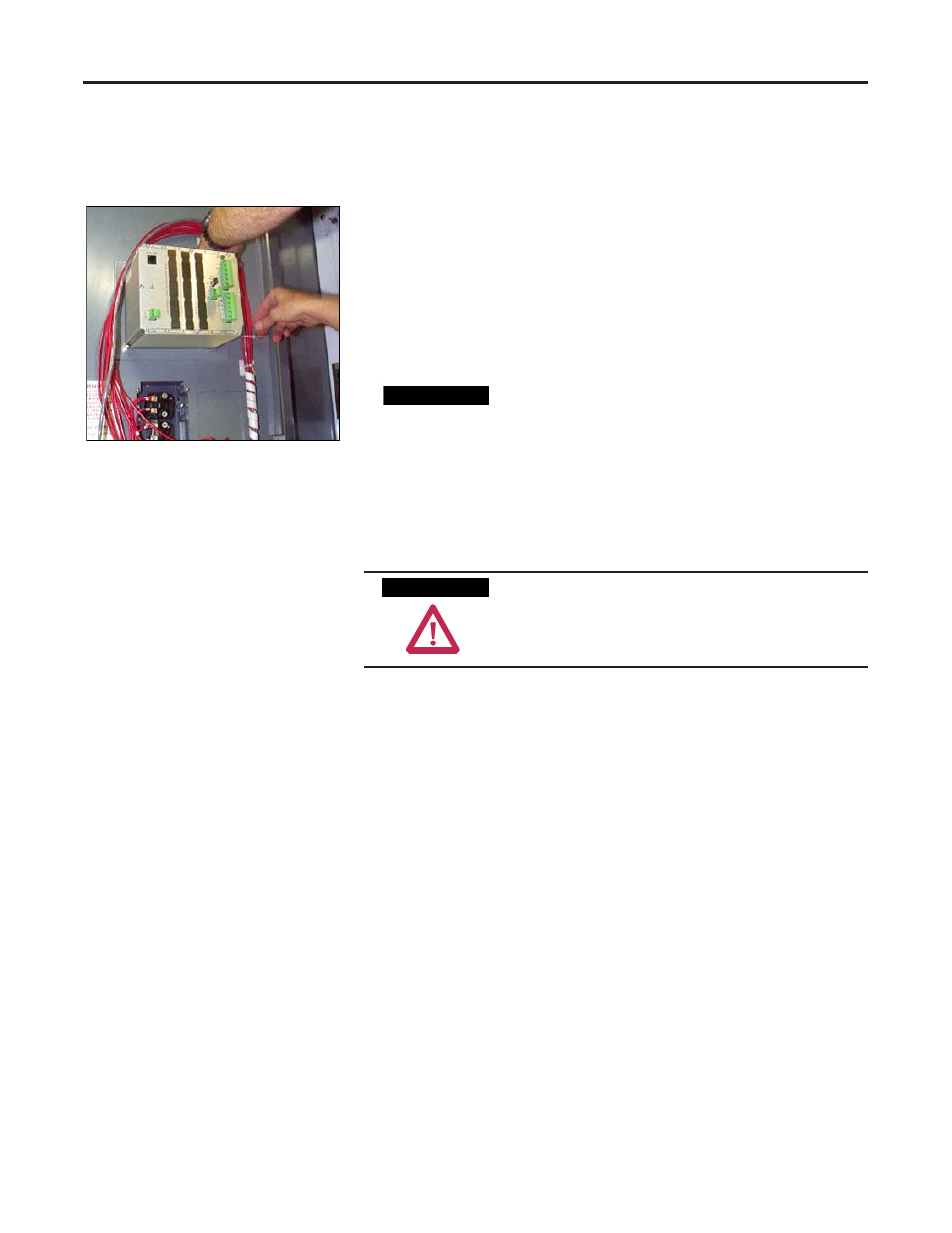

Figure 4.23
