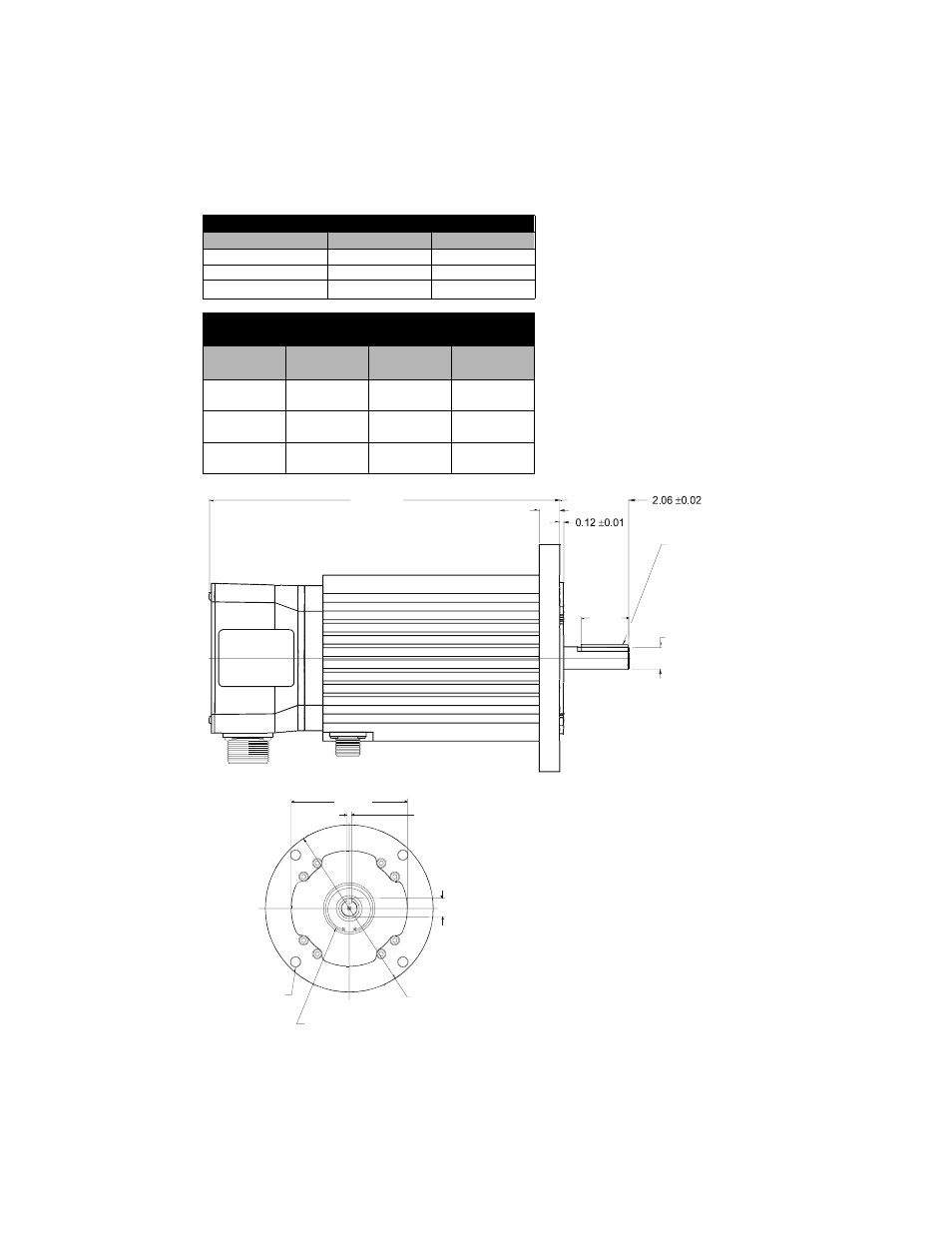

H-4000 Series NEMA 56C Motors
MOTOR DIMENSION -
Without Brake
With Brake
Motors
in/mm
in/mm
Note:
NEMA 56C motors are manufactured to
inch dimensions. Millimeter dimensions
are approximate conversions from
inches.
H-4030 NEMA 56C
8/39/213
10.47/266
H-4050 NEMA 56C
10.39/264
12.48/317
H-4075 NEMA 56C
12.40/315
14.49/368
SUPPLEMENTAL MOTOR DIMENSIONS
Length, from motor faceplate to center of connectors
Brake
Power
Encoder
Motors
(in/mm)
(in/mm)
(in/mm)
H-4030
---
7.24/184
7.24/184
H-4030 Brake
6.30/160
9.29/236
9.29/236
H-4050
---
9.25/235
9.25/235
H-4050 Brake
8.31/211
11.30/287
11.30/287
H-4075
---
11.26/286
11.26/286
H-4075 Brake
10.31/262
13.30/338
13.30/338
Intro
Intro
1.41
0.61
Length
(see motor dimension table above)
0.6250
0.6245 DIA
3/16 SQ X 1 3/8
KEY SUPPLIED
4.500
4.497 DIA
0.706
0.691
6.50
3/8” - 16 THRU
(4)
MOTOR WILL ACCEPT 47mm X20mm X 7mm
SHAFT SEAL (optional, not included)
0.1875
