Megadysc floor mounting, Megadysc, Figure 7 – Rockwell Automation 1608M MegaDySC User Manual, 800 Amp - 208V User Manual
Page 15

Rockwell Automation Publication 1608M-UM003A-EN-P - December 2013
15
Installation
Chapter 2

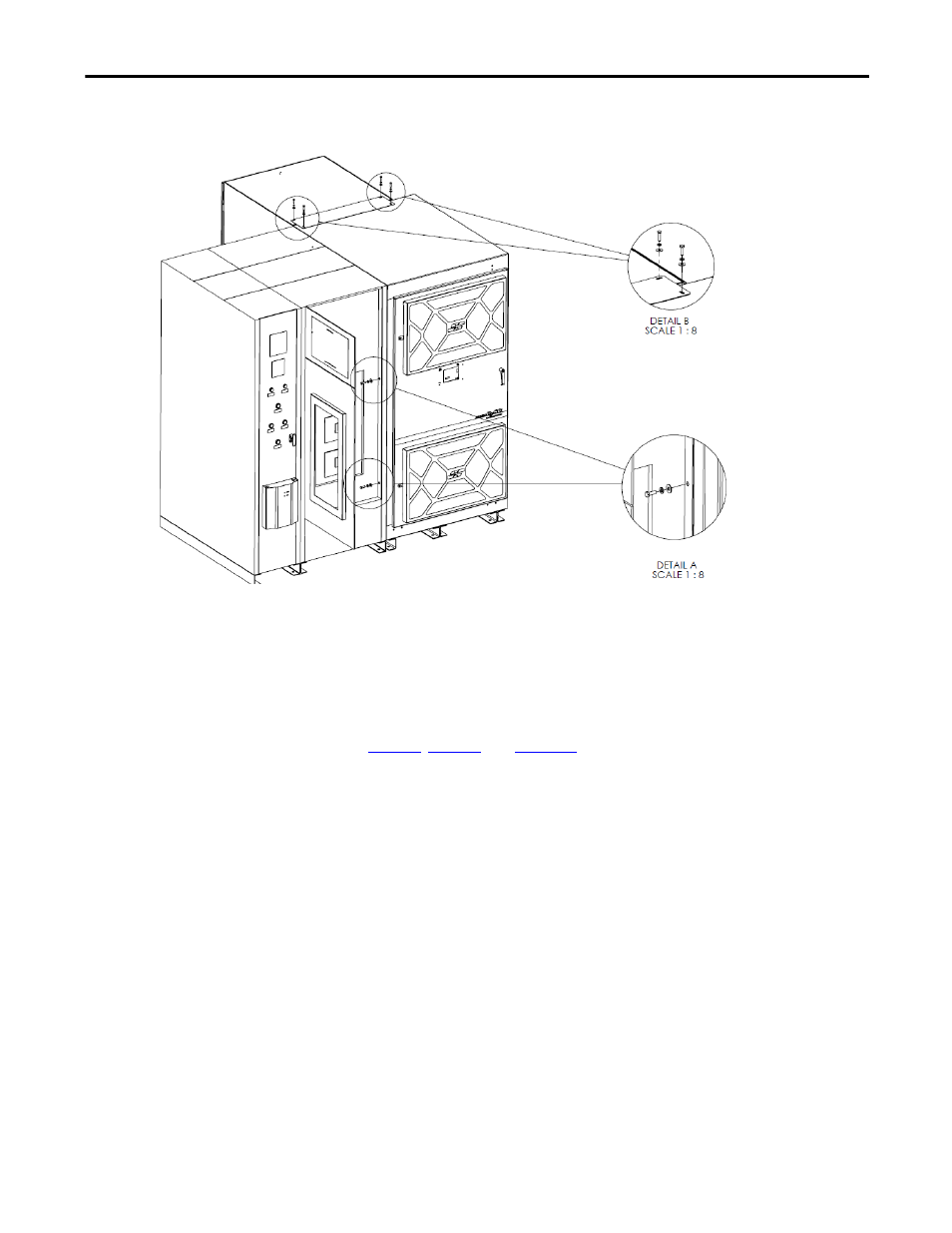

Figure 7 - Mechanical interconnections between 800A MegaDySC Module, Automatic Bypass
Switchboard, and ER Module for BTB layout
MegaDySC Floor Mounting
The MegaDySC system is floor-mounted, and should be secured using the
0.63 in. (15.9 mm) diameter mounting holes provided along the bottom
channels. The system should be secured to the floor in the locations indicated in
The minimum number of anchor bolts is 10 for SR systems and 14 for ER
systems:
•
Automatic Bypass Switchboard: 4 places (one in each corner)
•
800 A MegaDySC Module: 6 places (one in each corner and one in each
end of the middle rail)
•
ER Module: 4 places (one in each corner)
