Chapter 6, Display screen, Overview – Rockwell Automation 1608M MegaDySC User Manual, 800 Amp - 208V User Manual

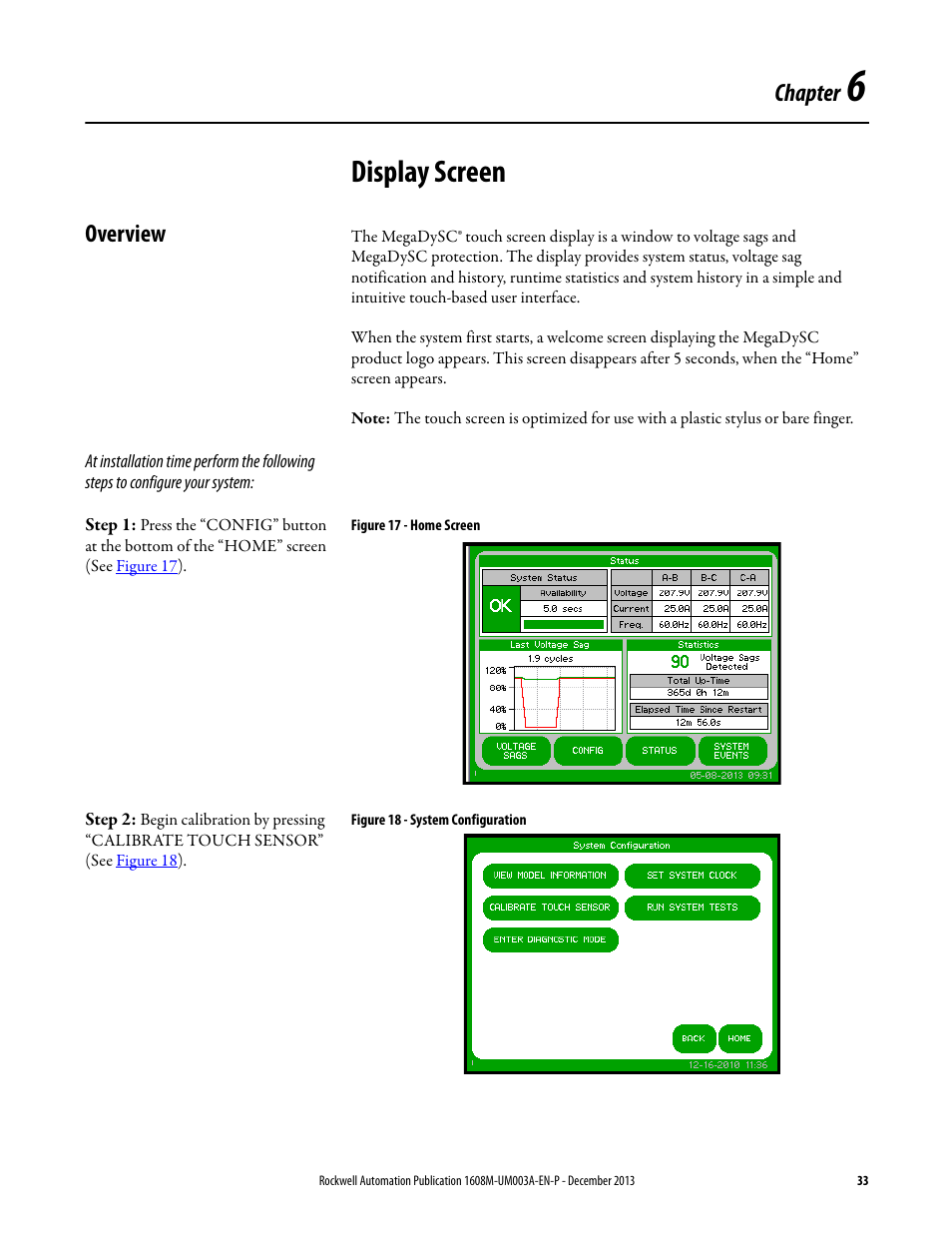

Page 33: Figure 17 - home screen, Figure 18 - system configuration, Home screen, Chapter
