Automatic system, Manual transfer to maintenance bypass, Press green “close cbb” push button – Rockwell Automation 1608M MegaDySC User Manual, 800 Amp - 208V User Manual
Page 27: Confirm that red “bypass closed” lamp is lit, Confirm that both cbi and cbo are open, Manual transfer to megadysc, Confirm green “ready to close cbi” lamp is on, Manually close breaker cbi, Manually close breaker cbo, Press red “open cbb” push button

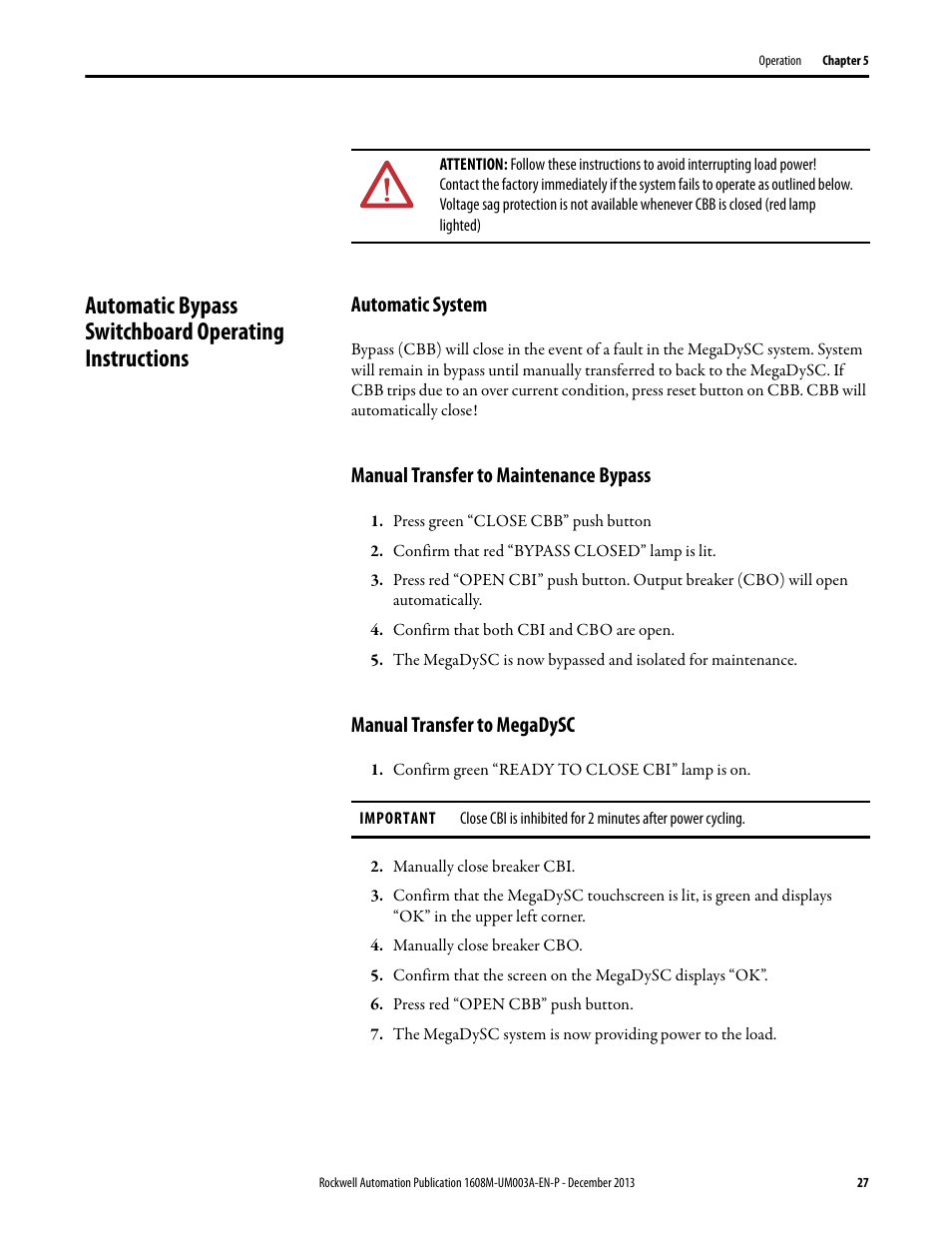

Automatic system, Manual transfer to maintenance bypass, Press green “close cbb” push button | Confirm that red “bypass closed” lamp is lit, Confirm that both cbi and cbo are open, Manual transfer to megadysc, Confirm green “ready to close cbi” lamp is on, Manually close breaker cbi, Manually close breaker cbo, Press red “open cbb” push button | Rockwell Automation 1608M MegaDySC User Manual, 800 Amp - 208V User Manual | Page 27 / 54 See also other documents in the category Rockwell Automation Equipment:
