Megadysc system installation connections checklist – Rockwell Automation 1608M MegaDySC User Manual, 800 Amp - 208V User Manual

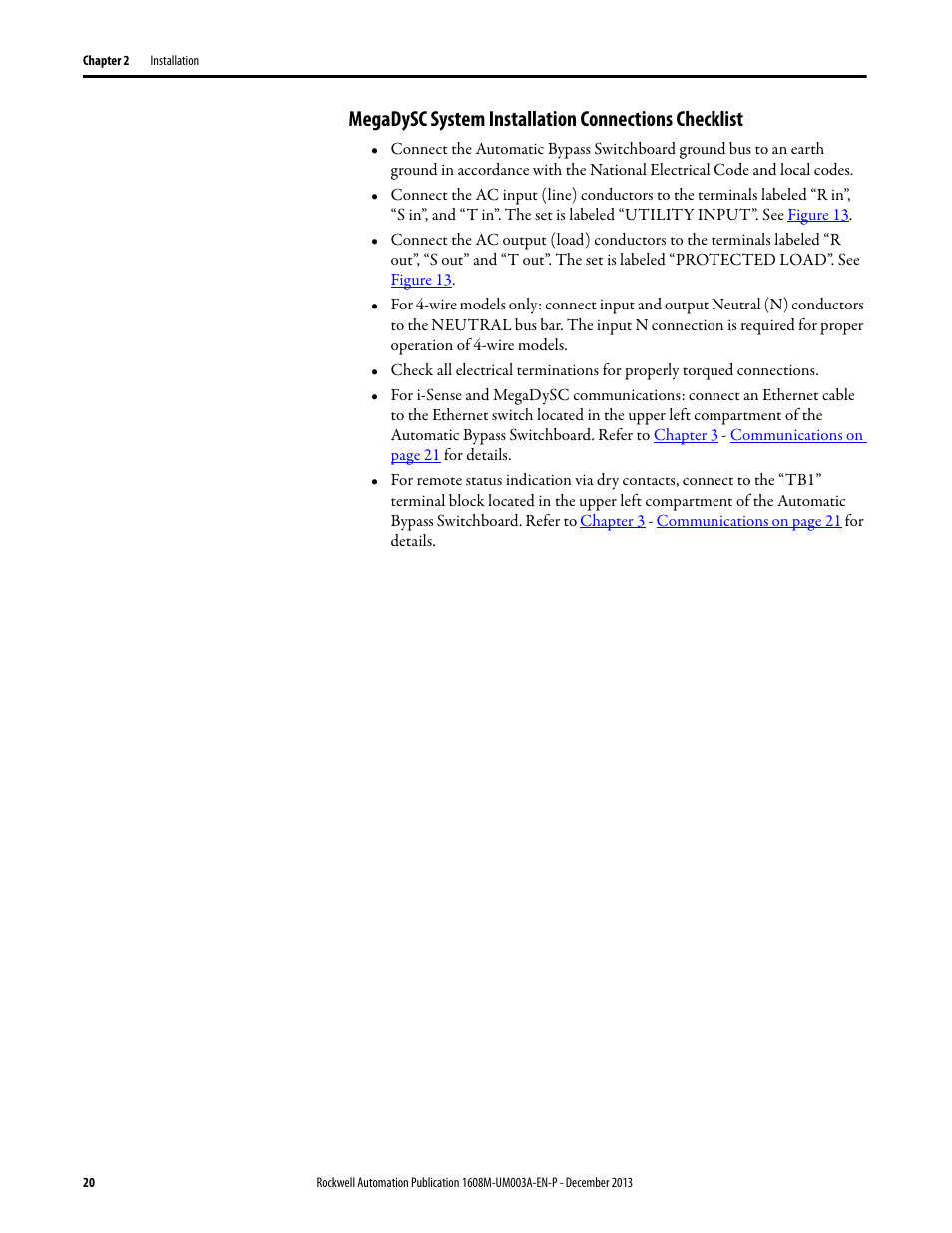

Page 20
