1204 Terminator (Class 1, Division 2)
Dimensions, Weights and Cable
Locations

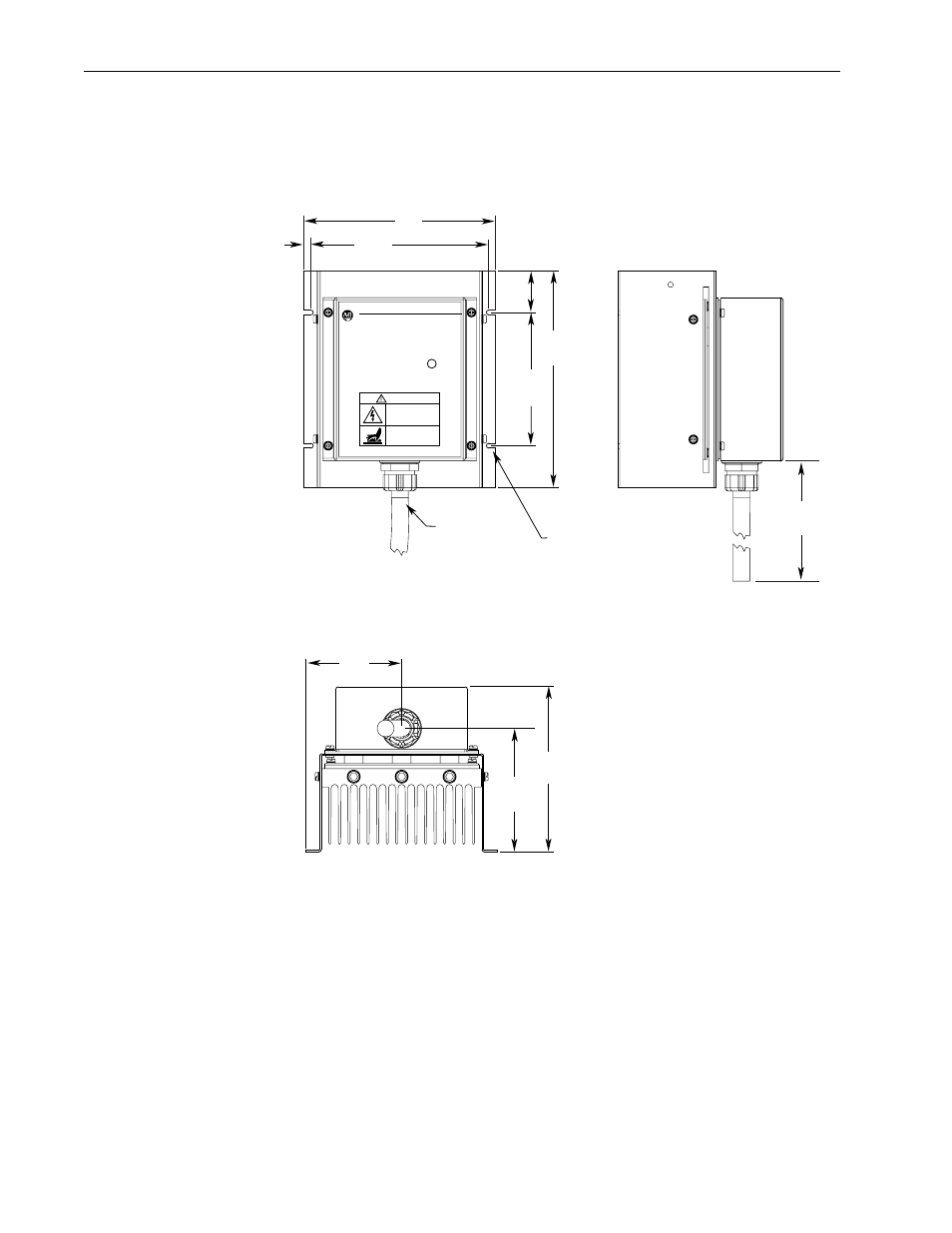

Refer to the following diagram for terminator dimensions and cable
locations. The dimensions are given in millimeters and (inches). The
terminator weighs 3.86 kilograms (8.5 pounds).
14.2
(0.56)
6.4
(0.25)
182.9
(7.20)
170.2
(6.70)
127.0
(5.00)
155.5
(6.12)
158.8
(6.25)
117.9
(4.64)
BOTTOM
SIDE
FRONT
Out-Going Cable
(4) Slots for M4 Hardware
DANGER
CAN CAUSE SHOCK,
BURNS, OR DEATH
DISCONNECT AND LOCKOUT
ALL POWER SOURCES
BEFORE SERVICING
SURFACES
MAY BE HOT
ALLOW TO COOL
BEFORE SERVICING
Assembled in Mexico
See Instruction Manual For Mounting Instructions
Allen-Bradley
Motor Terminator
Approximately
3048 (120)
88.9
(3.50)
Bulletin 1204–TFXX Series A
AC Drive HP ZZZZ
Voltage WWWW VAC
Max. Carrier Freq. Y KHz
Type 4X Enclosure
Hazardous Locations
Class I, Division 2
Groups A, B, C, D
Temperature Code T3 (200˚ c)
UL
®
C
US
LISTED
IND. CONT. EQ.
FOR USE IN HAZ. LOC.
8AA4
