Page 8

8
Rockwell Automation Publication 1608P-UM001A-EN-P - July 2013
Chapter 2
Installation
Mounting the ProDySC
Using the 3/8" hardware and four (4) wall mounting brackets supplied, mount
the wall mount brackets to the back of the ProDySC. Mount each bracket to the
back of the ProDySC with a single 3/8"-16 x 1" hex cap head screw. Mount the
brackets so the flat portion of the mounting bracket is against the back of the
ProDySC. Bolt two 2 x 4 pieces of lumber horizontally to the wall using 3/8" by
4" hex-head lag bolts.
Make certain that:
1.
The lag bolts line up with the wall studs.
2.
The distance between the centers of the pieces of lumber is equal to the
distance between the centers of the mounting holes. Refer to
.
3.
Bolt unit to the 2 x 4 pieces of lumber with (4) 3/8" by 2" long hex-head lag
bolts.
NOTICE: Weights and complete mounting dimensions are provided in Chapter

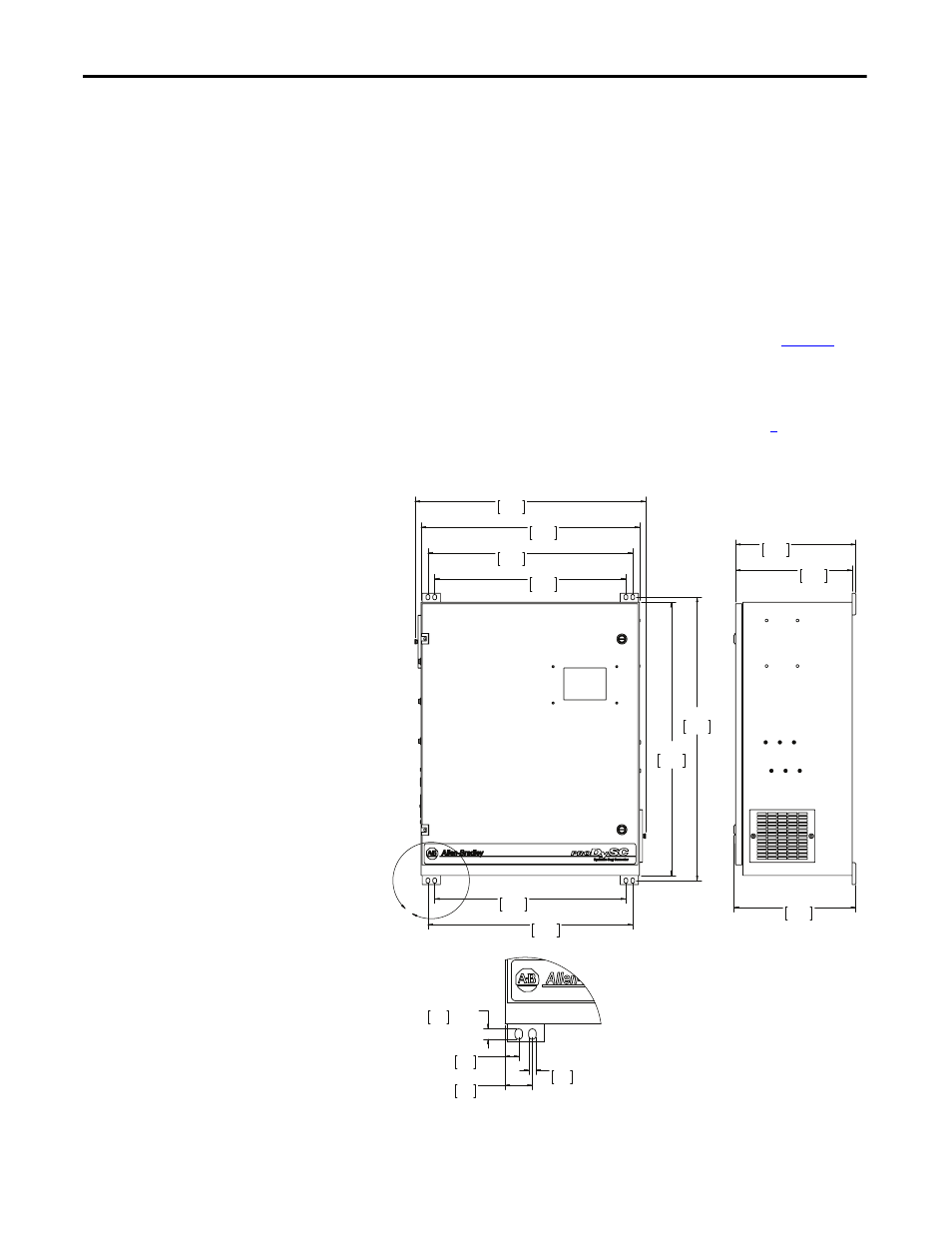

Figure 1 - 25 A Mounting dimensions, in. [mm]
21.00
533
22.50
572
24.00
610
25.35
644
30.00
762
21.00
533
22.50
572
31.13
791
A
12.80
325
13.21
336
13.39
340
.57
14
TYP.
.75
19
1.50
38
.41
10
TYP.
DETAIL A
4 PLACES
