Publication 1326-IN025B-EN-P - May 2007
Bulkhead Connections for Series B 1326 Cables 5
1326-CPB1-DE-xxx, 1326-CPB1T-DL, 1326-CPC1-DE-xxx and
1326-CPC1T-DL Wiring
This table provides wiring information for the 1326-CPB1x-Dx-xxx cables.

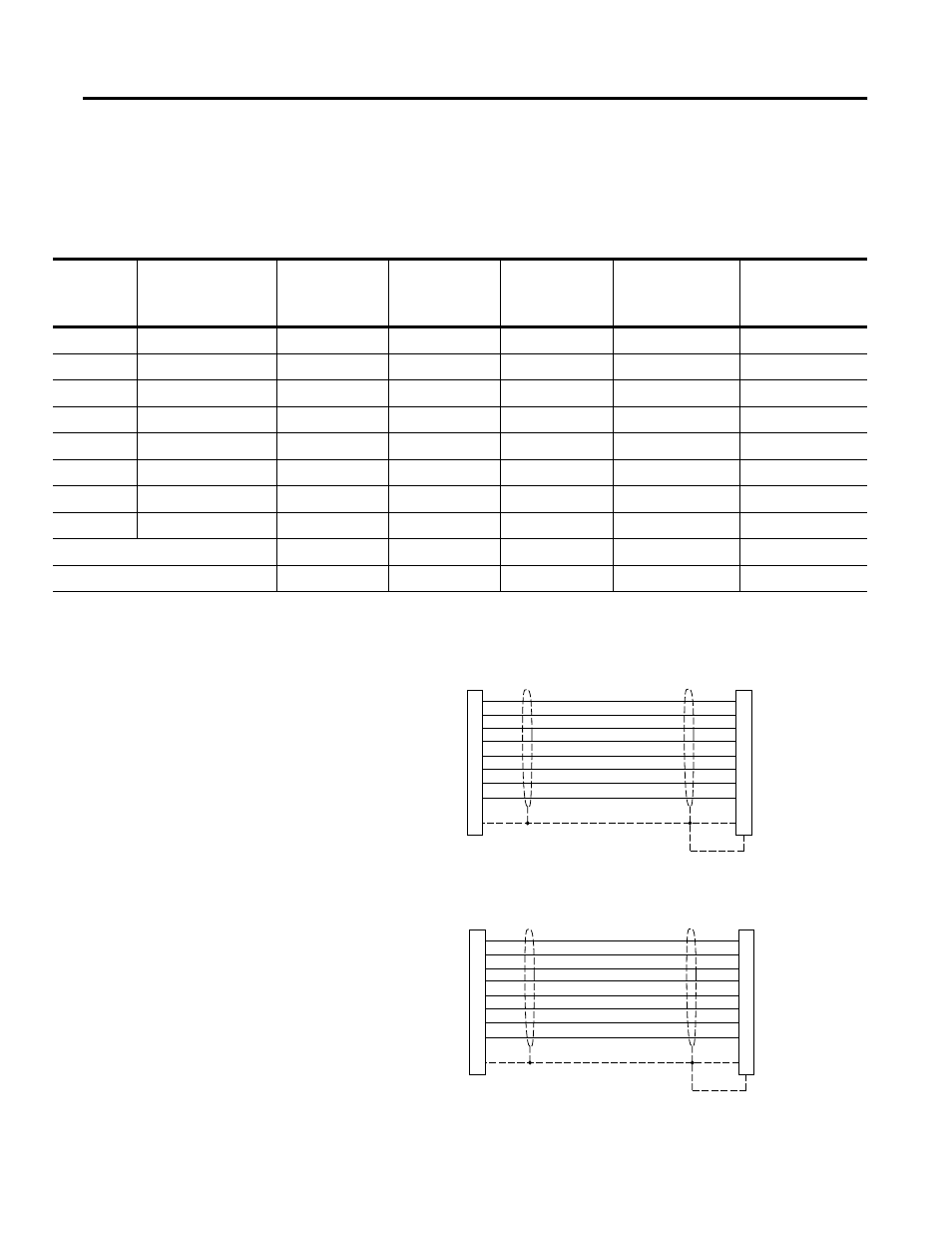

1326-CPB1-DE-xxx and 1326-CPC1-DE-xxx Cable Wiring Diagram
1326-CPB1T-DL-xxx and 1326-CPC1T-DL-xxx Cable Wiring Diagram
Wire
Number Signal Wire Color 1326-CPB1x
Gauge
mm
2
(AWG)
1326-CPC1x
Gauge
mm
2
(AWG)
1326-CPx1-DE
Male Connector
Pin 1326-CPx1T-DL
Female Connector
Contact
1 Power Black 1.29 (16) 2.59 (10) 1 1
2 Power Black 1.29 (16) 2.59 (10) 2 2
3 Power Black 1.29 (16) 2.59 (10) 3 3
4 Power Black 1.29 (16) 1.29 (16) 4 4
5 Power Black 1.29 (16) 1.29 (16) 5 5
6 Power Black 1.29 (16) 1.29 (16) 6 6
8 GND Green/Yellow 1.29 (16) 2.05 (12) 8 8
9 Brake Black 1.29 (16) 2.05 (12) 9 9
Overall shield Shield 1.29 (16) 1.29 (16) 7 7
Overall shield Braid N/A N/A N/A Connected to shell
1
2
3
4
5
6
8
9
7
Wire #1
Wire #2
Wire #3
Wire #4
Wire #5
Wire #6
Green/Yellow
Wire#9
Shield
1
2
3
4
5
6
8
9
7
Male
Connector
Pin
Female
Connector
Contact
Bulkhead
1
2
3
4
5
6
8
9
7
Wire #1
Wire #2
Wire #3
Wire #4
Wire #5
Wire #6
Green/Yellow
Wire#9
Shield
Male
Connector
Pin
1
2
3
4
5
6
8
9
7
Female
Connector
Contact
