Publication 1326-IN025B-EN-P - May 2007
Bulkhead Connections for Series B 1326 Cables 3

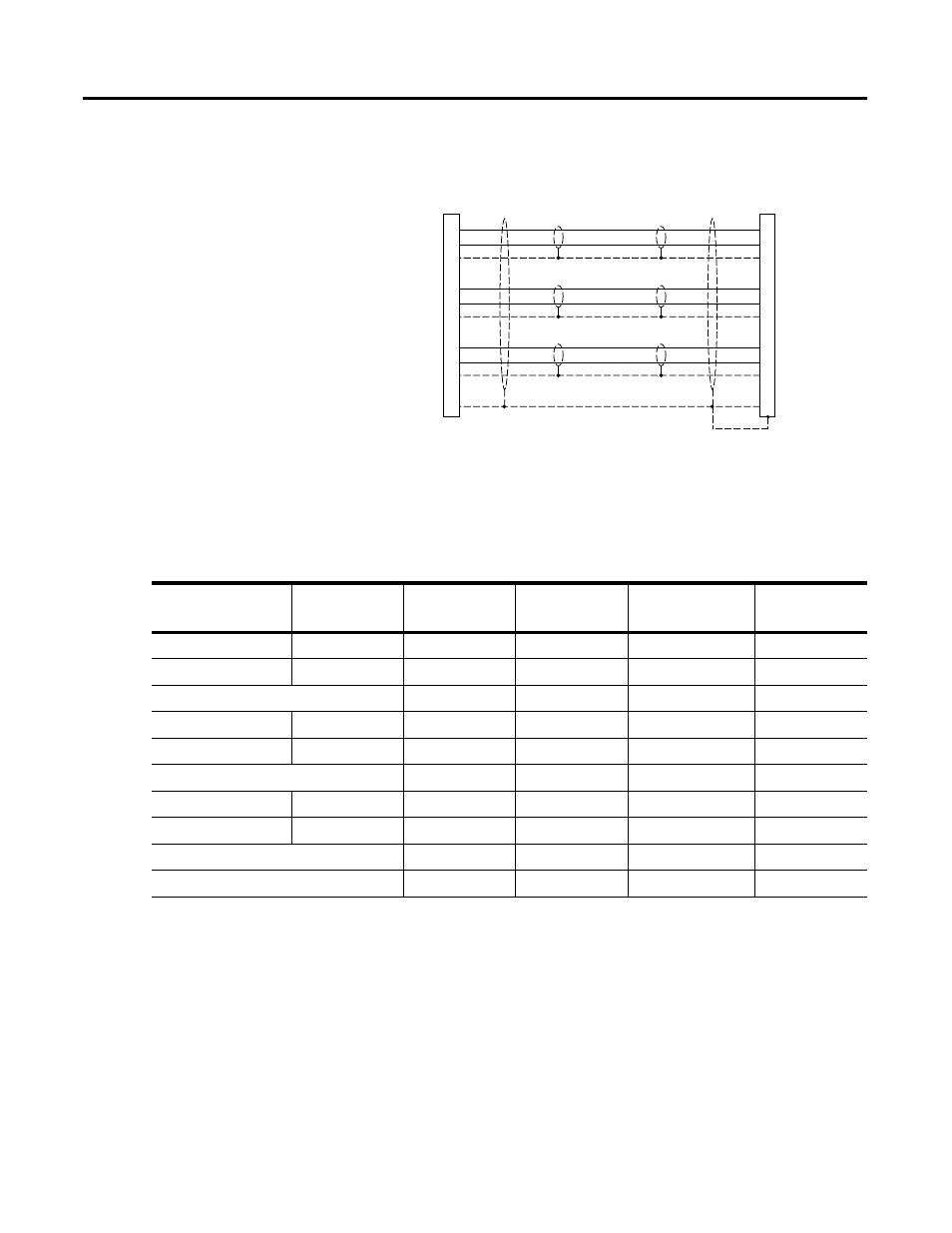

1326-CCUT-DL-xxx Cable Wiring Diagram
1326-CCUx-Ex-xxx Wiring
This table provides wiring information for the 1326-CCUx-Ex-xxx cables.
Pair #1: Black
Pair #1: White
Shield
Pair #2: Black
Pair #2: Red
Shield
Pair #3: Black
Pair #3: Green
Shield
Shield
A
B
C
D
E
F
H
G
I
J
A
B
C
D
E
F
H
G
I
J
Male
Connector
Pin
Female
Connector
Contact
Bulkhead
Signal Wire Color Gauge
mm
2
(AWG)
Connector Pin 1326-CCUT-EE
Terminal Number 1326-CCUT-EL
Connector Pin
Axis_0_R1 Black 0.518 (20) A 1 A
Axis_0_R2 White 0.518 (20) B 6 B
Shield 0.518 (20) C 2 C
Axis_0_S1 Black 0.518 (20) D 3 D
Axis_0_S3 Red 0.518 (20) E 8 E
Shield 0.518 (20) F 7 F
Axis_0_S4 Black 0.518 (20) H 9 H
Axis_0_S2 Green 0.518 (20) G 4 G
Shield 0.518 (20) I 5 I
Overall shield N/A J 10 J
