Page 24
24
Rockwell Automation Publication 1425-UM001A-EN-P - January 2012
Chapter 2
Hardware Installation
DIN Rail Mounting
1. Clip the PowerMonitor W250 unit onto the DIN rail.
2. Pull up the top clip (see detail) to remove the PowerMonitor W250 unit
from the DIN rail.

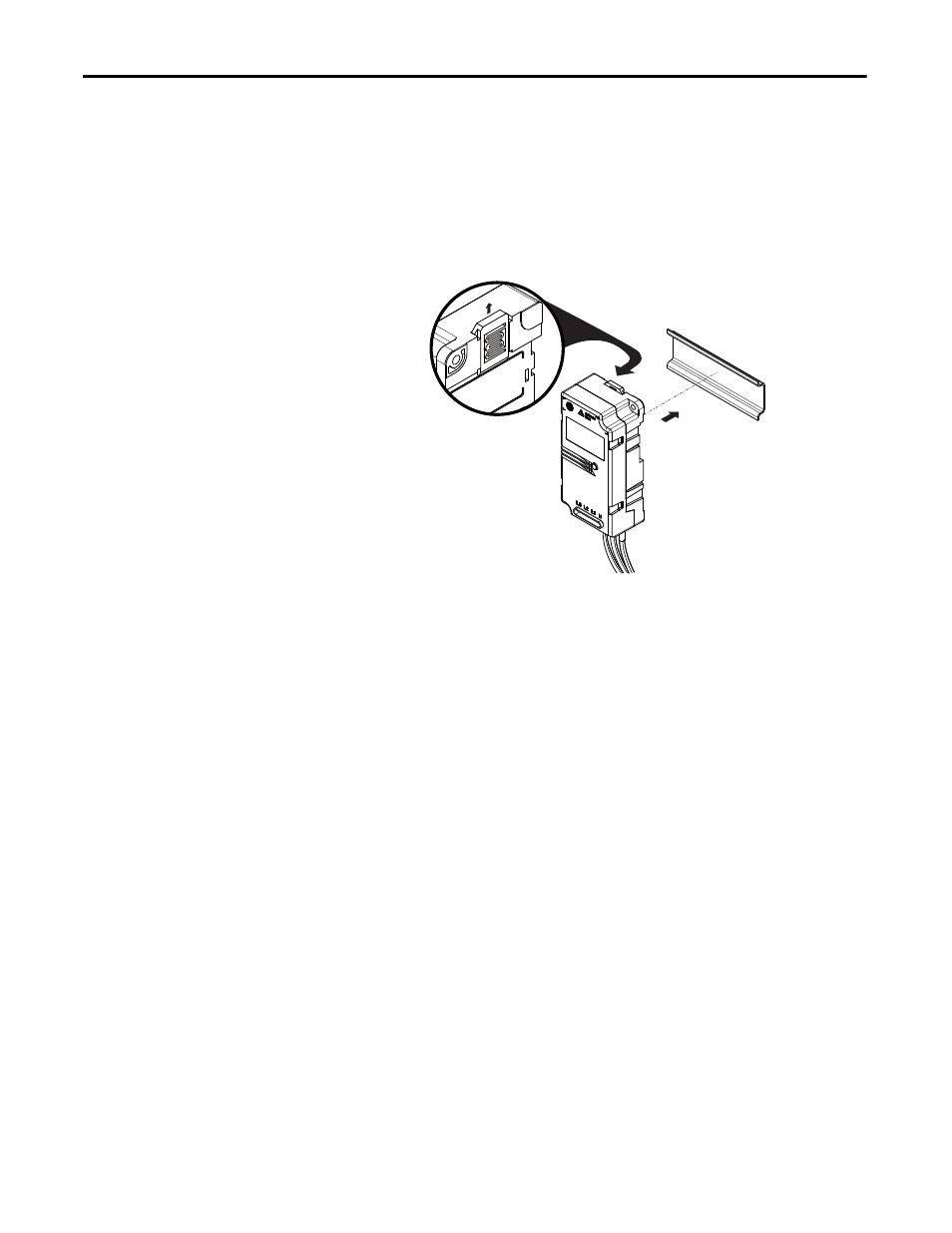

Figure 17 - DIN Rail Mounting
PowerMonitor W250 Unit
Wiring
This section shows the types of wiring and how to connect the
PowerMonitor W250 unit.
