Bulletin 1606 Switched Mode Power Supplies
17.6. Mounting Orientations
Mounting orientations other than input terminals on the bottom and output on the top require a reduction in
continuous output power or a limitation in the maximum allowed ambient temperature. The amount of reduction
influences the lifetime expectancy of the power supply. Therefore, two different derating curves for continuous
operation can be found below:
Curve A1 Recommended
output
current.
Curve A2
Max allowed output current (results in approximately half the lifetime expectancy of A1).

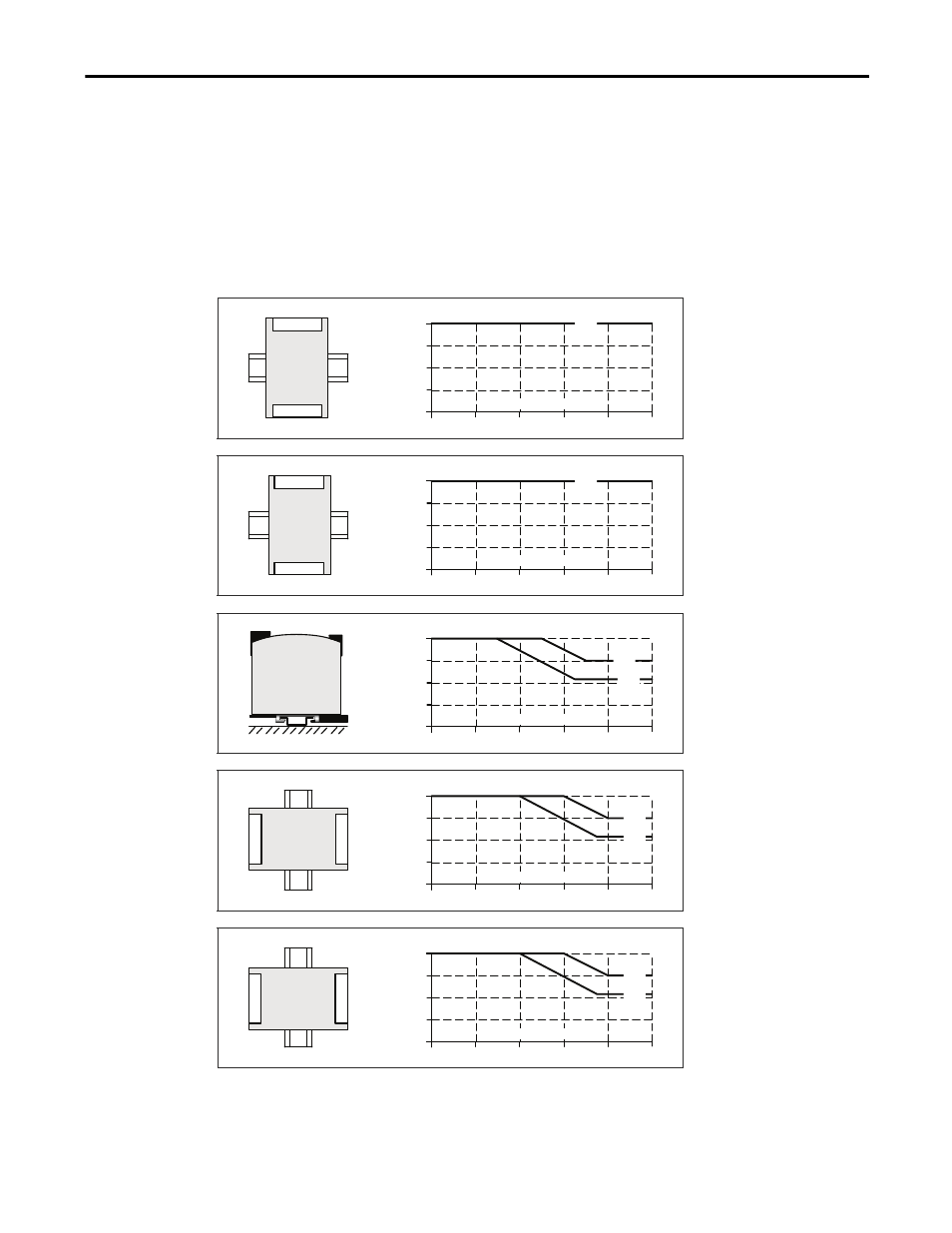

Fig. 17-3
Mounting
Orientation A
(Standard
orientation)
Redundancy
Module
OUTPUT
INPUTS
Output Current
0
20
30
40
50
70°C
20
40
60
80A
60
A1
Ambient Temperature
Fig. 17-4
Mounting
Orientation B
(Upside down)
Redundancy
Modul
e
OUTPU
T
INPUTS
Output Current
0
20
30
40
50
70°C
20
40
60
80A
60
A1
Ambient Temperature
Fig. 17-5
Mounting
Orientation C
(Table-top
mounting)
Output Current
0
20
30
40
50
70°C
20
60
80A
60
40
A1
A2
Ambient Temperature
Fig. 17-6
Mounting
Orientation D
(Horizontal cw)
Redundancy
Modul
e
OUTPUT
INPUTS
Output Current
0
20
30
40
50
70°C
20
60
80A
60
40
A1
A2
Ambient Temperature
Fig. 17-7
Mounting
Orientation E
(Horizontal ccw)
Redundancy
Modul
e
OUTPUT
INPUTS
Output Current
0
20
30
40
50
70°C
20
60
80A
60
40
A1
A2
Ambient Temperature
