All parameters are specified at 24V, 80A output current, 25ªC ambient and after a 5 minutes run-in time, unless noted otherwise.
Rockwell Automation Publication 1606-RM011A-EN-P — February 2014 11
Bulletin 1606 Switched Mode Power Supplies
11. Protection Features
Output over-current protection not included
Reverse input polarity
protection
included Unit does not start when input voltage is reversed.
Degree of protection IP 20 EN/IEC 60529
Penetration protection > 3.6mm e.g. screws, small parts
Over-temperature protection not included
Input transient protection not included
Output transient protection included See EMC section.
Internal input fuse not included
12. Safety Features
Input / output separation no galvanic separation Mosfet between input and output
Class of protection III PE (Protective Earth) or chassis connection not required
PE resistance < 0.1Ohm between housing and chassis-ground terminal
13. Dielectric Strength
The input and output voltages have the same reference, are floating and have no ohmic connection to the ground.
Type and factory tests are conducted by the manufacturer. Field tests may be conducted in the field using the
appropriate test equipment which applies the voltage with a slow ramp (2s up and 2s down). Connect input/output
terminals together before conducting the test.
When testing, set the cut-off current settings to the value in the table below.

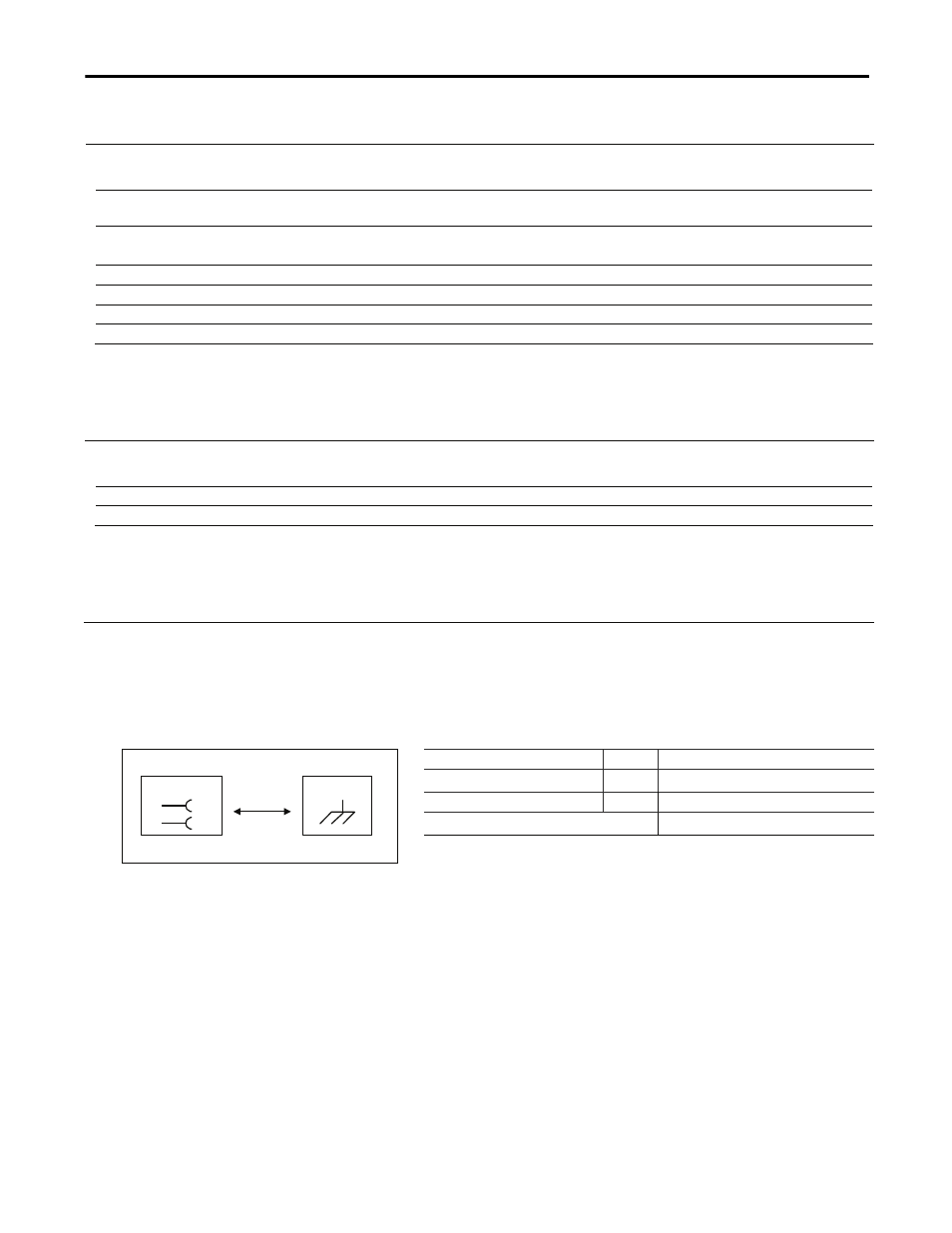

Fig. 13-1 Dielectric strength A
Type test 60s 500Vac
Factory test 5s 500Vac
Field test 5s 500Vac
Cut-off current setting > 2mA
A
Chassis In- / Output
-
+
