Initial Setup 2-23
General Calibration:
Plot a card with a row of X’s going vertically down the marker tags, and
with a row going horizontally across the marker tags.
-If the X’s are centered on all of the tags, do not change any calibration
settings and move onto plotting your cards.
-If the X’s are not centered, follow the steps on the next page.

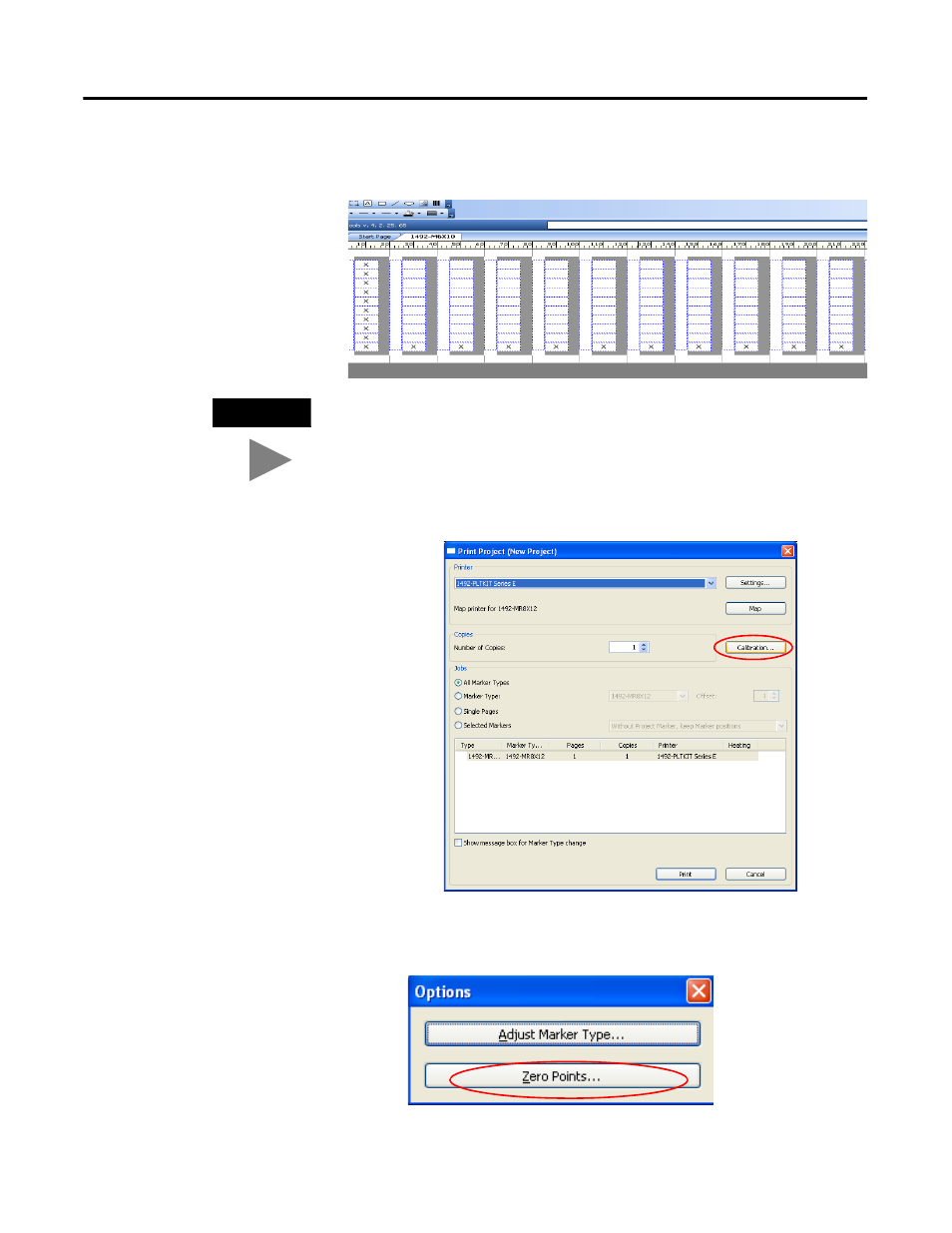

1. Go to File to Print and select “Calibration”
2. Select “Zero Points”
