GuardShield™ Safety Light Curtain User Manual
32
R
Original instructions

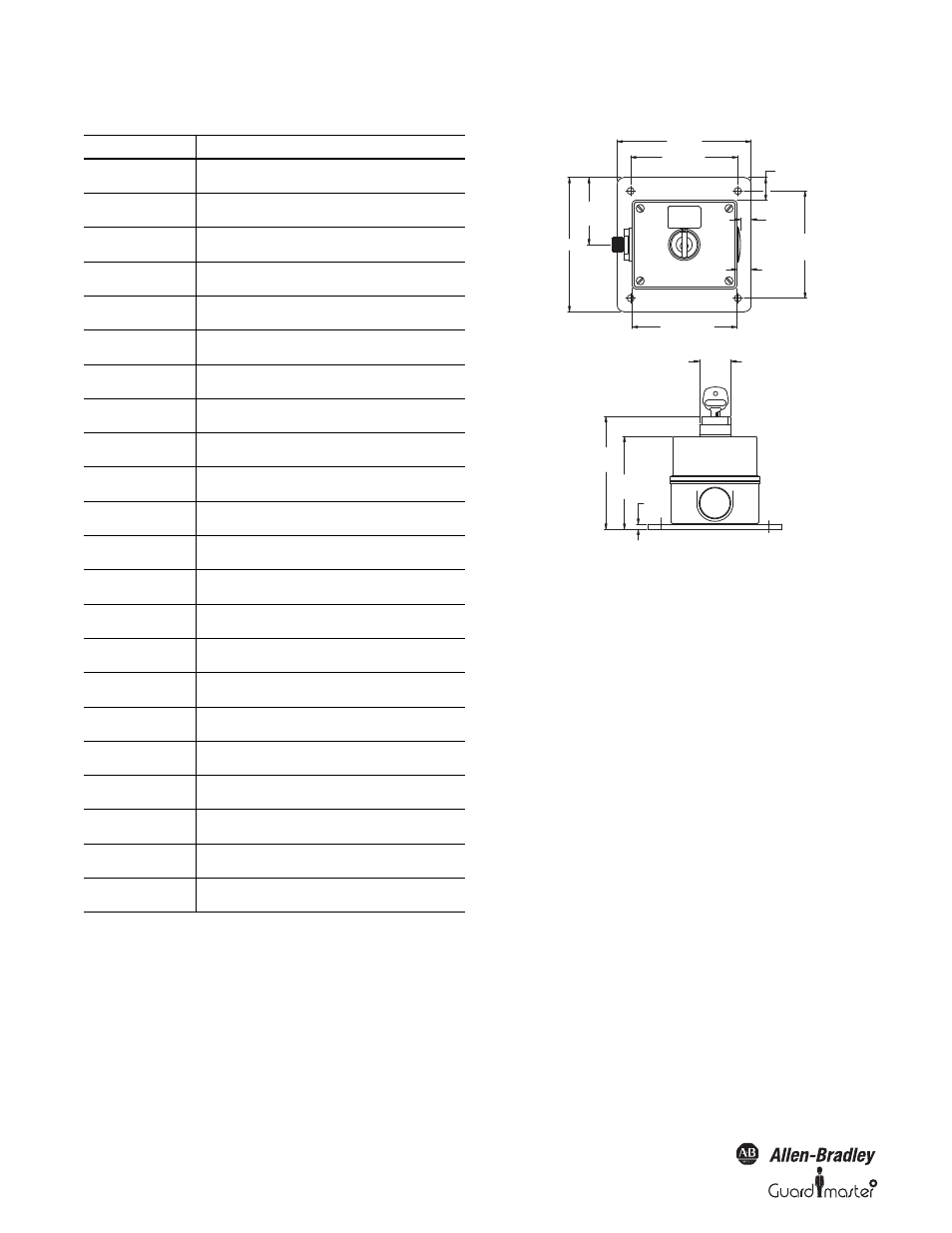

Remote Teach Receiver Dimensions [mm (in.)]
Catalog Number Description
440L-R4J0160YR
Receiver, GuardShield Remote Teach, 160 mm protective height, 14 mm
resolution
440L-R4J0320YR
Receiver, GuardShield Remote Teach, 320 mm protective height, 14 mm
resolution
440L-R4J0480YR
Receiver, GuardShield Remote Teach, 480 mm protective height, 14 mm
resolution
440L-R4J0640YR
Receiver, GuardShield Remote Teach, 640 mm protective height, 14 mm
resolution
440L-R4J0800YR
Receiver, GuardShield Remote Teach, 800 mm protective height, 14 mm
resolution
440L-R4J0960YR
Receiver, GuardShield Remote Teach, 960mm protective height, 14 mm
resolution
440L-R4J1120YR
Receiver, GuardShield Remote Teach, 1120 mm protective height, 14 mm
resolution
440L-R4J1280YR
Receiver, GuardShield Remote Teach, 1280 mm protective height, 14 mm
resolution
440L-R4J1440YR
Receiver, GuardShield Remote Teach, 1440 mm protective height, 14 mm
resolution
440L-R4J1600YR
Receiver, GuardShield Remote Teach, 1600 mm protective height, 14 mm
resolution
440L-R4J1760YR
Receiver, GuardShield Remote Teach, 1760 mm protective height, 14 mm
resolution
440L-R4K0160YR
Receiver, GuardShield Remote Teach, 160 mm protective height, 30 mm
resolution
440L-R4K0320YR
Receiver, GuardShield Remote Teach, 320 mm protective height, 30 mm
resolution
440L-R4K0480YR
Receiver, GuardShield Remote Teach, 480 mm protective height, 30 mm
resolution
440L-R4K0640YR
Receiver, GuardShield Remote Teach, 640 mm protective height, 30 mm
resolution
440L-R4K0800YR
Receiver, GuardShield Remote Teach, 800 mm protective height, 30 mm
resolution
440L-R4K0960YR
Receiver, GuardShield Remote Teach, 960mm protective height, 30 mm
resolution
440L-R4K1120YR
Receiver, GuardShield Remote Teach, 1120 mm protective height, 30 mm
resolution
440L-R4K1280YR
Receiver, GuardShield Remote Teach, 1280 mm protective height, 30 mm
resolution
440L-R4K1440YR
Receiver, GuardShield Remote Teach, 1440 mm protective height, 30 mm
resolution
440L-R4K1600YR
Receiver, GuardShield Remote Teach, 1600 mm protective height, 30 mm
resolution
440L-R4K1760YR
Receiver, GuardShield Remote Teach, 1760 mm protective height, 30 mm
resolution
RUN TEACH
CONFIG
127 (5)
101.6 (4)
63.5
(2.5)
127 (5)
21.59 (0.85)
10.16
(0.4)
101.6
(4)
13.33
(0.525)
99.3 (3.91)
29.72
(1.17)
Dia.
106.68
(4.2)
87.63
(3.45)
4.75
(0.187)
