GuardShield™ Safe 4 Safety Light Curtain User Manual
11
Original instructions

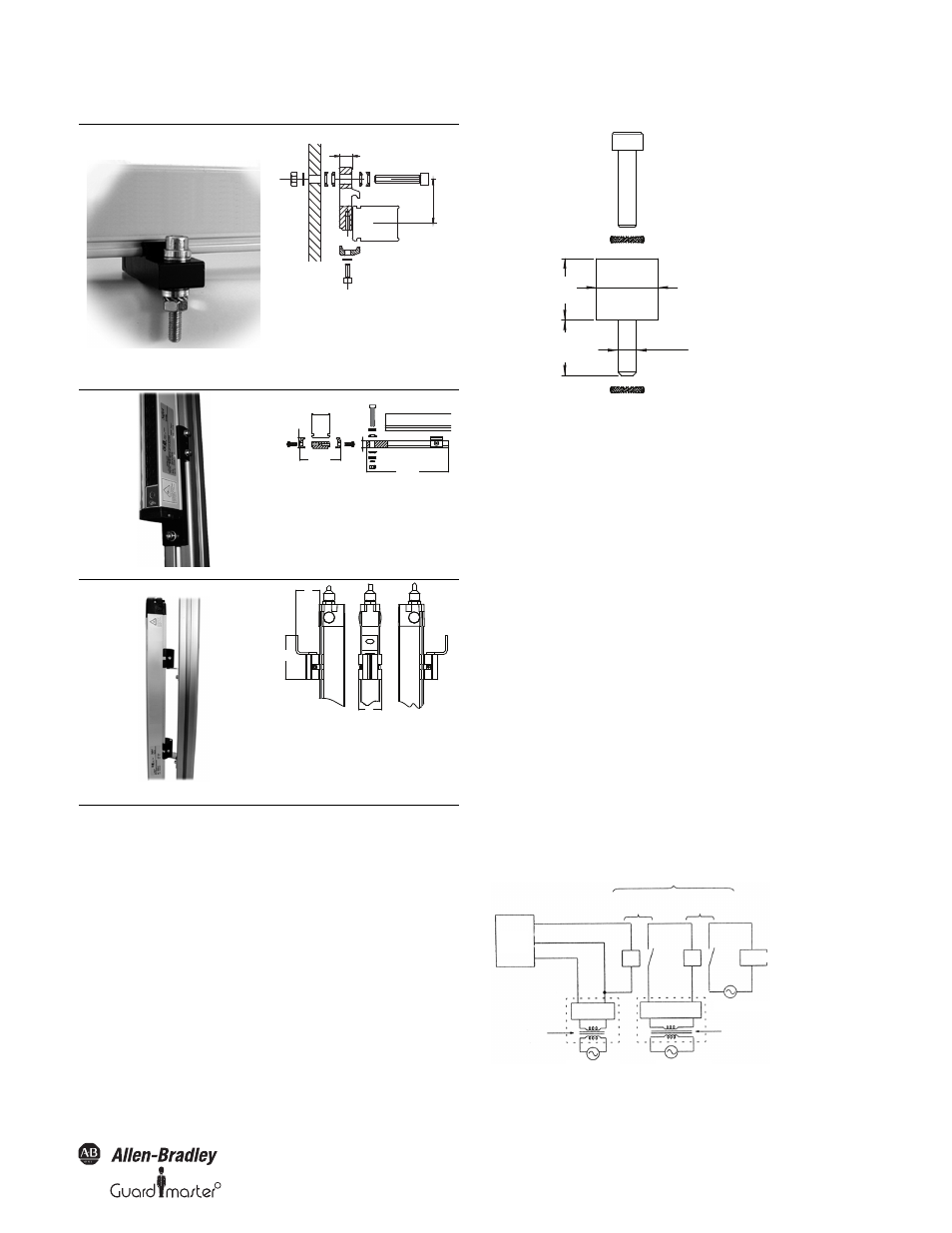

Figure 11: Different mounting brackets for Safe 4
Safe 4 Shock Mounting Kit
Rockwell Automation offers a shock and vibration isolation kit for
vertically mounting the Safe 4. This kit is most effective in
protecting the internal optical and electronic components of the
Safe 4 light curtain. The best performance of the shock and
vibration isolation kit is attained when the kit is used in
conjunction with the Safe 4 vertical mounting brackets (445L-
AF6144).
Figure 12: Shock Isolator
Electrical Installation
Connections
Power Supply
The external voltage supply (+24V DC) must meet the
requirements of IEC 61496-1. In addition, the following
requirements have to be fulfilled:
• A short-term power failure of 20 ms must be bridged by the
power supply.
• The power supply has double insulation between the
primary and the secondary side.
• The power supply is protected against overload.
• The power supply corresponds to the guidelines of the EWG
(industrial environment).
• The power supply corresponds to the Low Voltage
Directives.
• The grounded conductor of the power supply device must
be connected to a grounded conductor PE.
• The maximum deviation of the voltage levels is 24V DC +/-
20%.
445L-AF6140
Standard mounting brackets—supplied with each
light curtain
For side mounting
Adjustable by
± 4°
(Two brackets per kit.)
445L-AF6144
Vertical mounting brackets (optional)
For mounting in the vertical axis of the light curtain
Adjustable by
± 4°
(Two brackets per kit.)
445L-AF6141
180° Mounting, rotation ±90°, for applications
where the mounting angle is not set using the
mounting frame.
(Two brackets per kit.)
29.5
(1.16)
M6x40
M4x16
11
(0.43)
M6x60
M4x12
11
17
(0.67)
135
(5.31)
40.8
(1.60)
70
(2.76)
36.4
(1.43)
37
(1.46)
M6
20
(0.79) dia.
M 6x25 Socket head cap screw, fully threaded
M 6x6.1/14 Lock washer
M 6x6.1/14 Lock washer
Vibration damper
18
(0.71)
20
(0.79)
Double insulation
This part of the insulation provides
supplementary insulation against
hazardous voltage levels.
Motor, etc.
Hazardous voltage level
Basic insulation
Hazardous
voltage level
Hazardous
voltage level
Reinforced
insulation or
double
insulation
Unit 1
Power
Supply
Unit 2
Output (pink
and grey)
Basic insulation
Basic insulation
0V (blue)
+24V (brown)
K1
K1
K2
K2
Guard
Shield
