Rockwell Automation 160 160SSC CopyCat Keypad User Manual
Page 19
How to Program the Drive
2-7
4. Select the desired configuration file from the directory.
Use the Up or Down arrow key to scroll through the file directory.
Or
Directly enter a file number between 1 and 15 and press the Enter key.
5. Press the Enter key.

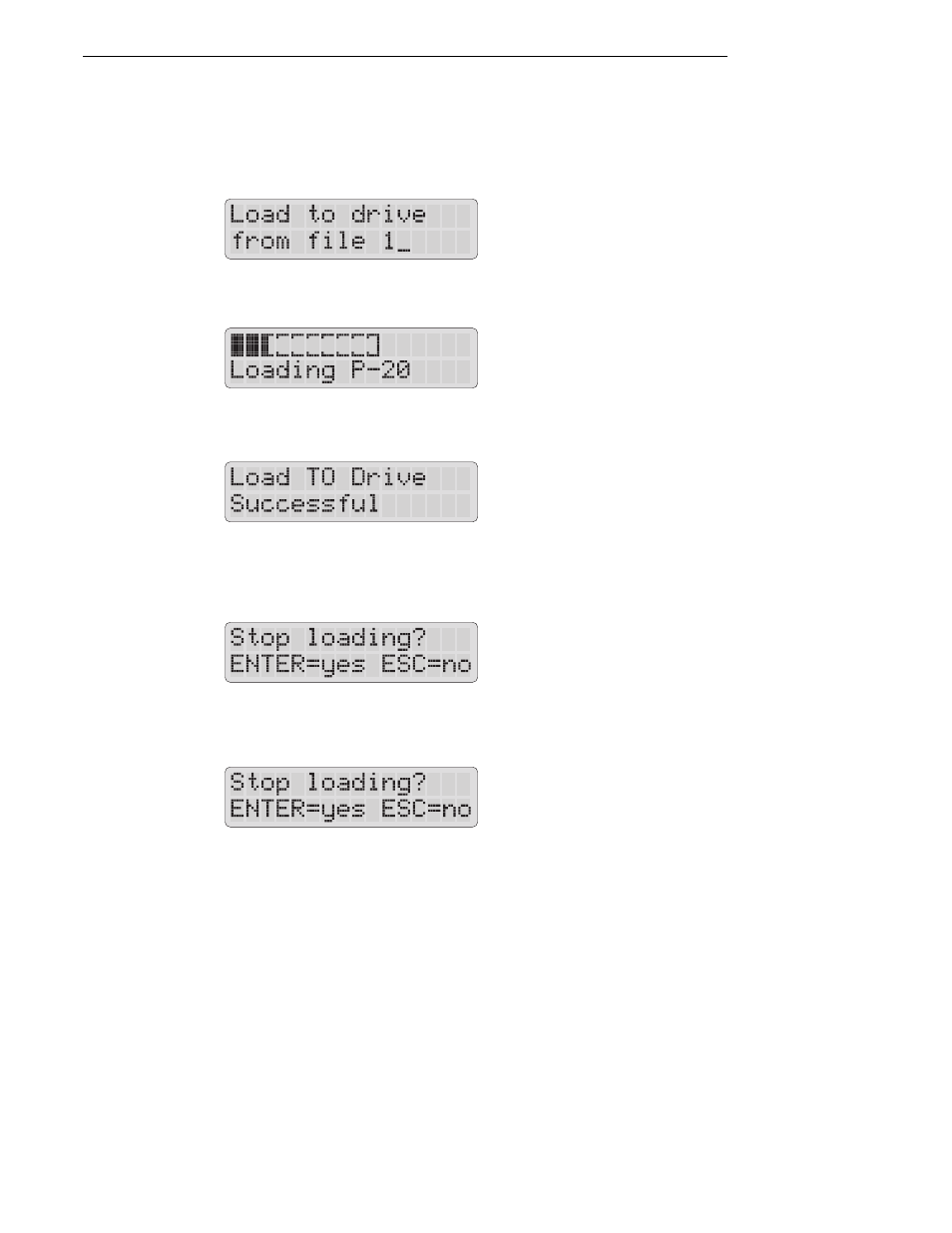

6. Press the Enter key to confirm that you have selected the correct file.
The progress of the load operation is displayed.
The Start command function is disabled during the load operation.
Successful completion of the load operation is displayed.
7. Press the Escape key or Enter key to return to the Load Menu.
Stop a Load TO Drive
1. Press the Escape key to stop a load operation.
2. Press the Enter key to stop loading.
Or
Press the Escape key to continue loading.
Important:
Stopping a Load operation can produce a Drive Configuration File
with undesirable parameter combinations. Correct the problems
and complete Loading or restore parameters to the original values
before Starting the drive.
3. Press the Escape key or Enter key to return to the Load Menu.
