Rockwell Automation 500LG Lighting Contactor Instruction Manual - Manual (Page 8)

Installing Bulletin 500LC Lighting Contactors 8
Publication 500LC–IN001A–EN–P May 2005

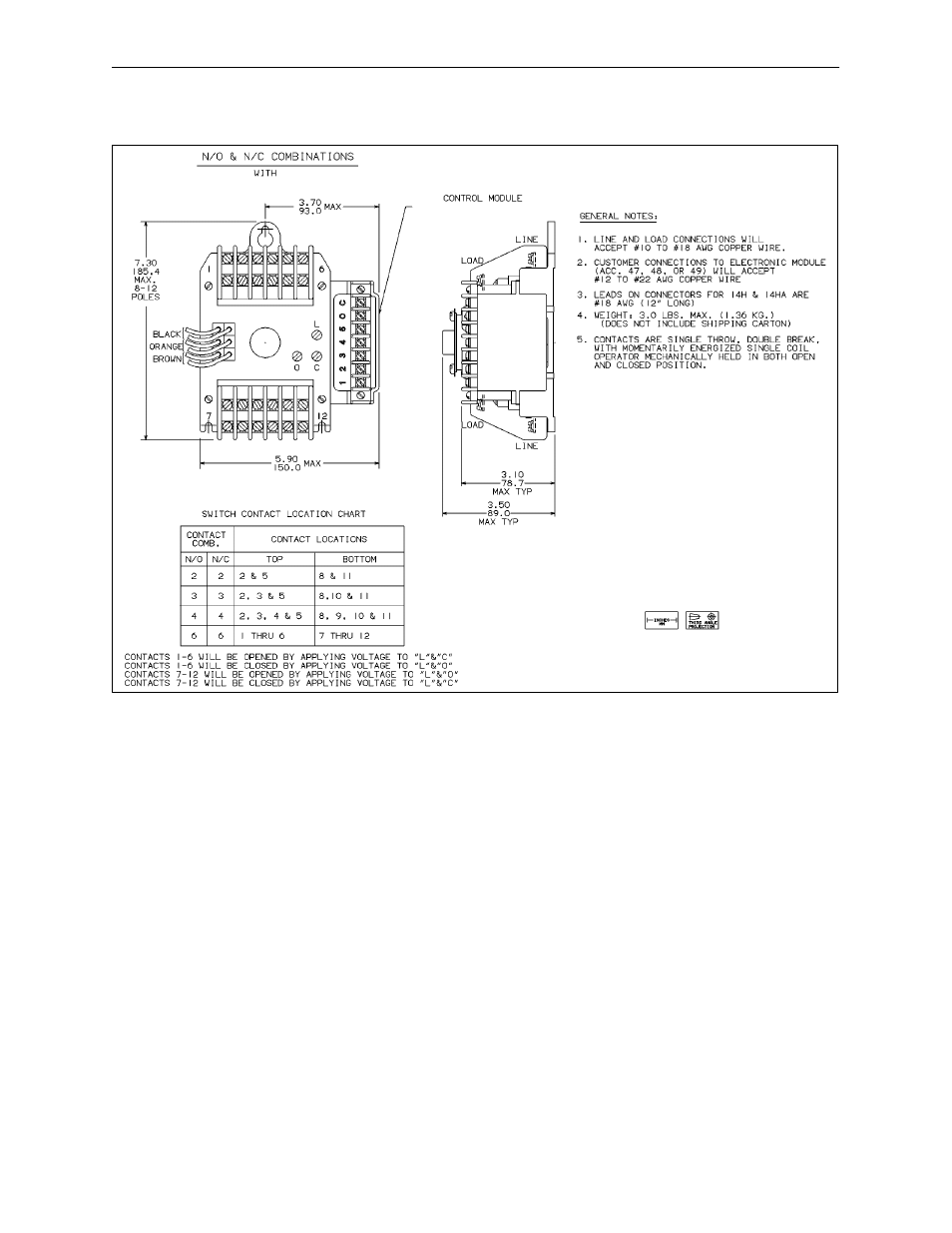

Bulletin 500LC Lighting Contactor containing N/O & N/C
contacts Field Installed Modifications — Drawing F
Kits
Kits are available for modification of Bulletin 500LC Lighting Contactors
to allow changes in pole configuration, voltage, control modules, and
auxiliary contacts.
Replacement Parts
The main contact blocks and the operator coil are available in kit form.
When ordering parts, provide the Serial No. and Catalog No. from the
Bulletin 500LC Lighting Contactor nameplate.
Auxiliary Contacts Kit – Optional Field Installed Modification
500LC–141C, 500LC–142C
These auxiliary contacts are to be installed on the left side of the Bulletin
500LC. The auxiliary contacts operate along with the main contacts to
provide remote indication of the 500LC position (closed or open).
Each auxiliary contact provides a form C, spdt (single pole double throw)
contact rated 10 amps at 277V AC. Mod. 500LC–141C is one auxiliary
contact, and Mod. 500LC–142C is two auxiliary contacts. A connector
with leads is provided for each auxiliary contact See wiring diagram on
page 13 or 14 for contact configuration, additional ratings, and wiring.
