Installing Bulletin 500LC Lighting Contactors
5
Publication 500LC–IN001A–EN–P May 2005

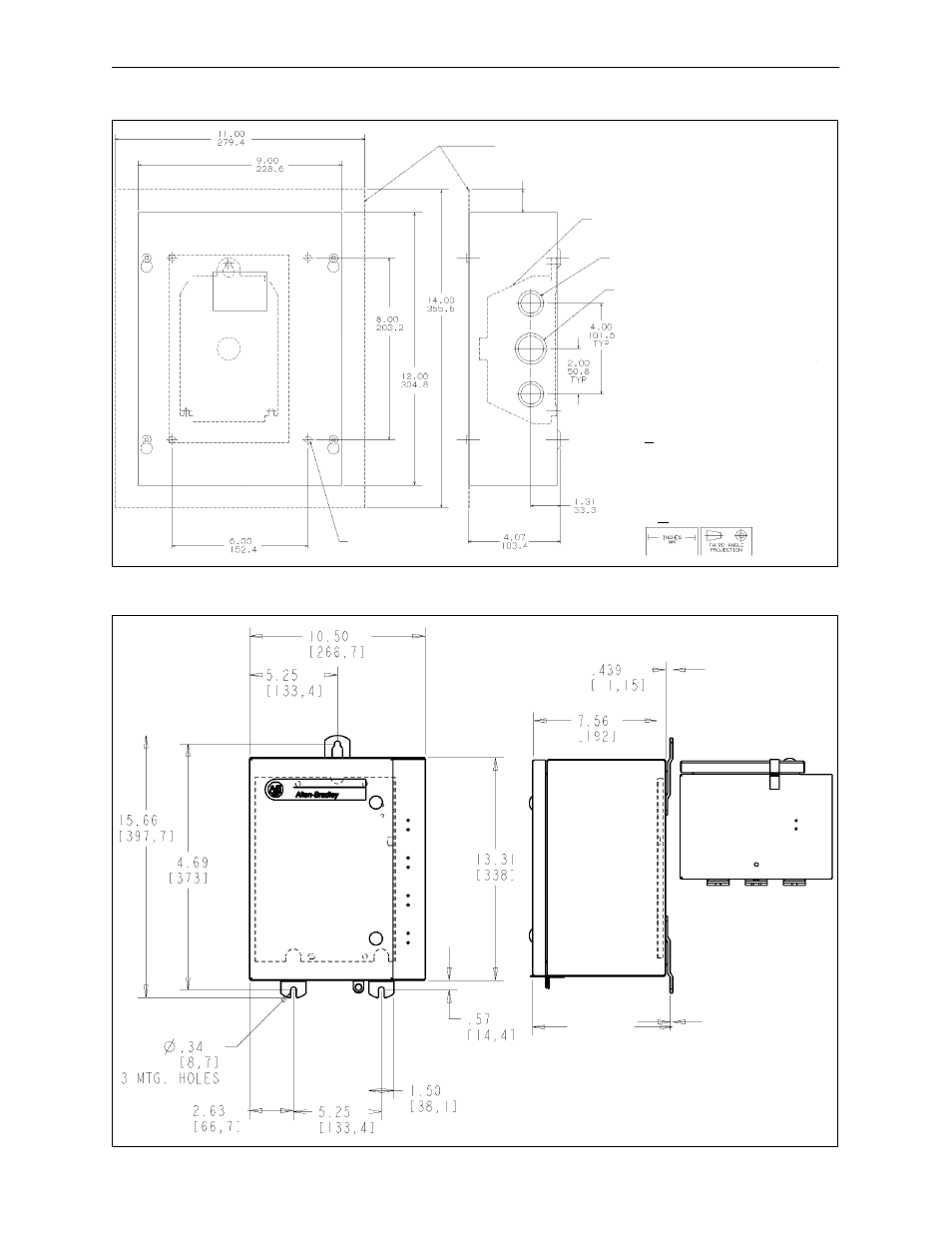

Type 1 Surface & Flush Enclosed Units — Drawing A
SPECIFICATIONS:
1.
NEMA TYPE 1 SCREW COVER, SURFACE
MOUNTED CONSTRUCTED IN
ACCORDANCE WITH UL–508.
2.
MATERIAL: #16 (.060) GAUGE STEEL.
3.
FINISH: ANSI #61 LIGHT GRAY.
4.
NET WEIGHT 7 LBS, 3.2 KG WITHOUT
LIGHTING CONTACTOR.
5.
TOLERANCE OF MOUNTING DIMENSIONS
+.06.
6.
TAPPED MOUNTING HOLES AND (3) 10–32
SCREWS FOR LIGHTING CONTACTOR
MOUNTING ARE PROVIDED.
7.
LIGHTING CONTACTOR MOUNTING &
COVER SCREWS (7) TO BE TORQUED TO
20 + 4 IN. LBS.
MOUNTED LIGHTING CONTACTOR LOCATION
1/2 & 3/4 KNOCKOUTS 2 PLACES ALL 4 SIDES
3/4 & 1.00 KNOCKOUTS ALL 4 SIDES
OPTIONAL FLUSH COVER
1.00 TYP ALL AROUND
.28
7.1 DIA
4 MOUNTING HOLES
Type 3R, 4/4X, & 12 Enclosed Units — Drawing B
BOTTOM VIEW
GENERAL NOTES
1) ALL DIMENSIONS SHOWN IN BRACKETS ARE IN MILLIMETERS.
2) ALL DIMENSIONS ARE APPROXIMATE AND NOT INTENDED
FOR MANUFACTURING PURPOSES.
DOOR
PADLOCK
FEATURE
.16
[ 4 ]
8.56
[ 217,4 ]
