Rockwell Automation 500LG Lighting Contactor (Mechanically and Electrically Held) User Manual
Page 3

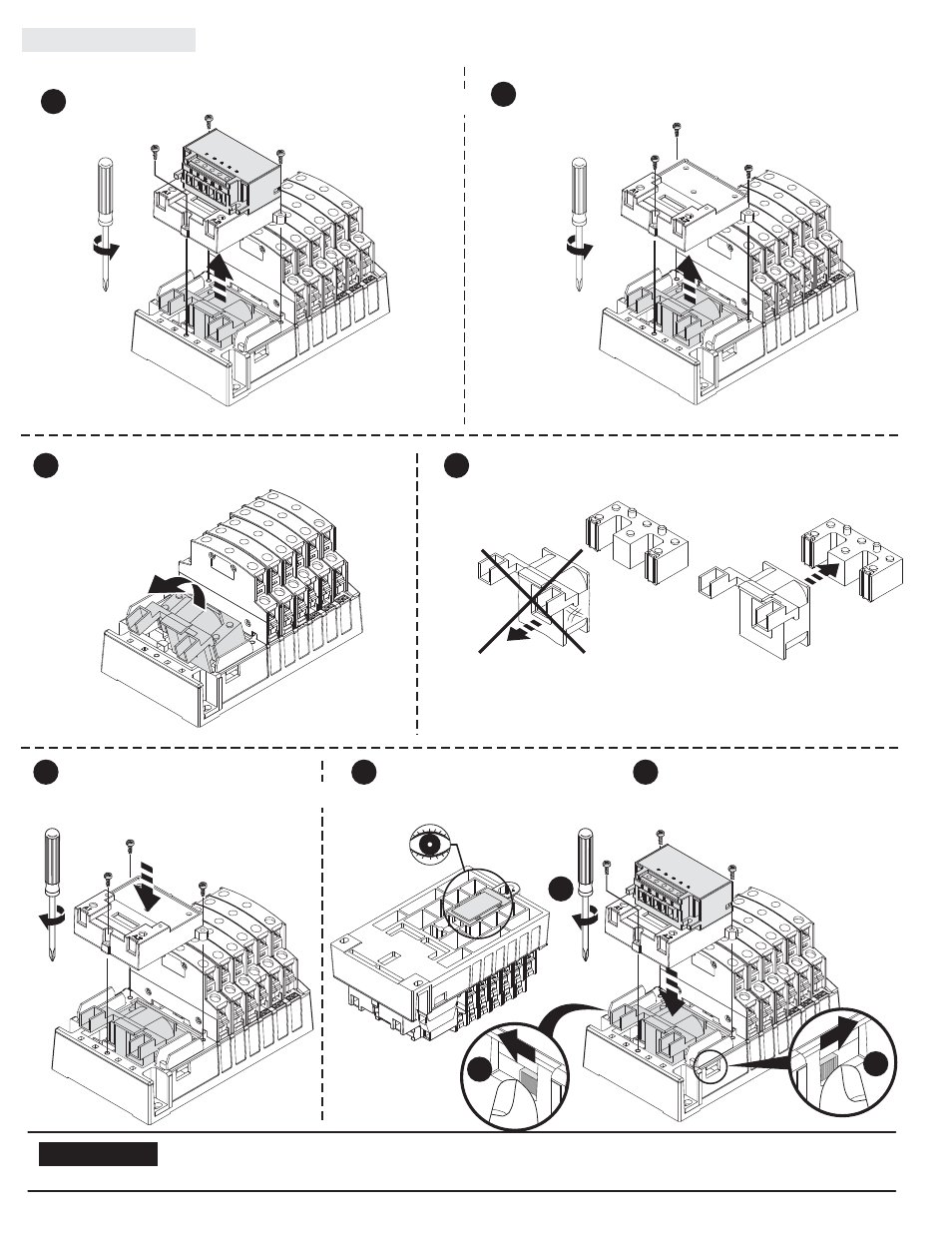

Coil Replacement
3
(3)
500LG
Old
New
Remove old coil assembly.
5
For electrically-held, re-install coil
assembly and cover.
6
6
For mechanically-held contactor,
re-install the control module and cover.
Check that the latch and latch cover
at the bottom are still properly installed.
7
7
Operate the contactor manually, using
manual operating tabs on the side.
The mechanically-held contactor must
latch when tabs are pushed forward and
must unlatch when pushed again.
4
Replace with new coil.
1
For mechanically-held contactors, remove all wires from the
control module and remove the coil cover along with the
control module.
2
For electrically-held contactors, remove the coil cover.
500LG
or
For mechanically-held contactors, latch and control module must be used together to ensure proper operation. Failure to do so will
void warranty. Follow the control module instruction sheet 42052-193-01.
7 - 12 lb-in
7 - 12 lb-in
500LG
500LG
OR
NOTICE
7
