Rockwell Automation 500LG Lighting Contactor (Mechanically and Electrically Held) User Manual
Page 2

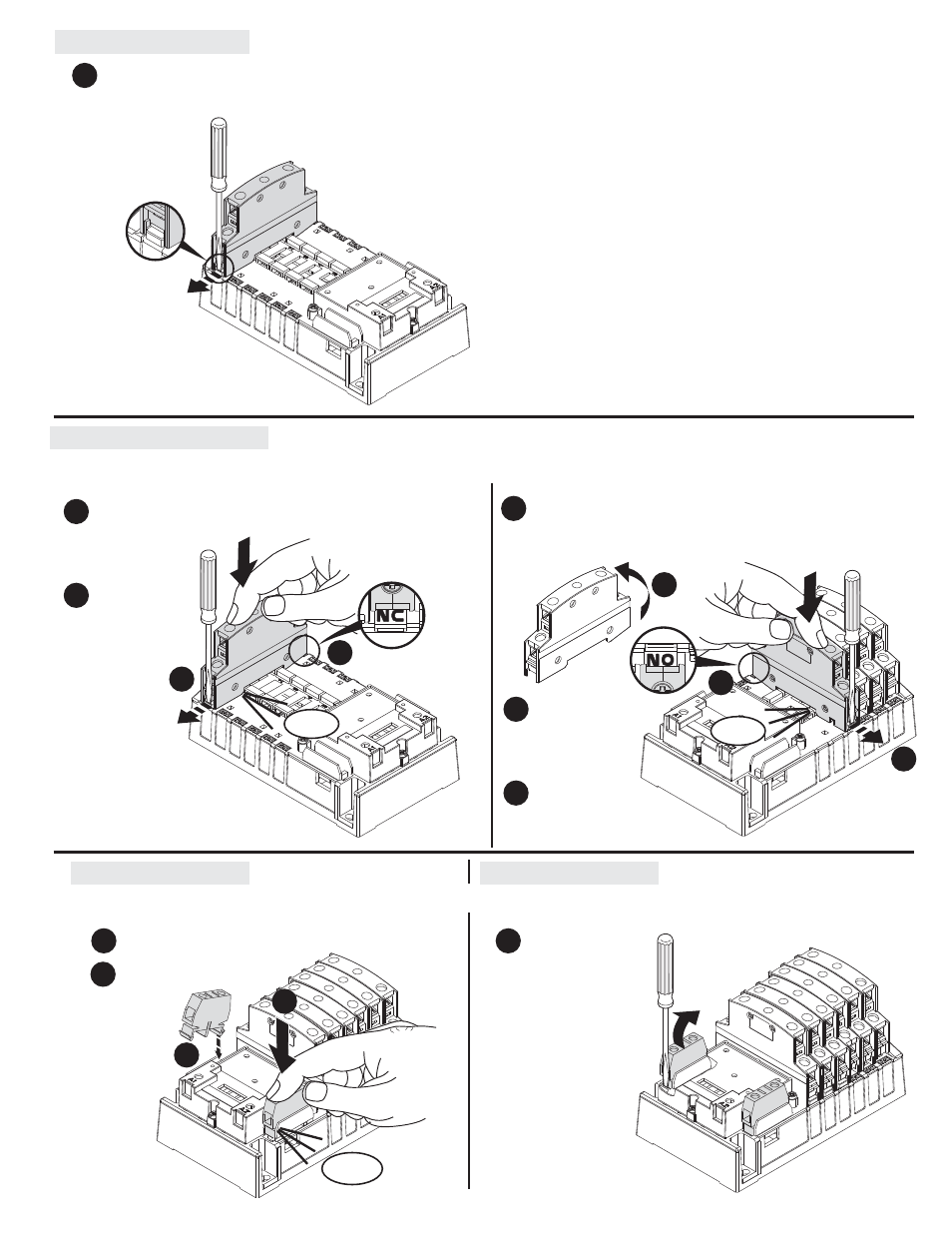

Power Pole Removal
N.C. Power Pole Installation
Power Pole Installation
N.O. Power Pole Installation
1
1
1
CLICK
3
2
2
(2)
500LG
500LG
500LG
CLICK
Auxiliary Installation
Auxiliary Removal
CLICK
1
2
1
500LG
500LG
Insert one end of auxiliary.
1
Slide flat screwdriver
into clip of auxiliary
contact and lift.
2
Snap other end in place.
Remove power pole block by inserting screwdriver into the plastic clip
and pull it out to release the power pole block from the base.
Install the power pole
block by sliding
foot into slot from
the N.C. indicator
side.
1
1
Rotate the power pole block
180 degrees to convert
the contact blocks from
N.C. to N.O.
2
Pull clip, position
power pole block
onto the base,
and release.
2
Install the power pole
block by sliding
foot into slot from
the N.O. indicator
side.
3
Pull clip, position
power pole block
onto the base,
and release.
A 3-wire mechanically-held lighting contactor utilizes one N.O. and one N.C. auxiliary contacts. A 2-wire mechanically-held utilizes one
N.C. auxiliary contact installed on the right side.
Clip
