Multipulse Bridge Assembly Parts Kits 3
Converter Diode
Replacement Kit Where This Kit Is Used
You can use this kit to replace any of the converter diodes that are located in
the converter bay of your 1336 PLUS II Multipulse or H-Frame 1336
IMPACT drive.
Diodes covered by these instructions are listed in the following table:
Table 2. Converter Diode Part Numbers
What This Kit Contains
This kit contains a replacement converter diode and these instructions. This
kit does Not contain the thermal compound Required to mount a new diode.
Locating the Converter Diodes

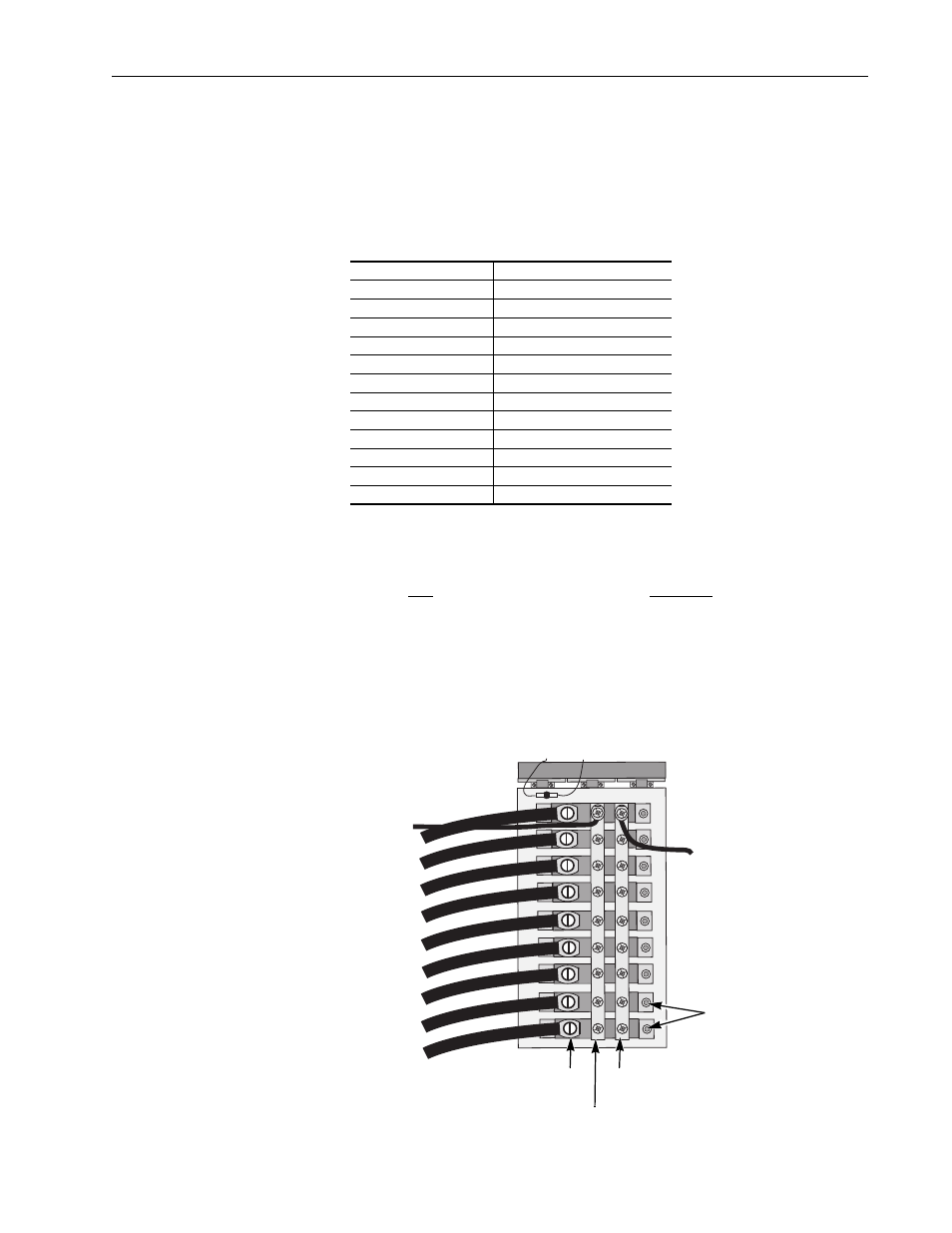

The converter diodes are located on the Multipulse bridge heatsink
assembly in the converter bay of your drive. A typical heatsink assembly is
shown in the following illustration. Converter diode locations may vary on
some models.
Replacement Kit No. Vendor Component Part No.
1336-BD-SP1A DD89N16K
1336-BD-SP2A DD104N16K
1336-BD-SP3A DD151N16K
1336-BD-SP4A DD260N16K
1336-BD-SP5A DD350N16K
1336-BD-SP6A DD600N18K
1336-BD-SP7A DZ1070N18K
1336-BD-SP8A DD2228N16T
1336-BD-SP9A ND89N16K
1336-BD-SP10A ND171N16K
1336-BD-SP11A ND260N16K
1336-BD-SP12A DZ600N16K
Fan
AK
Terminal
K
Terminal
A
Terminal
Converter Diodes
