8

PowerFlex® DC Drive - Frame B AC Current Transducers

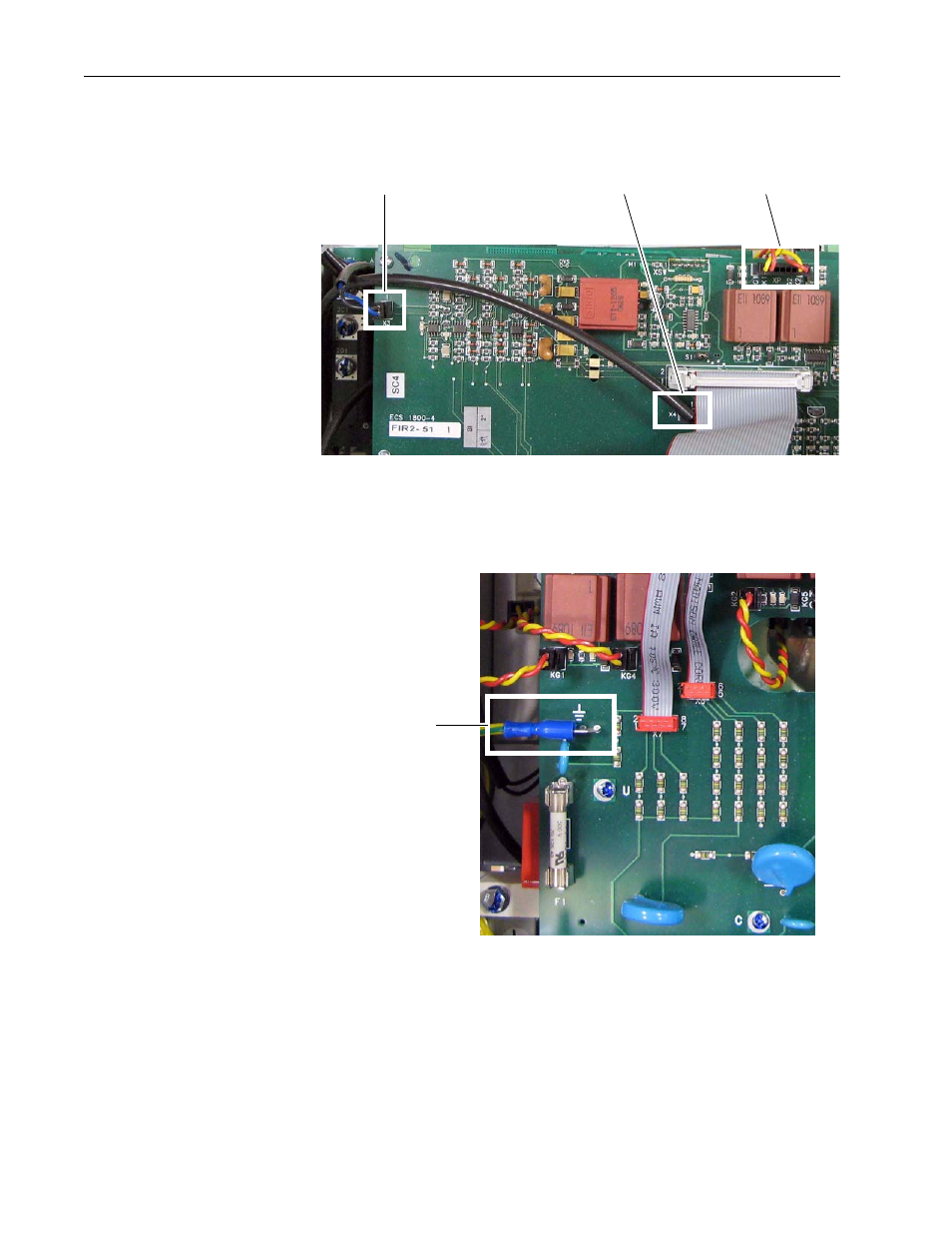

9. Remove the cables from connectors X3, X4 and XP on the Pulse

Transformer board.

10. Remove the ground connection at the left side of the Pulse Transformer

board.

Remove cable

Remove cable

Remove cable

Remove ground
connection
