Step 5: install the new ac current transducers – Rockwell Automation 20P PowerFlex DC Drive - Frame B AC Current Transducers User Manual
Page 12
12
PowerFlex® DC Drive - Frame B AC Current Transducers
3. Slide the U and V phase bus bars that pass through the AC Current
Transducers up and out of the drive.

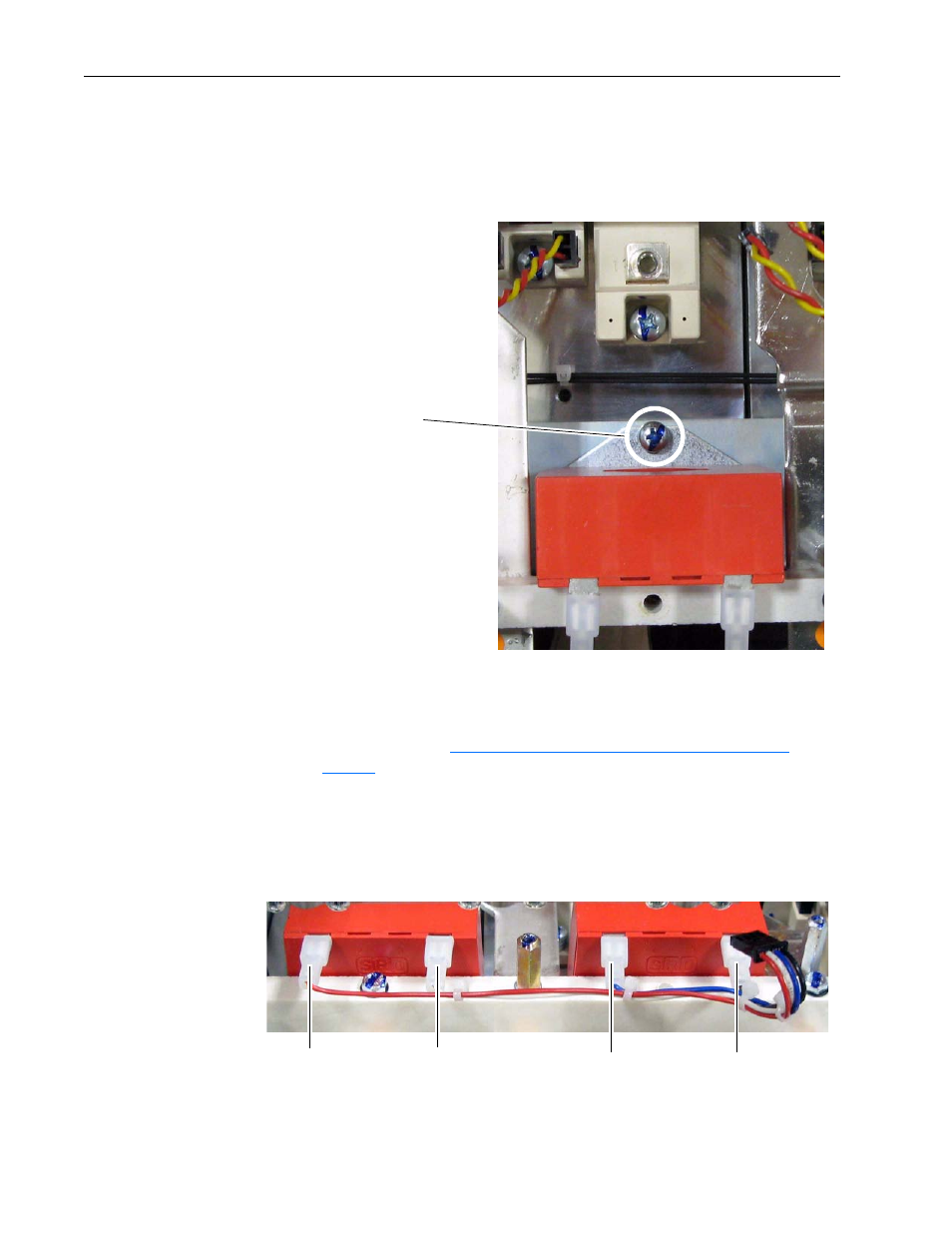

4. Remove the screw and washer that secures each of the AC Current
Transducers to the drive frame and remove the AC Current Transducers.
Step 5: Install the New AC
Current Transducers
Install the new AC Current Transducers in reverse order of removal as
detailed in Step 4:
Remove the Existing AC Current Transducers on
.
•
Note the color and location of each of the four wires connected to the AC
Current Transducers to ensure that each wire is properly connected
during installation. Use cable ties to bundle wires as shown below.
Remove screw
and washer
Red wire
White wire
Blue wire
Black wire
